Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12

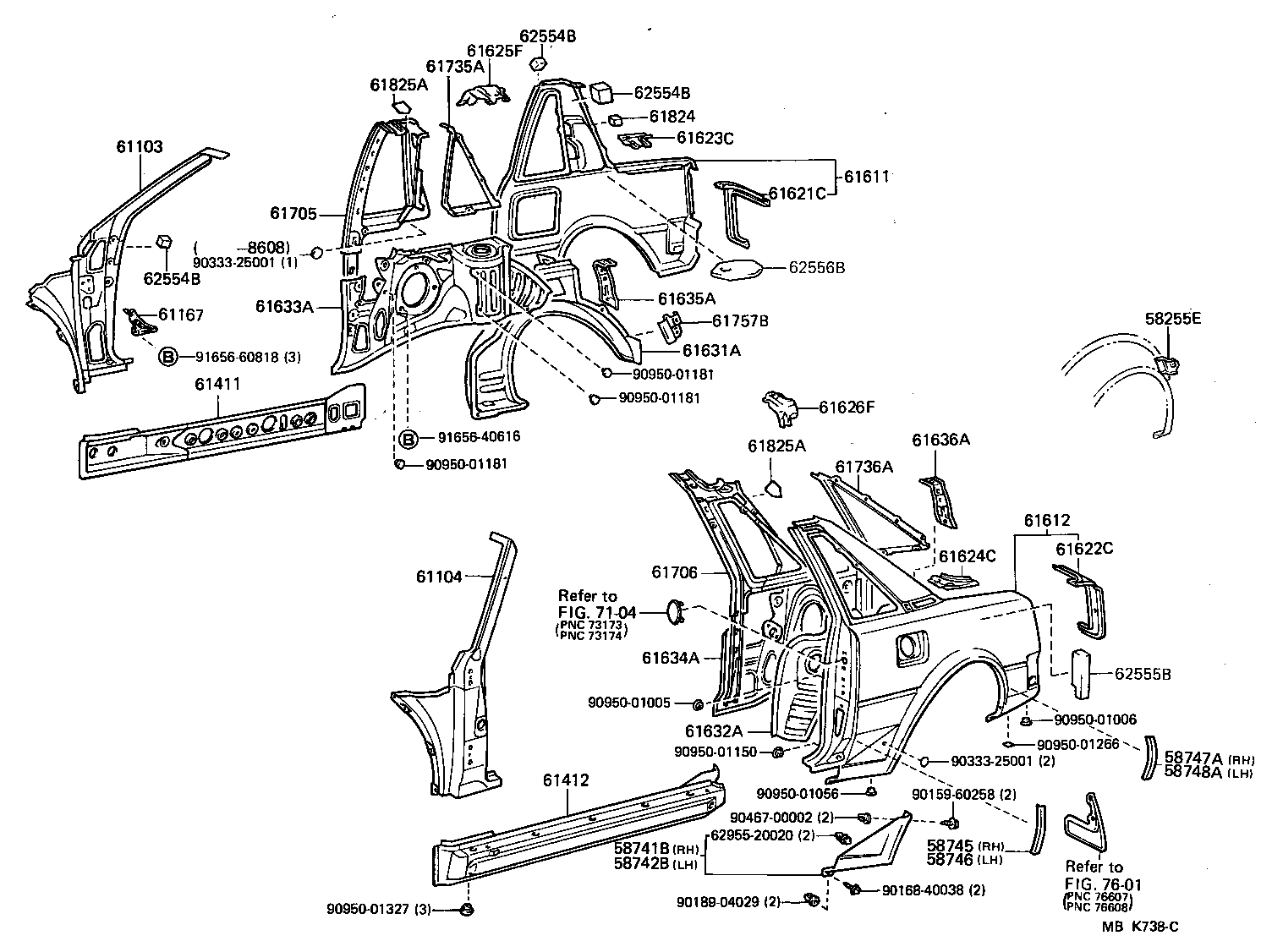

Side Member

41 part groups · 2 illustrations

PNC	Description
58255E	Bracket, Air Cleaner
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
58745	Protector, Quarter Panel, Front RH
58746	Protector, Quarter Panel, Front LH
58747A	Protector, Quarter Panel, Rear RH
58748A	Protector, Quarter Panel, Rear LH
61103	Pillar Sub-assy, Front Body, RH
61104	Pillar Sub-assy, Front Body, LH
61167	Bracket, Instrument Panel TO Cowl Side, RH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621C	Trough, Luggage Compartment Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61623C	Trough, Luggage Compartment Door Opening, Front RH
61624C	Trough, Luggage Compartment Door Opening, Front LH
61625F	Extension, Quarter Panel, Upper RH
61626F	Extension, Quarter Panel, Upper LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61705	Panel Sub-assy, Roof Side, Inner RH
61706	Panel Sub-assy, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61757B	Retainer, Deck Side Trim, Lower
61825A	Plate, Noise Control, NO.2
62554B	Pad, Pillar, NO.4
62555B	Pad, Pillar, NO.5
62556B	Pad, Pillar, NO.6

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
