Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe
Discontinued model
Data version 1989-12

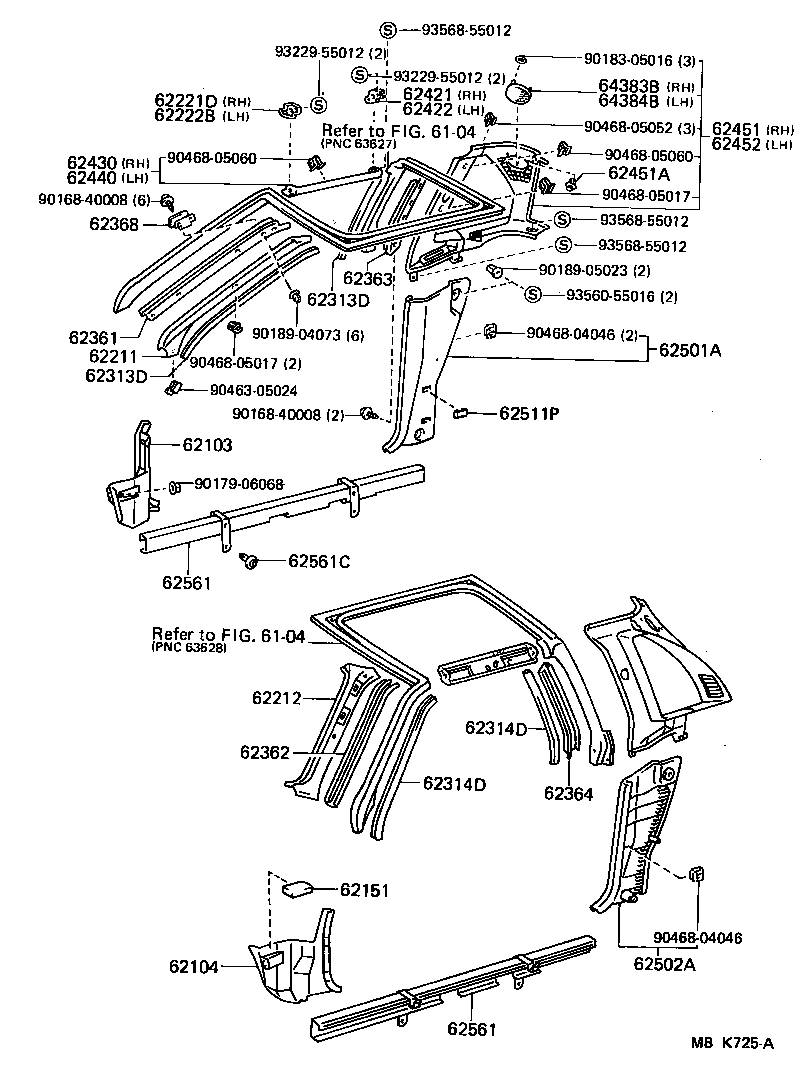

Inside Trim Board & Door Opening Trim Moulding
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62151 | Pad, Cowl Side Silencer, NO.1 |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62361 | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362 | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 62363 | Retainer, Roof Side Rail Weatherstrip, Rear RH |
| 62364 | Retainer, Roof Side Rail Weatherstrip, Rear LH |
| 62367 | Clip, Door Window Glass, NO.1 |
| 62368 | Clip, Door Window Glass, NO.2 |
| 62421 | Cover, Center Pillar Garnish, RH |
| 62422 | Cover, Center Pillar Garnish, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62451 | Garnish, Roof Side Inner, RH |
| 62451A | Clip, Side Garnish |
| 62452 | Garnish, Roof Side Inner, LH |
| 62501A | Panel Assy, Quarter Trim, RH |
| 62502A | Panel Assy, Quarter Trim, LH |
| 62511P | Plug, Quarter Trim Board |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62561C | Clip (FOR ROCKER PANEL INNER PROTECTOR) |
| 64383B | Grille, Rear Speaker, RH |
| 64384B | Grille, Rear Speaker, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
