Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

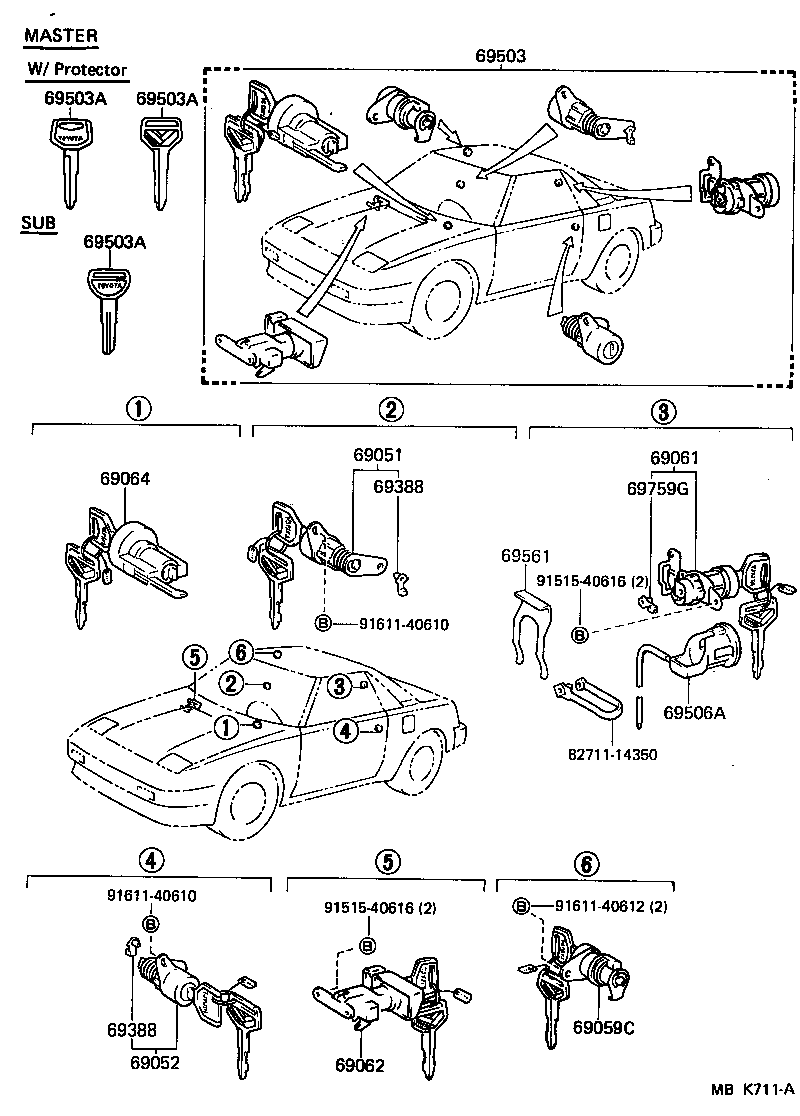

Figure MBH935A MBH935A 1984-12 → 1986-08 Figure MBK711A MBK711A 1986-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69059C Cylinder & Key Set, Removable Roof Lock
69061 Cylinder & Key Set, Luggage Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69506A Hose Sub-assy, Luggage Door Lock Cylinder
69561 Retainer, Luggage Compartment OR Back Door Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
