Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

11 part groups · 2 illustrations

Illustrations

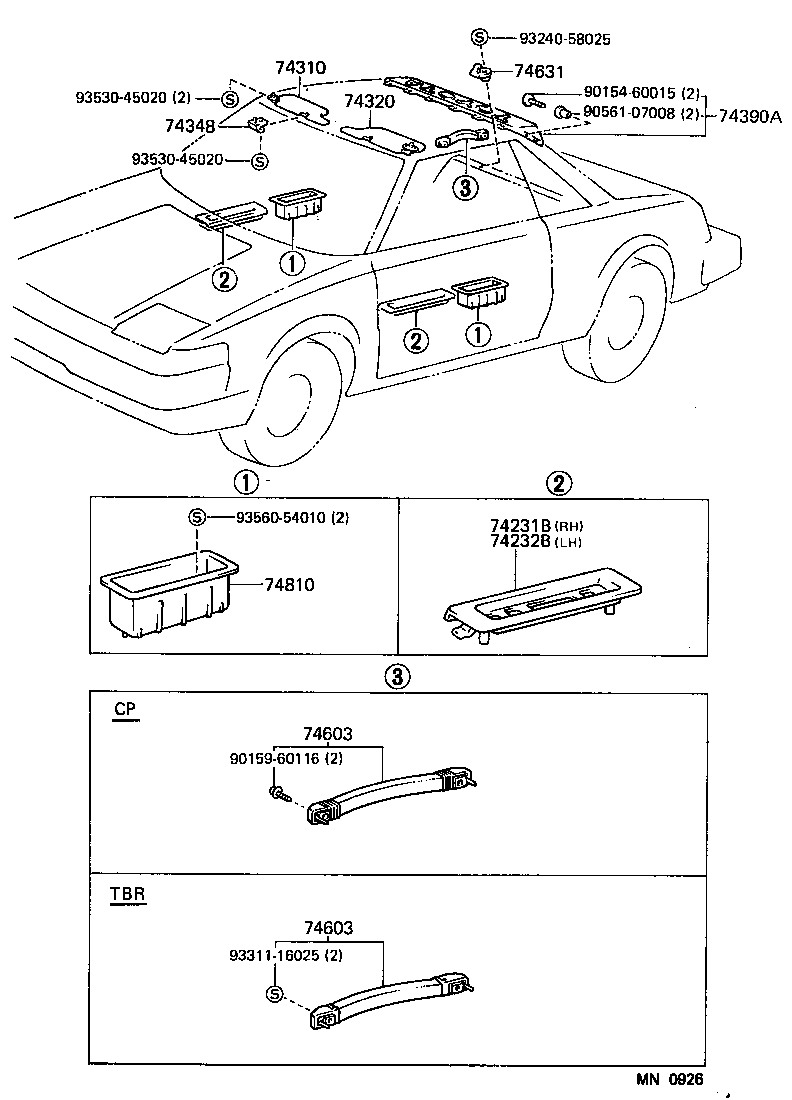

Figure MBH691C MBH691C 1984-12 → 1986-08 Figure MN0926 MN0926 1986-08 → —

Part groups

PNCDescription
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74231B Panel, Door Armrest Base, RH
74232B Panel, Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74390A Visor Assy, Rear, Outer
74603 Grip Sub-assy, Assist, Front
74631 Hook, Coat, A
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
