Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 5 illustrations

Illustrations

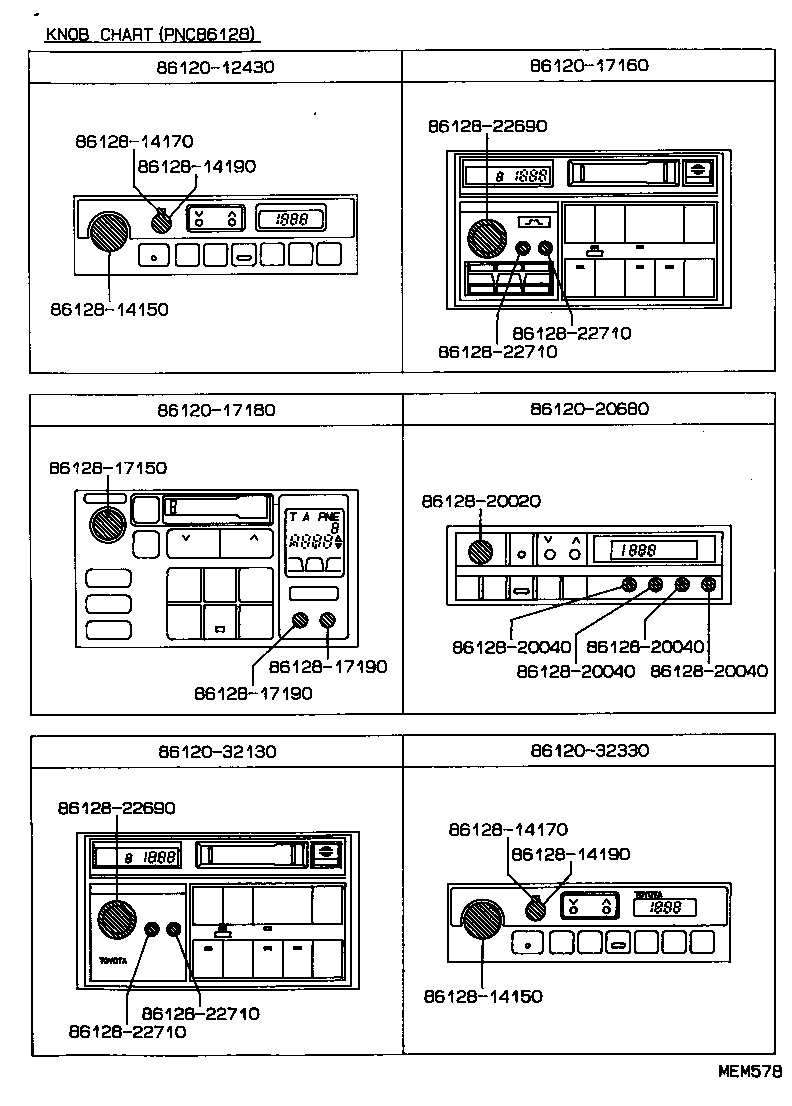

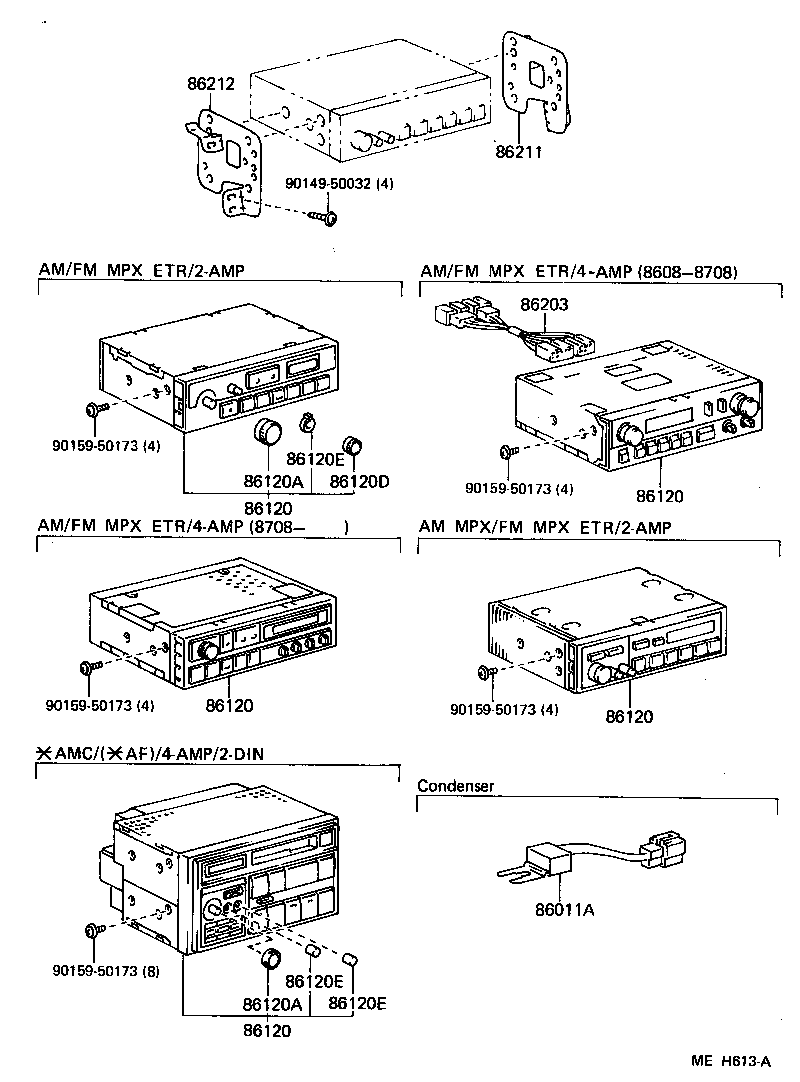

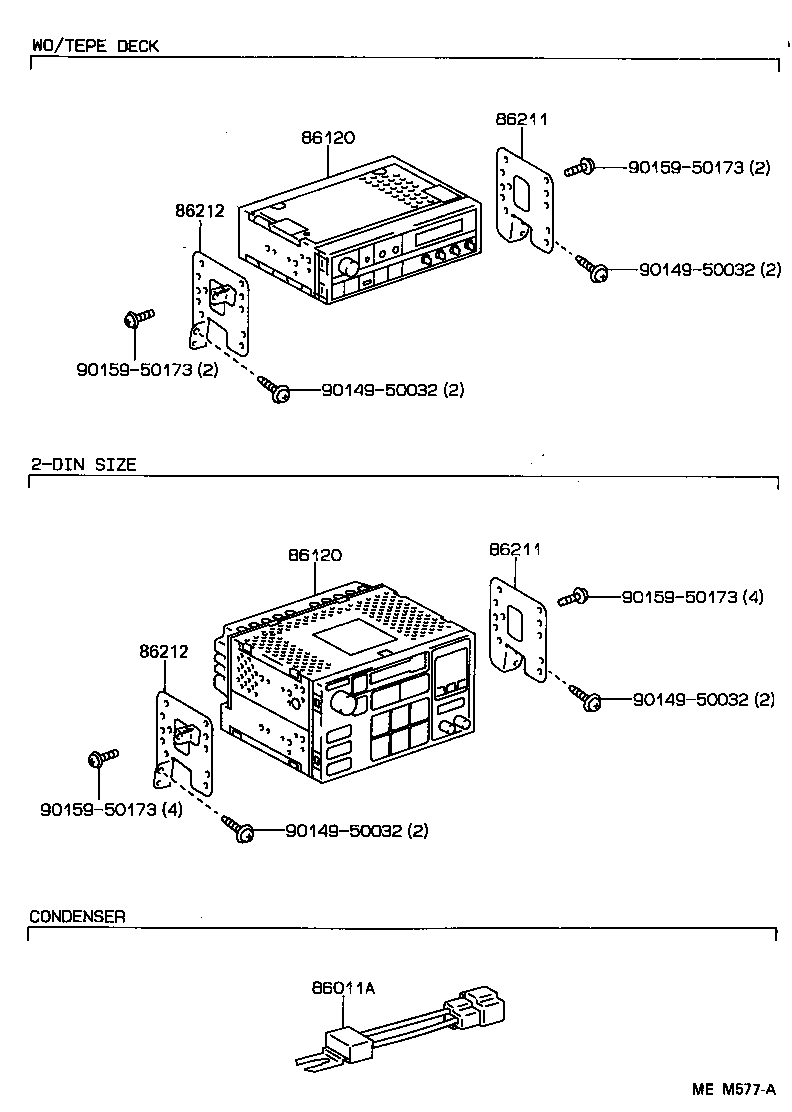

Figure MEF591 MEF591 1984-12 → 1986-08 Figure MEH613A MEH613A 1986-08 → 1988-03 Figure MEM577A MEM577A 1988-03 → — Figure MEM578 MEM578 1988-03 → — Figure MEM579A MEM579A 1988-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86128 Knob, Radio Receiver
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
