Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 2 illustrations

Illustrations

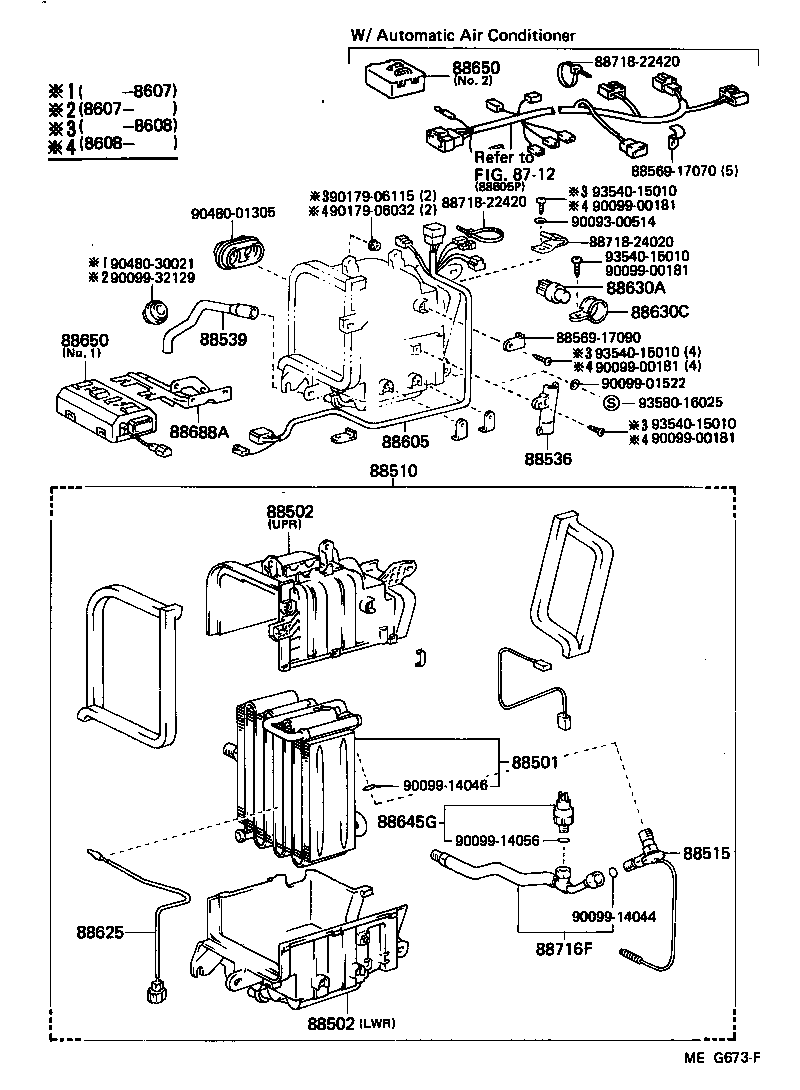

Figure MEH098E MEH098E 1984-12 → — Figure MEG673F MEG673F 1985-08 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88569 Clamp (FOR COOLER RELAY)
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630C Bracket, Cooler Relay
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
