Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11

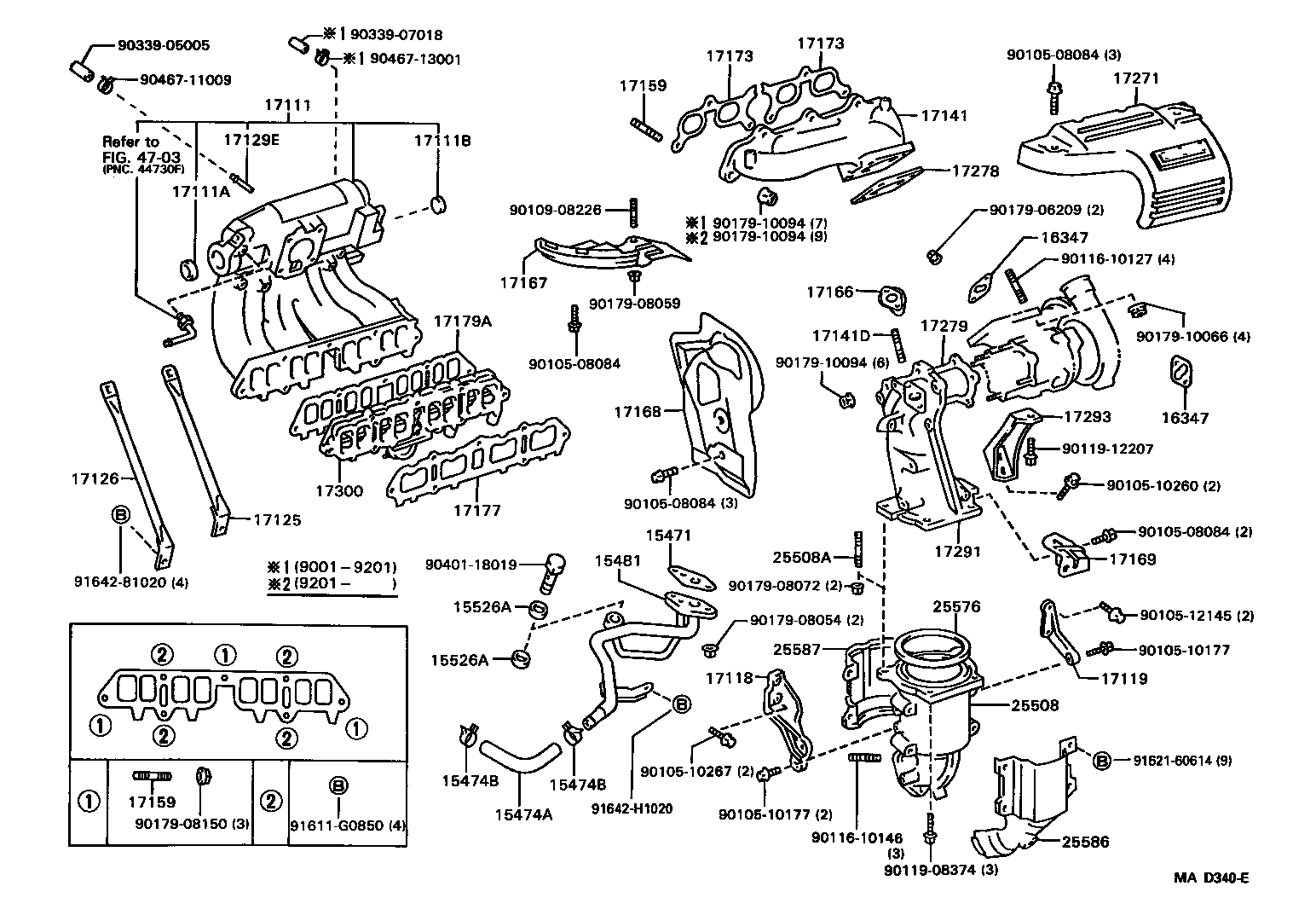

Manifold

44 part groups · 3 illustrations

PNC	Description

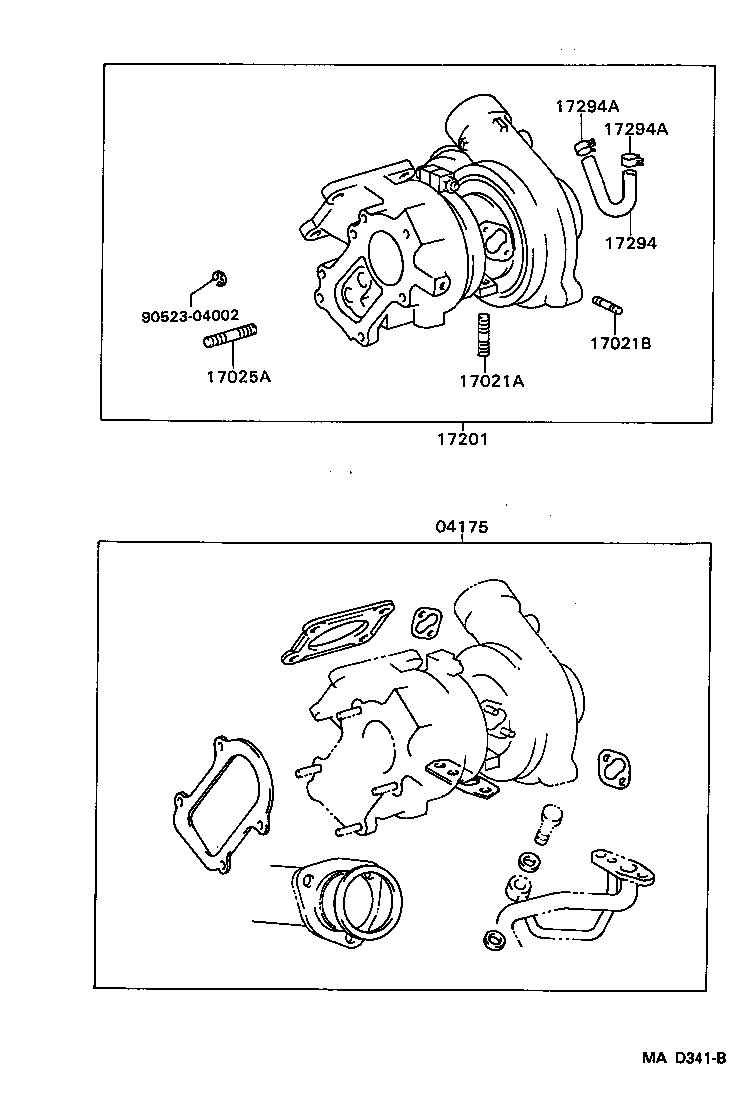

04175	Gasket Kit, Turbocharger
15471	Gasket, Turbo Oil Inlet
15474A	Hose, Turbo Oil Outlet
15474B	Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15481	Pipe, Turbo Oil, NO.1
15526A	Gasket, Joint(FOR TURBO OIL PIPE)
16347	Gasket, Water By-pass
17021A	Bolt, Stud(FOR BEARING HOUSING)
17021B	Bolt, Stud
17025A	Bolt, Stud(FOR TURBINE HOUSING)
17111	Manifold, Intake
17111A	Plug, NO.1
17111B	Plug, NO.2
17118	Stay, Manifold
17119	Stay, Manifold, NO.2
17125	Stay, Surge Tank, NO.1
17126	Stay, Surge Tank, NO.2
17129E	Union, NO.3
17141	Manifold, Exhaust
17141D	Bolt, Stud(FOR OXYGEN SENSOR)
17152	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17166	Insulator, Exhaust Manifold Heat,NO.4
17167	Insulator, Exhaust Manifold Heat, NO.1
17168	Insulator, Exhaust Manifold Heat, NO.2
17169	Insulator, Exhaust Manifold Heat, NO.3
17173	Gasket, Exhaust Manifold TO Head
17177	Gasket, Intake Manifold TO Head, NO.1
17179A	Gasket, Intake Manifold, NO.2
17201	Turbocharger Sub-assy
17271	Insulator, Turbo, NO.1
17278	Gasket, Turbo TO Exhaust Manifold
17279	Gasket, Turbine Outlet Elbow
17291	Elbow, Turbine Outlet
17293	Stay, Turbocharger
17294	Hose, Actuator
17294A	Clip(FOR ACTUATOR HOSE)
17300	Valve Assy, Intake Air Control
25508	Converter Sub-assy, Manifold
25508A	Bolt, Stud(FOR MANIFOLD CONVERTER)
25576	Gasket, Manifold Converter
25586	Insulator, Manifold Converter, NO.1
25587	Insulator, Manifold Converter, NO.2
25591	Bracket, Manifold Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
