Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

31 part groups · 4 illustrations

Illustrations

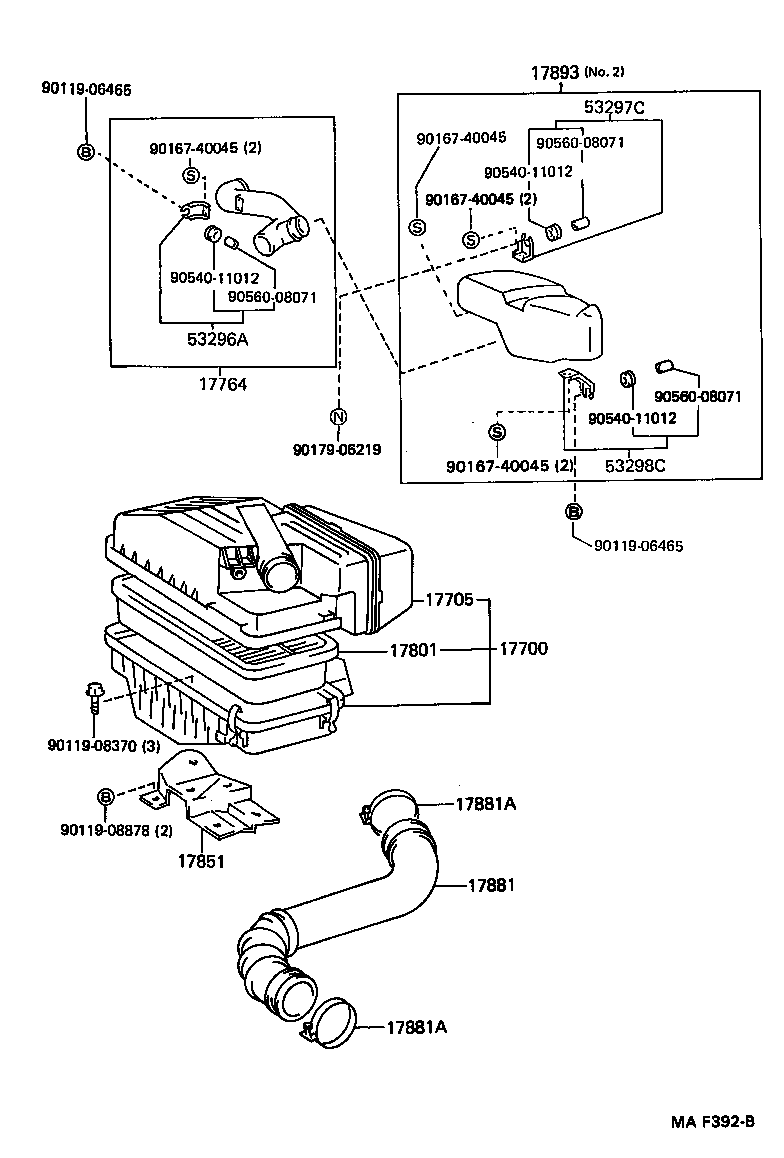

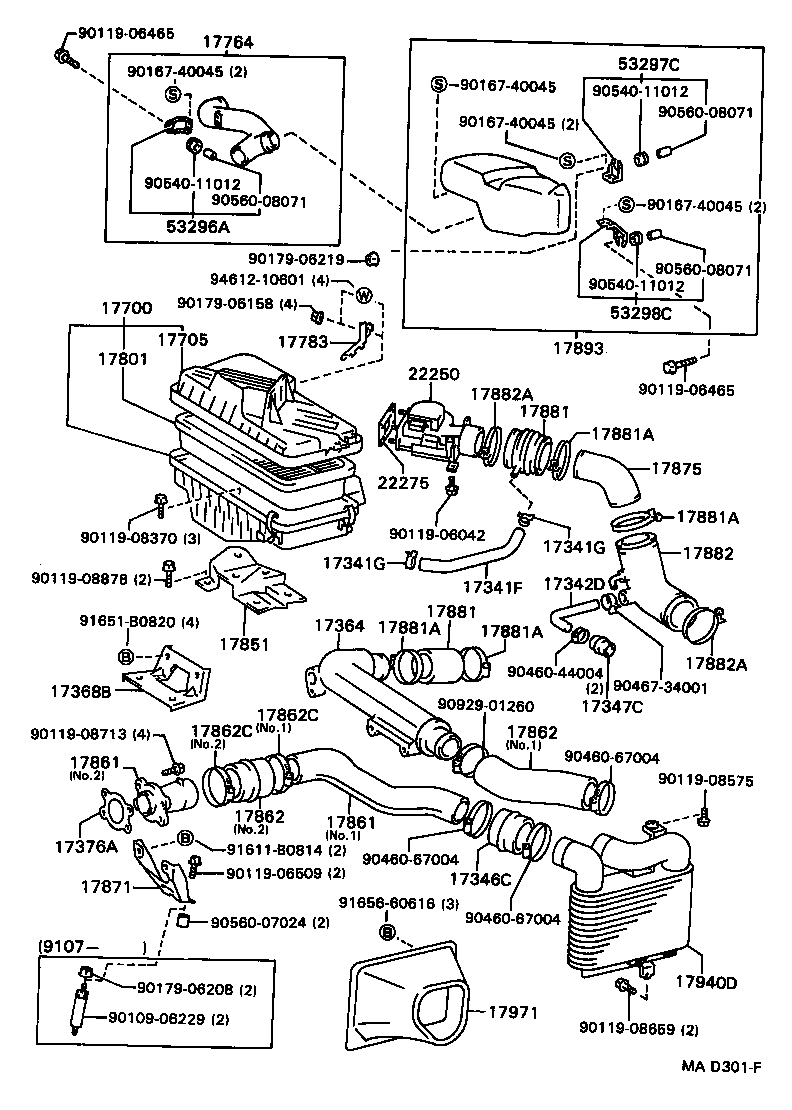

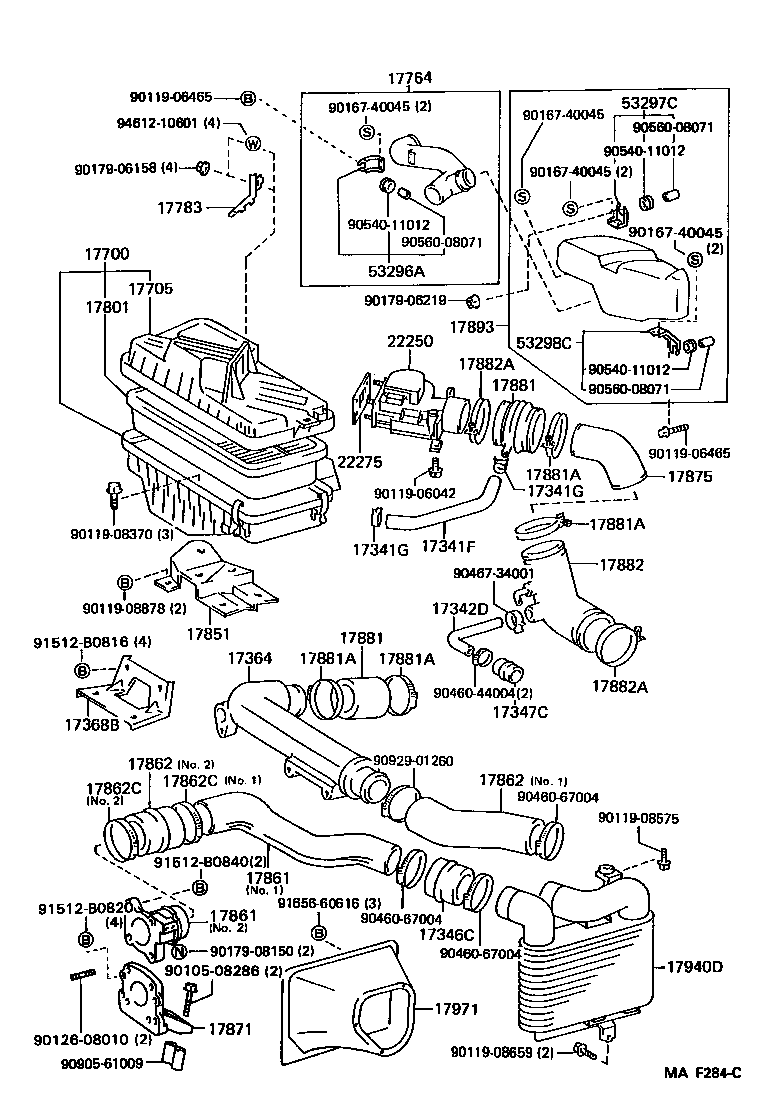

Figure MAD303C MAD303C 1990-01 → 1992-01 Figure MAF392B MAF392B 1992-01 → — Figure MAD301F MAD301F 1990-01 → 1992-01 Figure MAF284C MAF284C 1992-01 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17346C Hose, NO.6
17347C Hose, Air, NO.7
17364 Tube, Air, NO.4
17368B Support, Air Tube
17376A Gasket, Air Tube
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17764 Duct, Air Cleaner
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17862 Connector, Intake Air, NO.2
17862C Clamp(FOR INTAKE AIR CONNECTOR NO.2)
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17940D Intercooler Assy
17971 Inlet, Cool Air, NO.1
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
53296A Retainer, Cool Air Intake Duct
53297C Retainer, Cool Air Intake Duct, NO.2
53298C Retainer, Cool Air Intake Duct, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
