Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

12 part groups · 5 illustrations

Illustrations

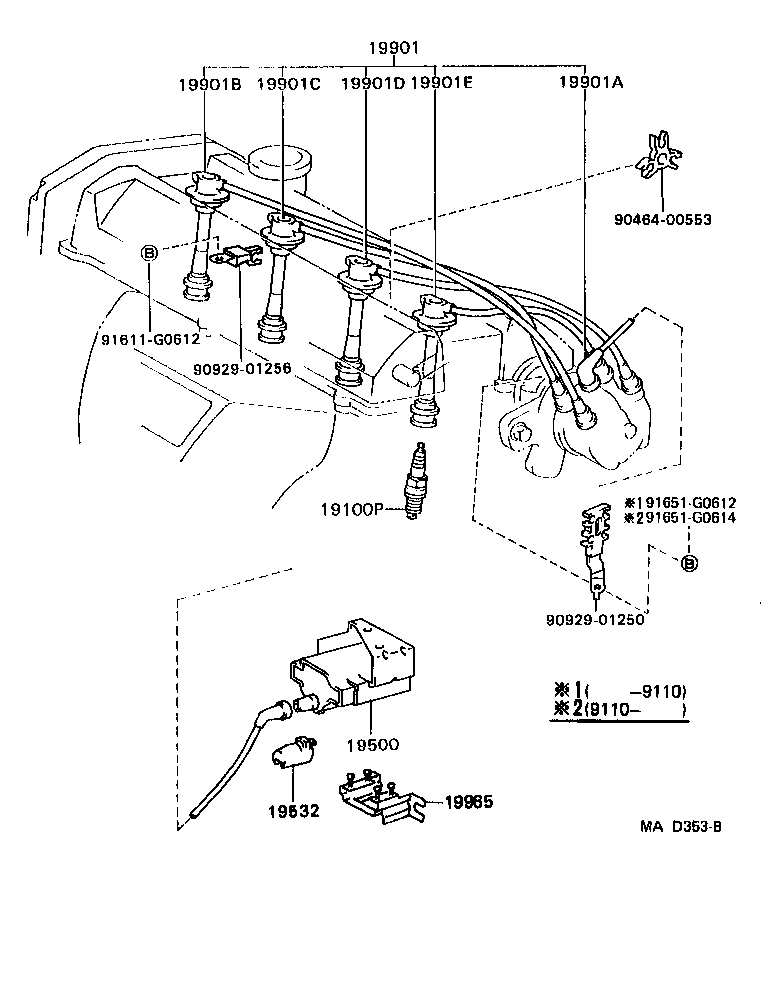

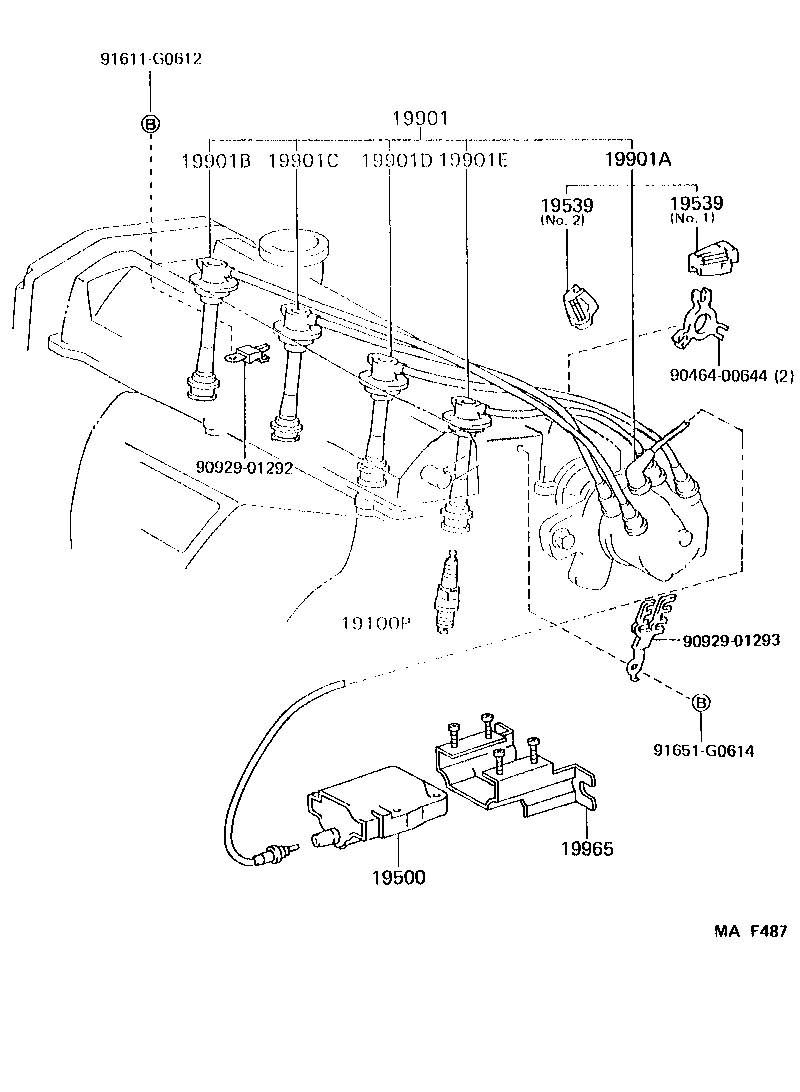

Figure MAD352 MAD352 1990-01 → 1992-01 Figure MAE871A MAE871A 1992-01 → 1993-09 Figure MAG858 MAG858 1993-09 → — Figure MAD353B MAD353B 1990-01 → 1992-01 Figure MAF487 MAF487 1992-01 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
