Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

18 part groups · 6 illustrations

Illustrations

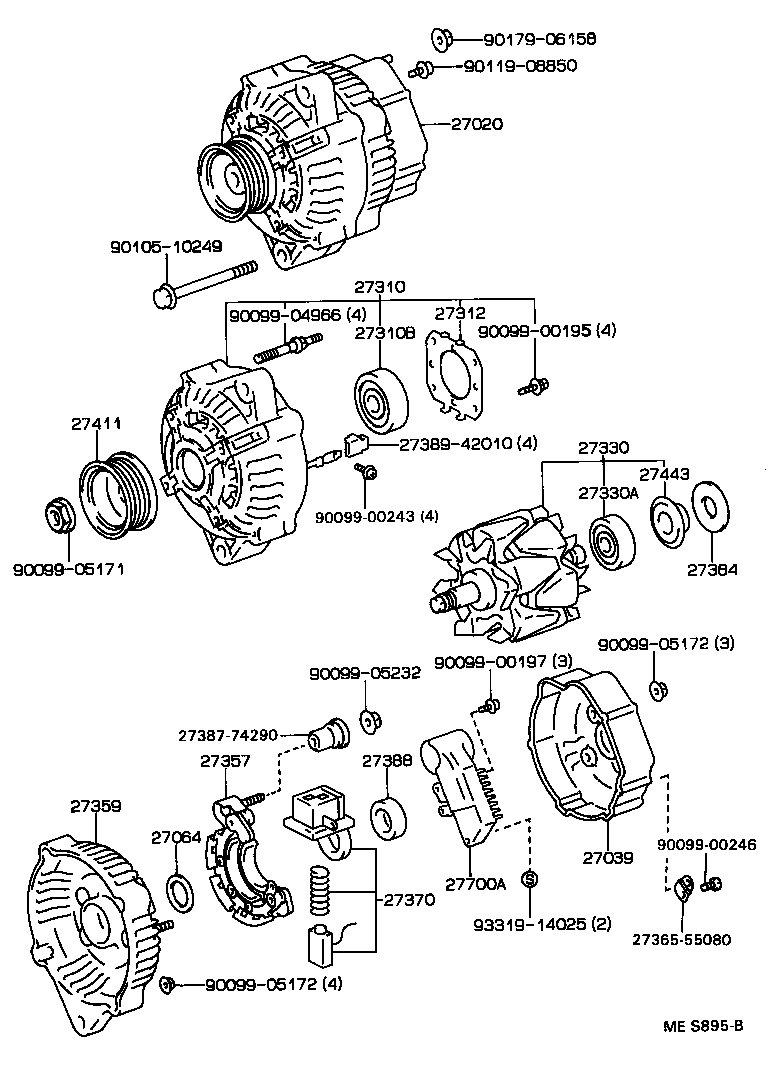

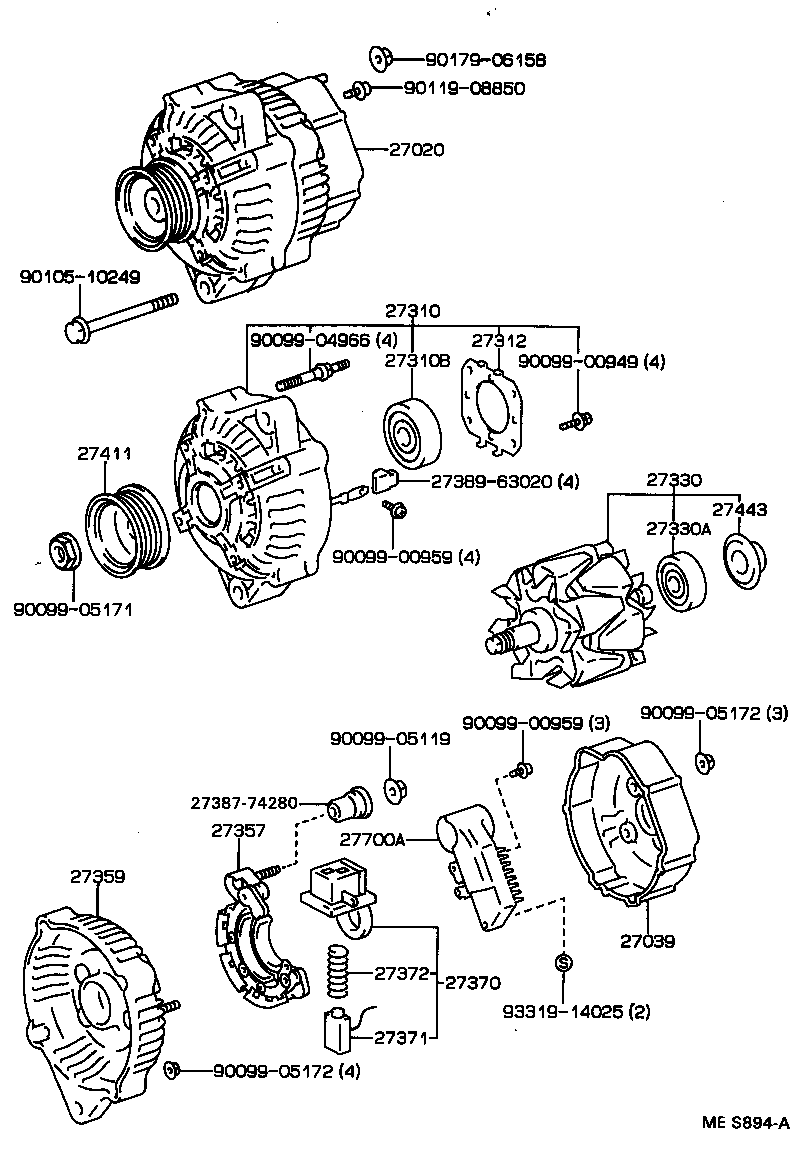

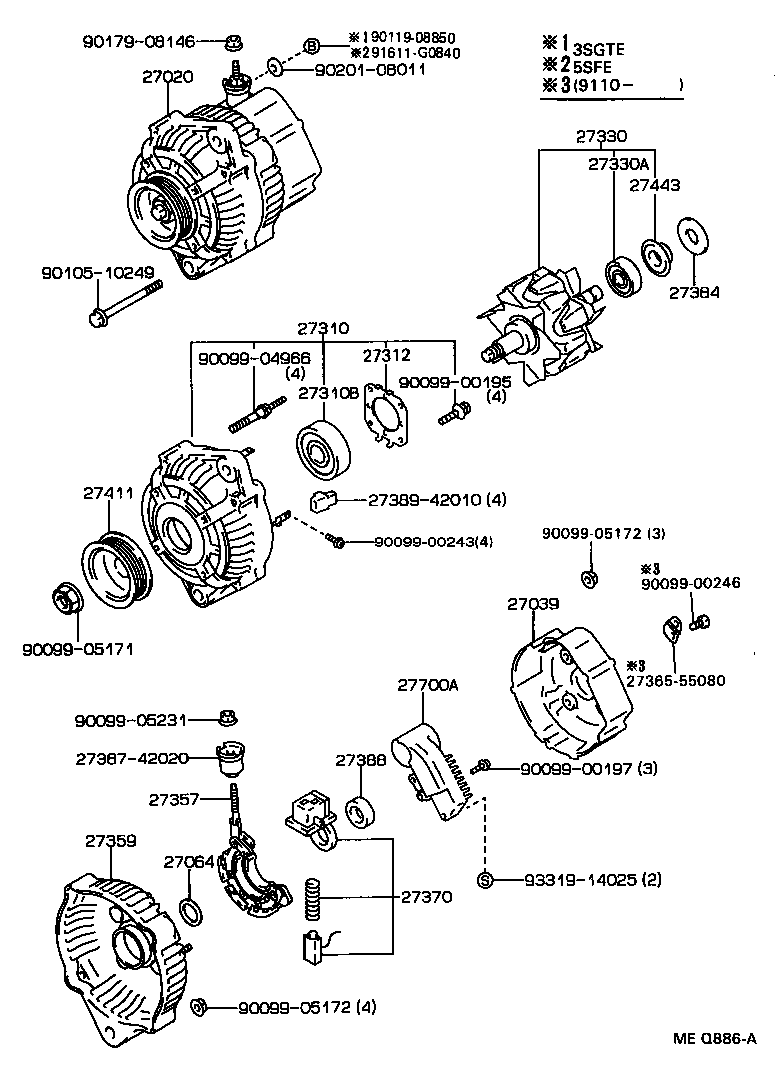

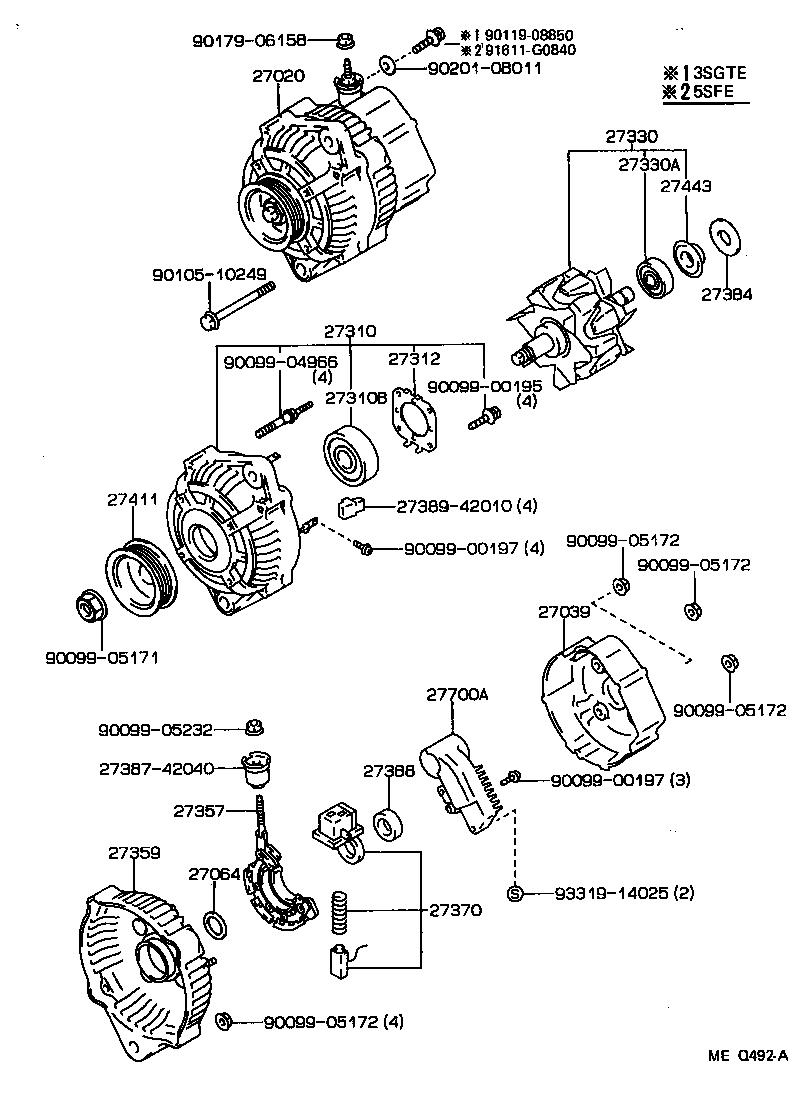

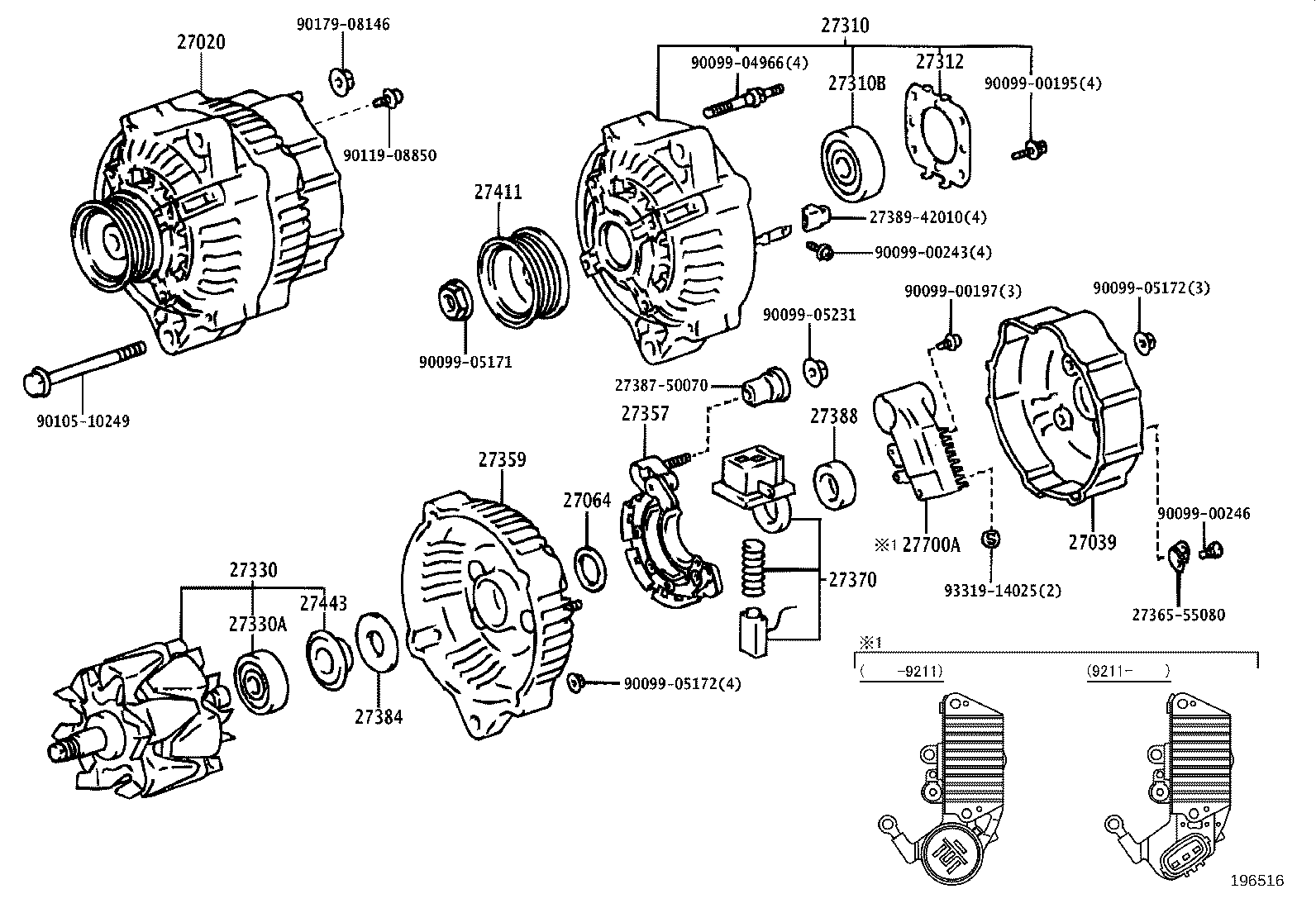

Figure MEP519A MEP519A 1990-01 → 1992-01 Figure MEQ492A MEQ492A 1990-01 → 1992-01 Figure MEQ886A MEQ886A 1990-01 → 1992-01 Figure MES894A MES894A 1992-01 → — Figure MES895B MES895B 1992-01 → — Figure 196516 196516 1992-01 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27384 Washer
27388 Cover, Alternator Brush
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
