Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

24 part groups · 3 illustrations

Illustrations

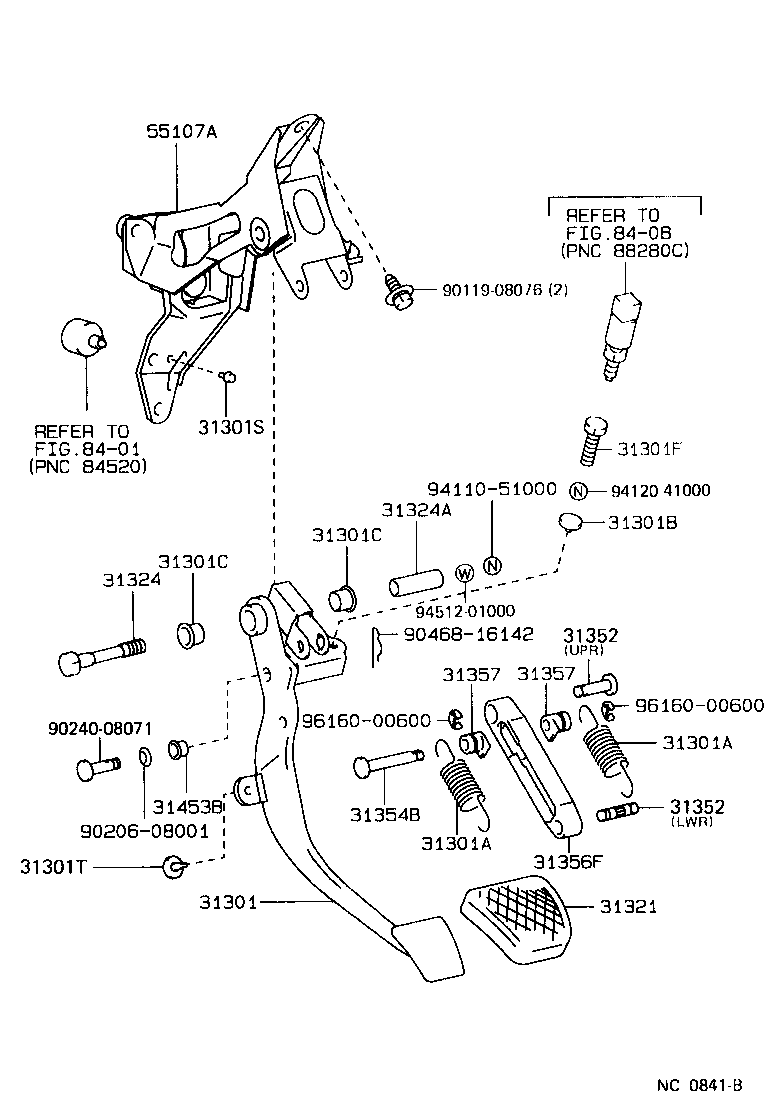

Figure NC0840B NC0840B 1990-01 → — Figure NC0841B NC0841B 1990-01 → — Figure 312072 312072 1990-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301S Cushion, NO.2(FOR CLUTCH PEDAL)
31301T Cushion, NO.3(FOR CLUTCH PEDAL)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31352 Pin, Over Center Plate
31354B Pin, W/Hole(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31356F Plate, Clutch Pedal Over Center, NO.1
31357 Plate, Clutch Pedal Over Center, NO.2
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31468A Bracket, Bleeder Tube, NO.1
31481A Hose, Clutch, NO.1
31481B Way(FOR CLUTCH TUBE)
31481J Tube, Clutch Master Cylinder TO 2 Way
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31483E Tube, Bleeder Clutch Release
31484C Bracket, Clutch Tube, NO.1
31489 Tube, Tube Connector TO Flexible Hose
55107A Support Sub-assy, Clutch Pedal
