Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 3 illustrations

Illustrations

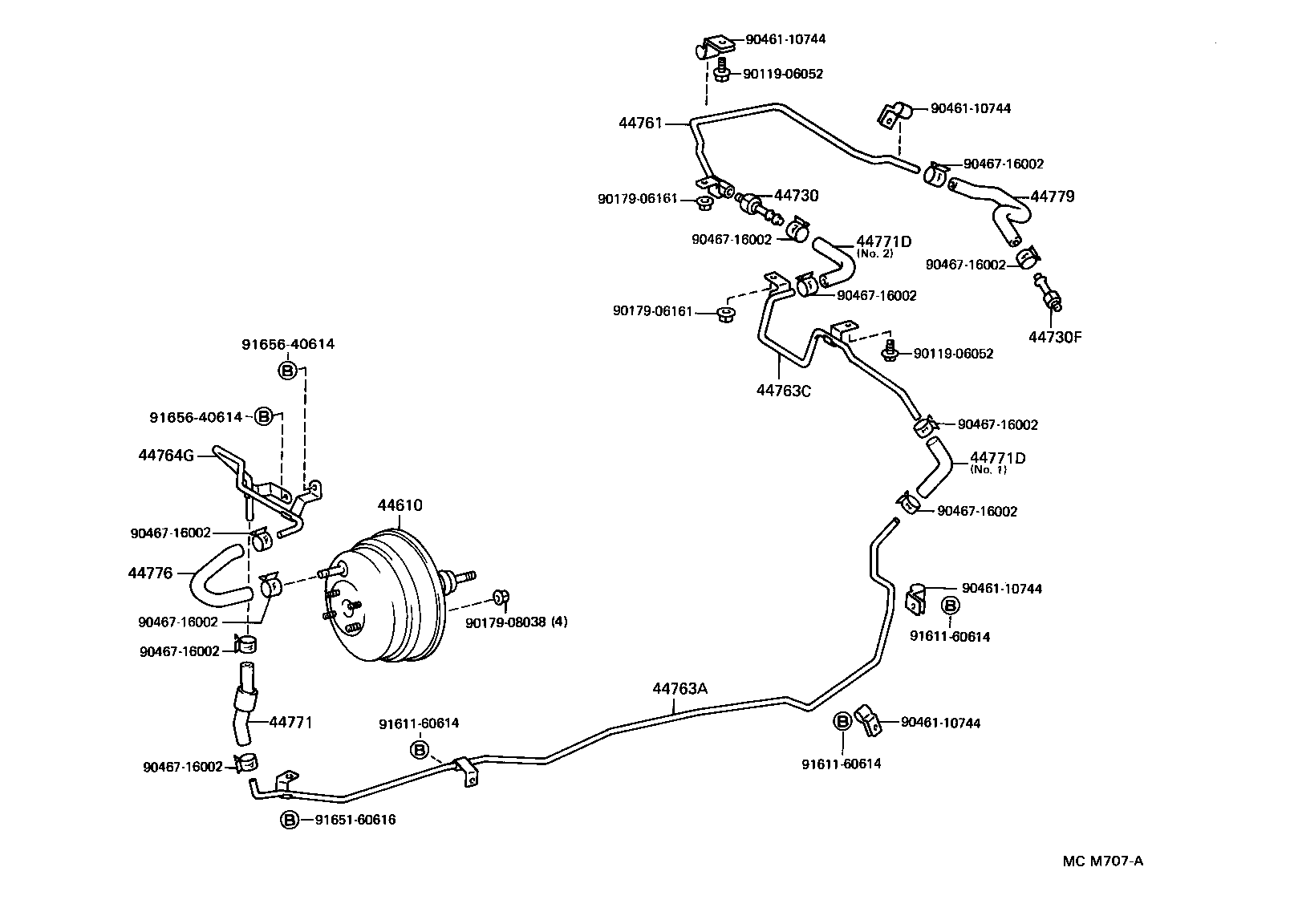

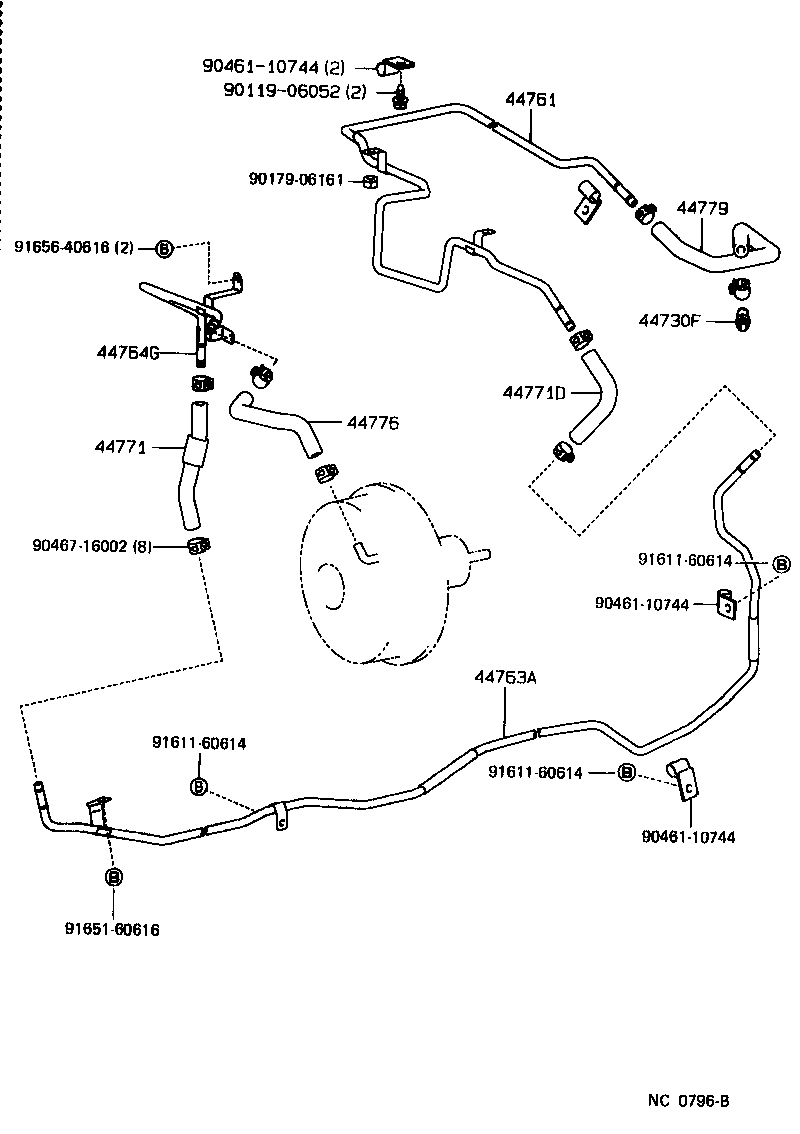

Figure NC0793A NC0793A 1990-01 → 1992-01 Figure NC0796B NC0796B 1990-01 → 1992-01 Figure MCM707A MCM707A 1992-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44764G Tube, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44776 Hose, Brake Booster
44779 Hose, Union TO Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
