Toyota MR2
1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe
Discontinued model
Data version 1996-11
Brake Tube & Clamp
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

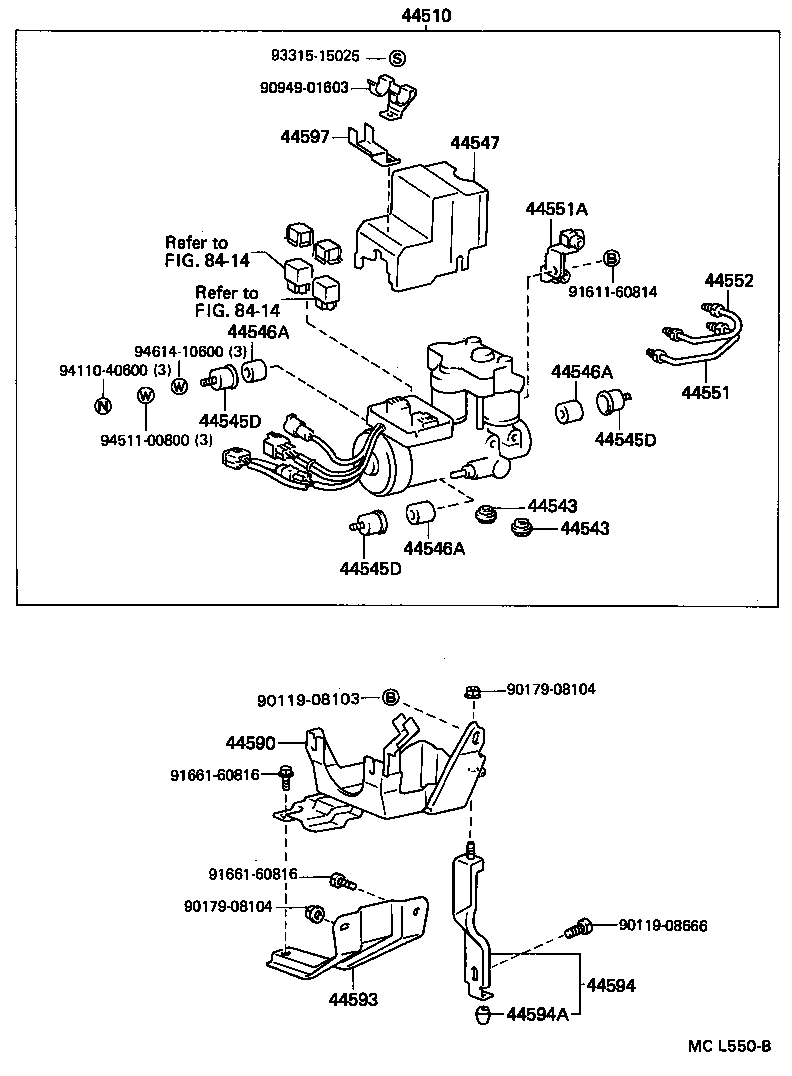

| 44510 | Actuator Assy, Brake |
| 44543 | Cap, Rubber |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44547 | Case, Relay(FOR BRAKE ACTUATOR) |
| 44551 | Tube, Brake Actuator, NO.1 |
| 44551A | Way, NO.1(FOR BRAKE ACTUATOR) |
| 44552 | Tube, Brake Actuator, NO.2 |
| 44590 | Bracket Assy, Brake Actuator |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 44594 | Bracket, Brake Actuator, NO.4 |
| 44594A | Cushion(FOR BRAKE ACTUATOR BRACKET NO.4) |
| 44597 | Clamp, Brake Actuator Connector, NO.1 |
| 47159B | Bracket, Proportioning & By-pass Valve |
| 47190 | Valve Assy, Proportioning & By-pass |

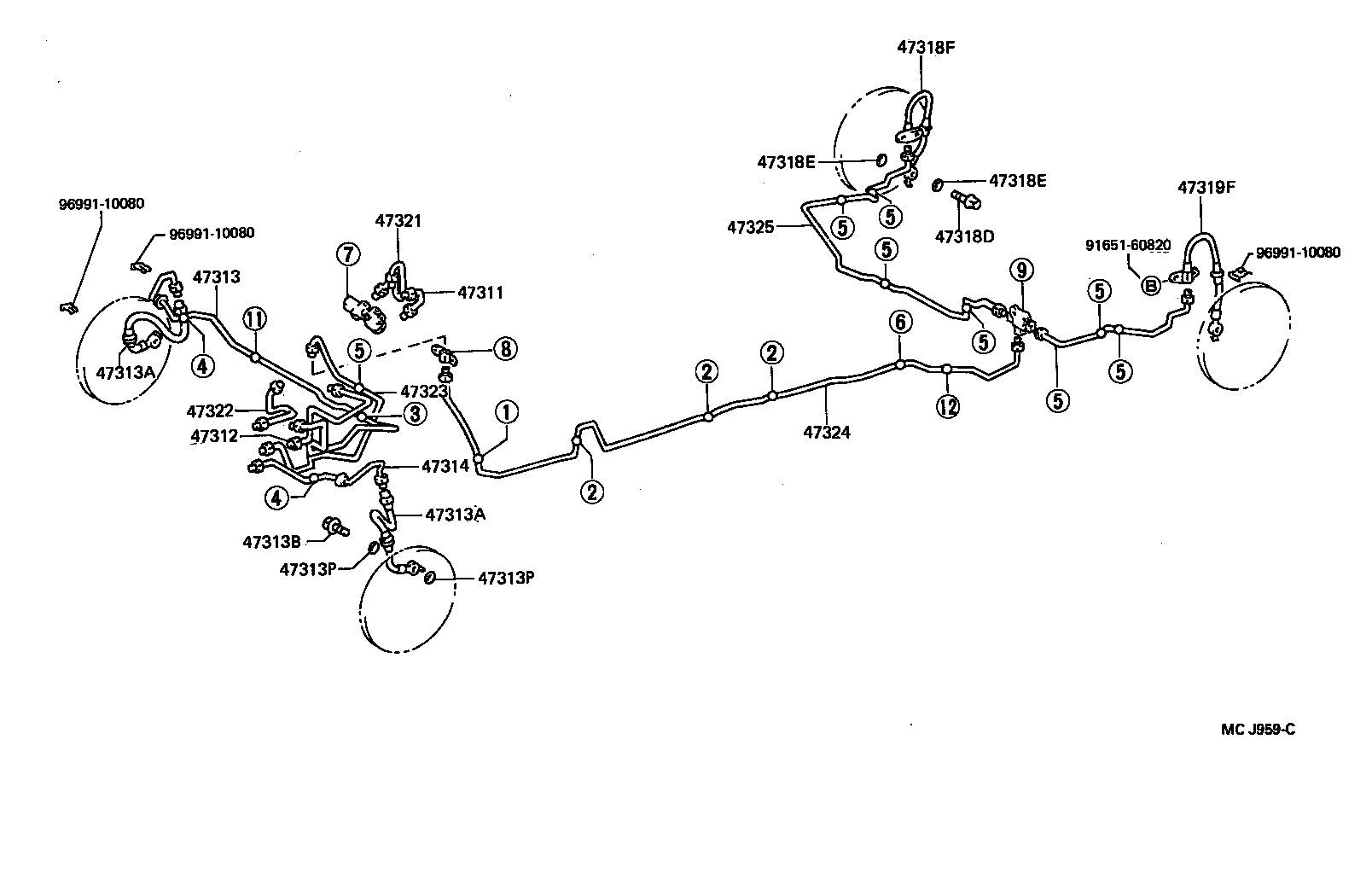

| 47311 | Tube, Front Brake, NO.1 |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |

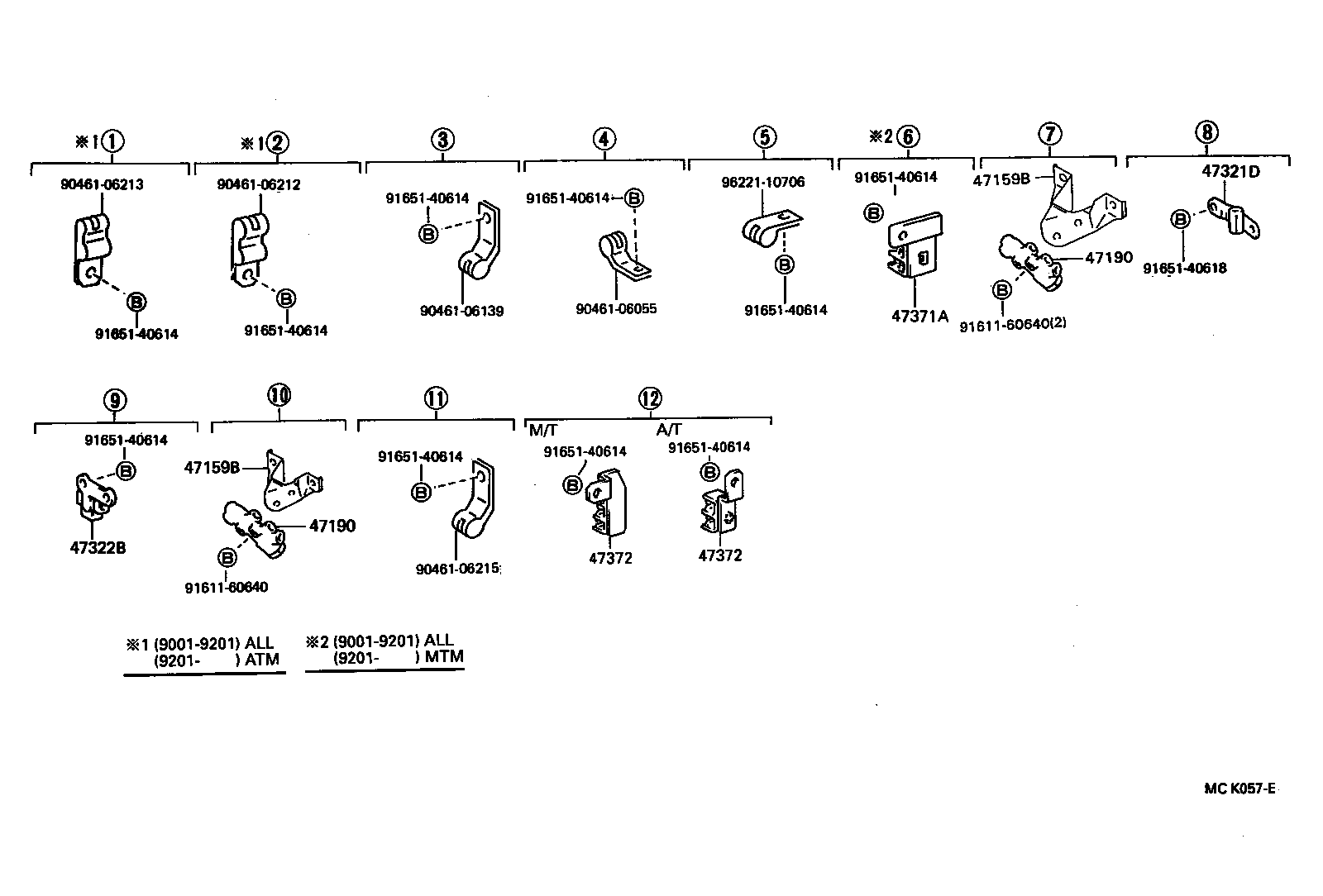

| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
