Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

20 part groups · 2 illustrations

Illustrations

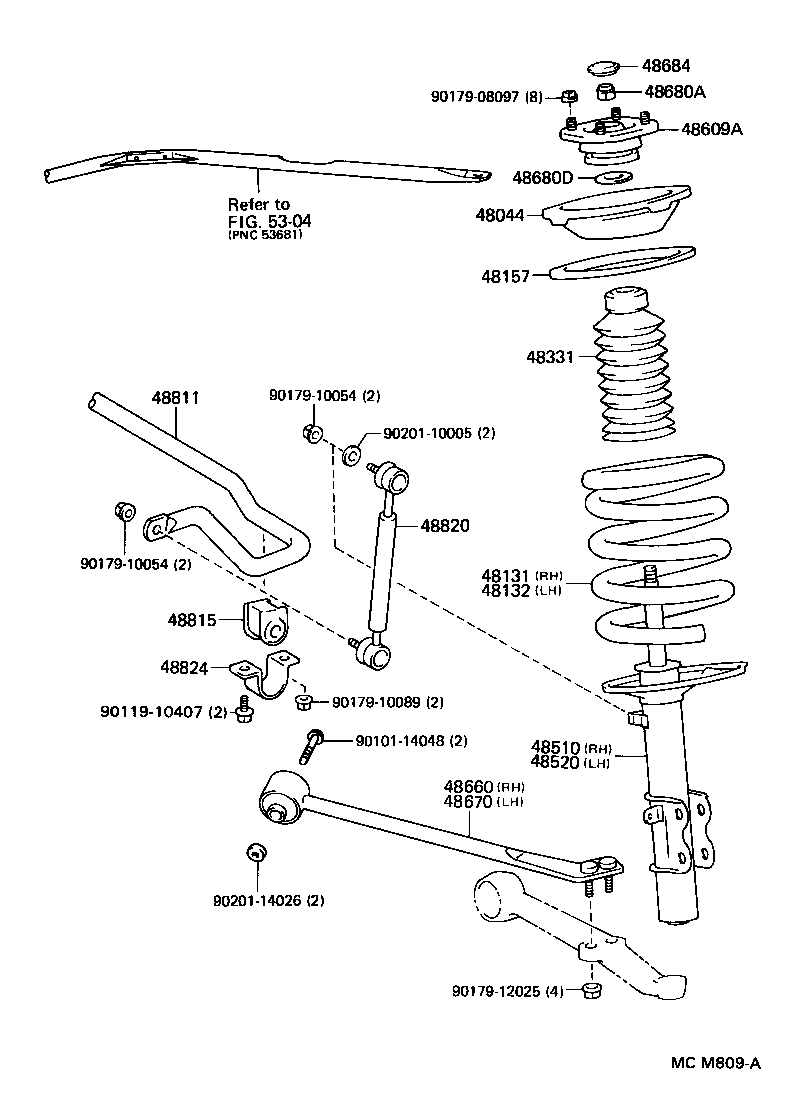

Figure NC0837F NC0837F 1990-01 → 1992-01 Figure MCM809A MCM809A 1992-01 → —

Part groups

PNCDescription
48044 Seat Sub-assy, Front Spring, NO.1
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157 Insulator, Front Coil Spring, Upper
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48609A Support Sub-assy, Front Suspension
48660 Bar Assy, Strut, RH
48670 Bar Assy, Strut, LH
48674 Cushion, Strut Bar
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B Collar(FOR STRUT BAR CUSHION)
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680D Seal, Dust(FOR FRONT SUSPENSION SUPPORT)
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820 Link Assy, Front Stabilizer
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
