Toyota MR2
1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe
Discontinued model
Data version 1996-11

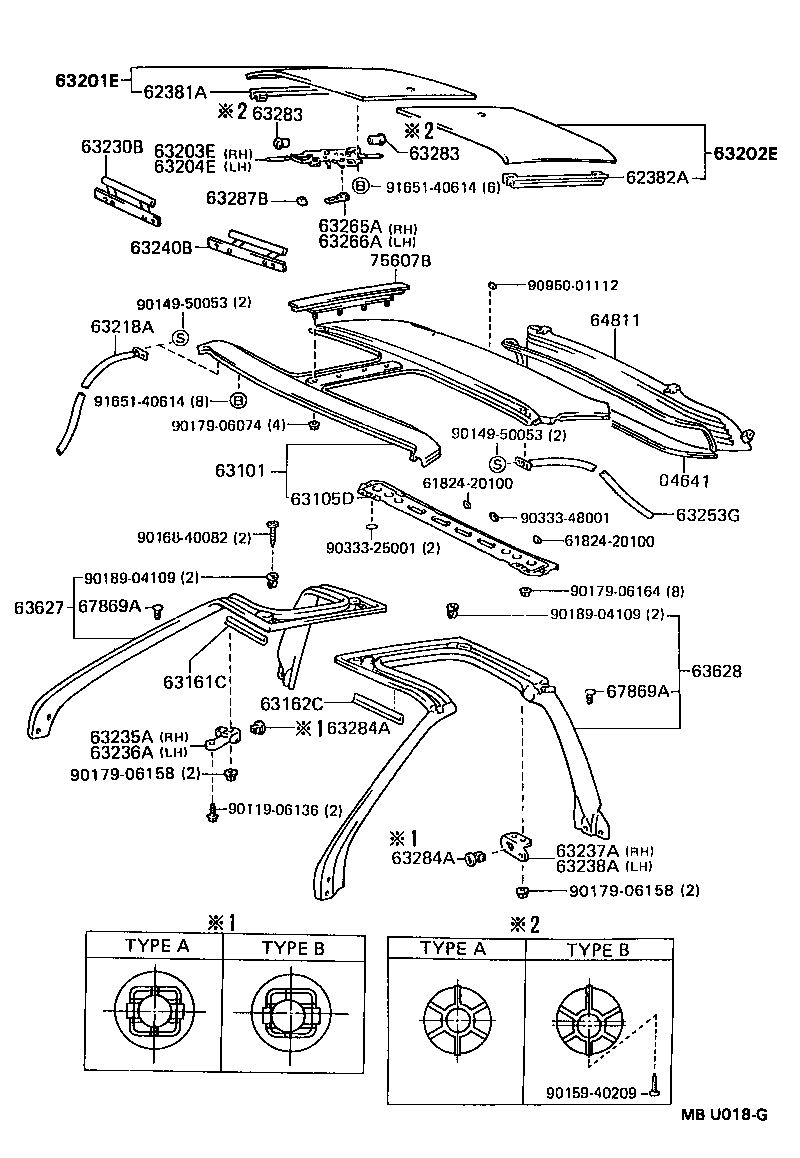

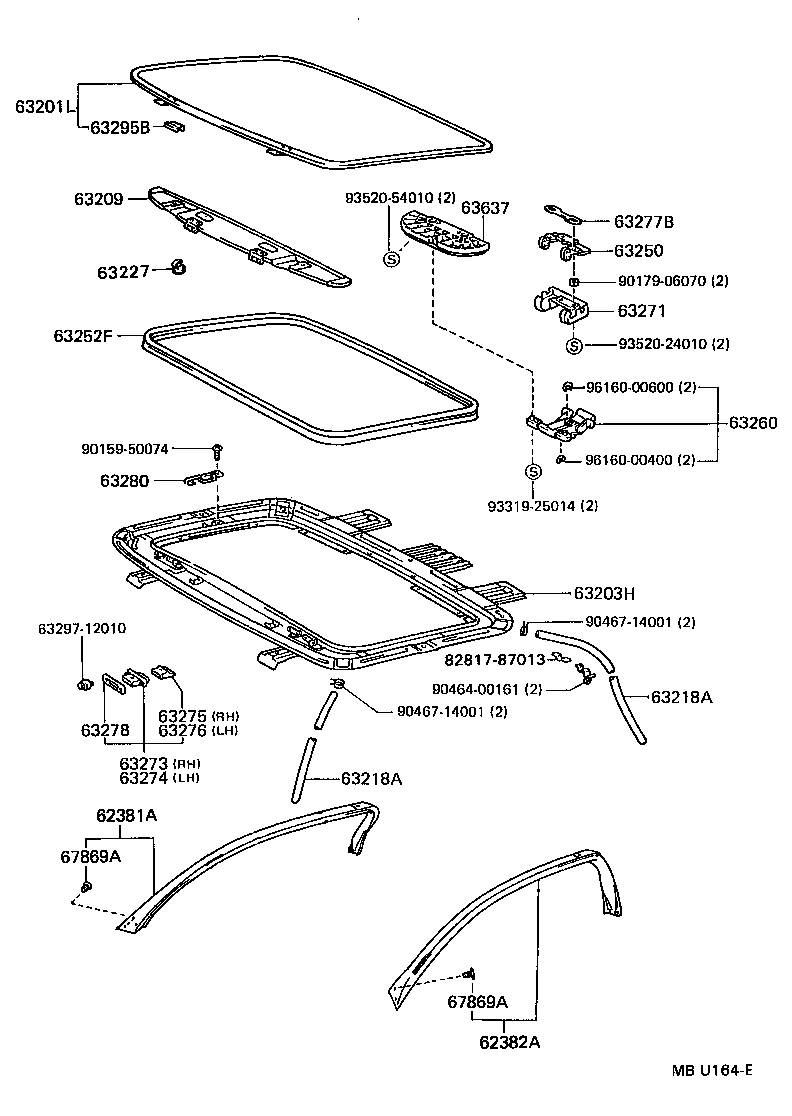

Roof Panel & Back Window Glass
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 62381A | Weatherstrip, Roof Side Rail, RH |
| 62382A | Weatherstrip, Roof Side Rail, LH |
| 63101 | Panel Sub-assy, Roof |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63161C | Protector, Windshield Header, RH |
| 63162C | Protector, Windshield Header, LH |
| 63201E | Glass Sub-assy, Removable Roof, RH |
| 63201L | Glass Sub-assy, Removable Roof |
| 63202E | Glass Sub-assy, Removable Roof, LH |
| 63203E | Lock Sub-assy, Removable Roof, RH |
| 63203H | Housing Sub-assy, Removable Roof |
| 63204E | Lock Sub-assy, Removable Roof, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63227 | Clip, Roof Wind Deflector Panel |
| 63230B | Panel Assy, Roof Wind Deflector |
| 63235A | Plate, Removable Roof Female, Front RH |
| 63236A | Plate, Removable Roof Female, Front LH |
| 63237A | Plate, Removable Roof Female, Rear RH |
| 63238A | Plate, Removable Roof Female, Rear LH |
| 63240B | Panel Assy, Roof Wind Deflector, LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63252F | Weatherstrip, Removable Roof, Inner |
| 63253G | Hose, Removable Roof Drain, Rear RH |
| 63260 | Handle Assy, Removable Roof Lock |
| 63265A | Lever, Removable Roof Lock, RH |
| 63266A | Lever, Removable Roof Lock, LH |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63277B | Spacer, Removable Roof Lock Base |
| 63278 | Seal, Removable Roof Hinge Case |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63283 | Guide, Removable Roof Lock |
| 63284A | Guide, Removable Roof Female |
| 63287B | Knob, Removable Roof Lock |
| 63295B | Pad, Roof Wind Deflector Panel |
| 63627 | Weatherstrip, Removable Roof, RH |
| 63628 | Weatherstrip, Removable Roof, LH |
| 63637 | Garnish, Removable Roof |
| 64811 | Glass, Back Window |
| 67869A | Clip(FOR REMOVABLE ROOF WEATHERSTRIP) |
| 75607B | Moulding Sub-assy, Roof Top |
| 76103 | Belt Sub-assy, Roof Glass Bag, Inner |
| 76104 | Belt Sub-assy, Roof Glass Bag, Outer |
| 76130 | Bag Assy, Roof Glass, RH |
| 76140 | Bag Assy, Roof Glass, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
