Toyota MR2
1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe
Discontinued model
Data version 1996-11
Mudguard & Spoiler

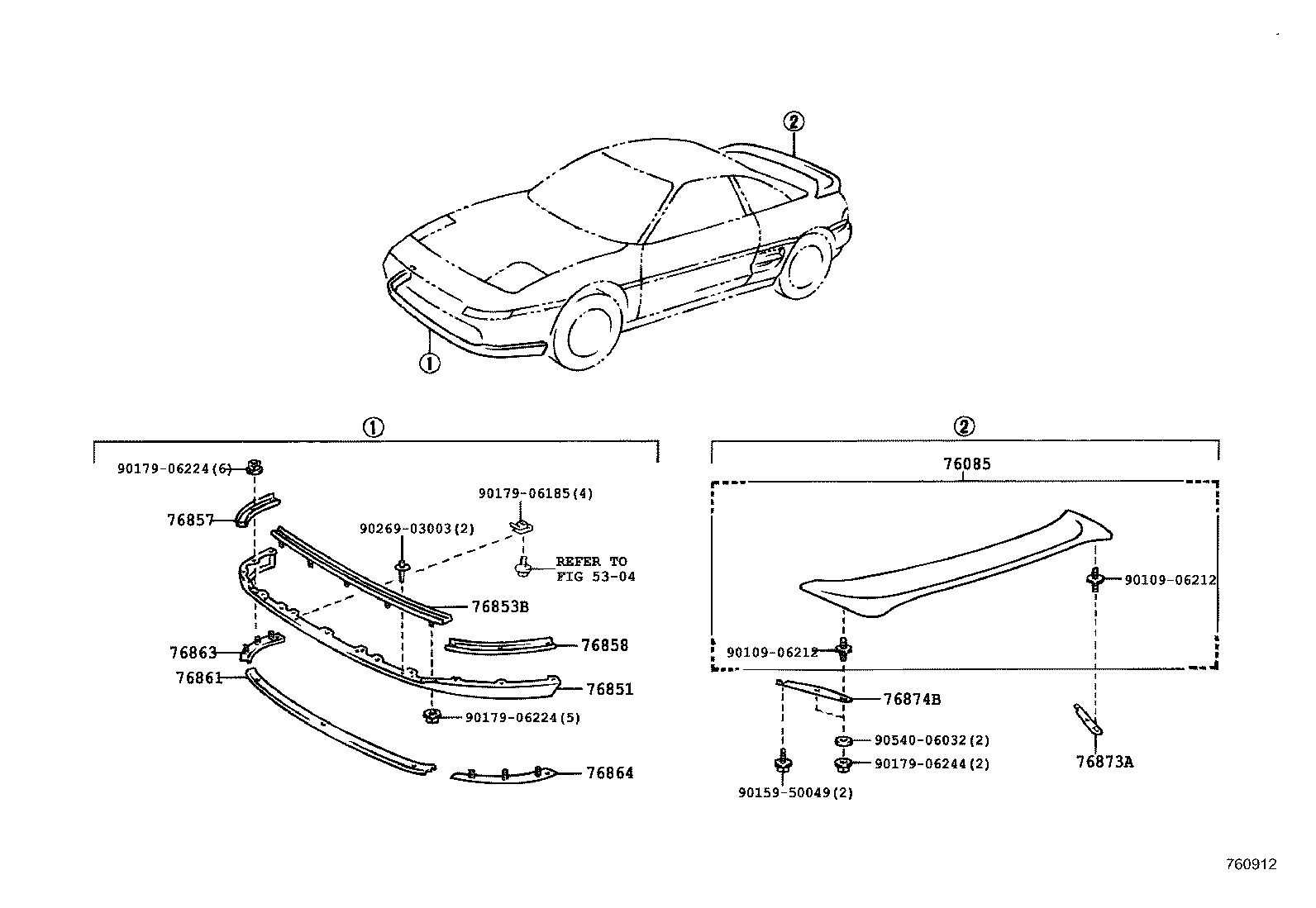

32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76085 | Spoiler Sub-assy, Rear |
| 76087A | Spoiler Sub-assy, Rear Side |
| 76088A | Spoiler Sub-assy, Rear Side |
| 76091 | Spoiler Sub-assy, Rear Upper |
| 76092 | Spoiler Sub-assy, Rear Lower |
| 76843 | Protector, Rear Spoiler, NO.11 RH |
| 76844 | Protector, Rear Spoiler, NO.11 LH |
| 76848A | Support, Rear Spoiler |
| 76849B | Support, Rear Spoiler |
| 76851 | Cover, Front Spoiler |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853B | Cover, Front Spoiler, Center |
| 76857 | Retainer, Front Spoiler Side, RH |
| 76858 | Retainer, Front Spoiler Side, LH |
| 76861 | Retainer, Front Spoiler, Lower NO.1 |
| 76863 | Retainer, Front Spoiler, Lower NO.2 RH |
| 76864 | Retainer, Front Spoiler, Lower NO.2 LH |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76873A | Protector, Rear Spoiler, RH |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76874B | Protector, Rear Spoiler, LH |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76883B | Protector, Rear Spoiler, NO.7 |
| 76887B | Protector, Rear Spoiler Side, NO.2 |
| 76888 | Protector, Rear Spoiler Side, NO.3 |
| 76889C | Adhesive, Rear Spoiler |
| 76896 | Protector, Rear Spoiler, NO.6 |
| 76899B | Protector, Rear Spoiler, Side NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
