Heating & Air Conditioning - Cooler Unit

13 part groups · 2 illustrations

Illustrations

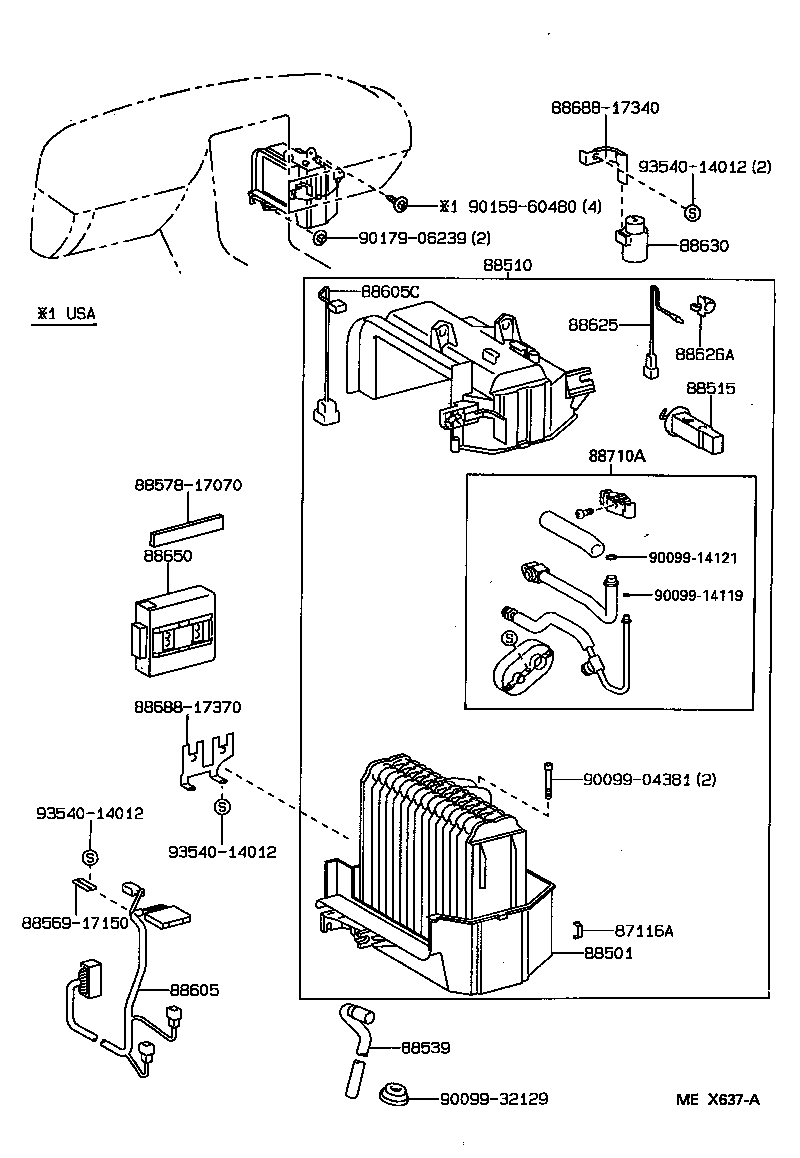

Figure MEP485F MEP485F 1990-01 → 1993-11 Figure MEX637A MEX637A 1993-11 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
