Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

12 part groups · 2 illustrations

Illustrations

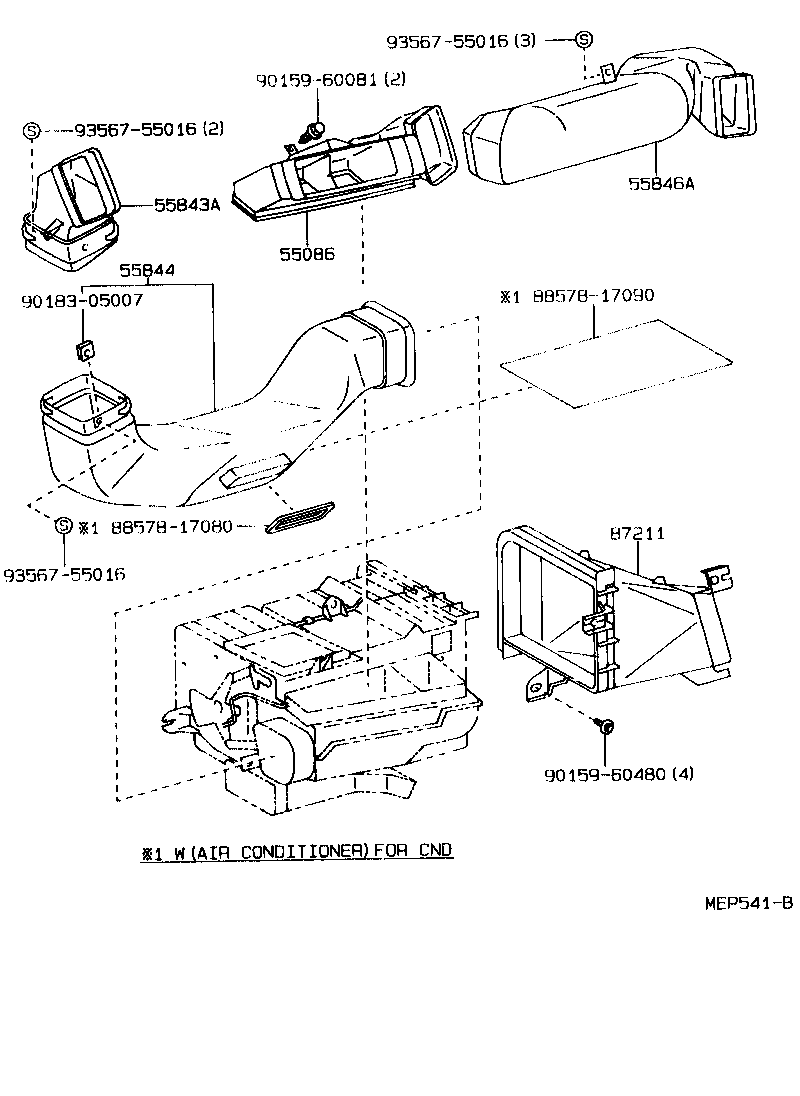

Figure MEP538E MEP538E 1990-01 → — Figure MEP541B MEP541B 1990-01 → —

Part groups

PNCDescription
55086 Duct Sub-assy, Heater TO Register, NO.3
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55900C Cap, Air Conditioner Control Bulb
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55907A Cable Sub-assy, Water Valve Control
55934A Retainer, Heater Control Cable
87211 Duct, Air, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
