Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

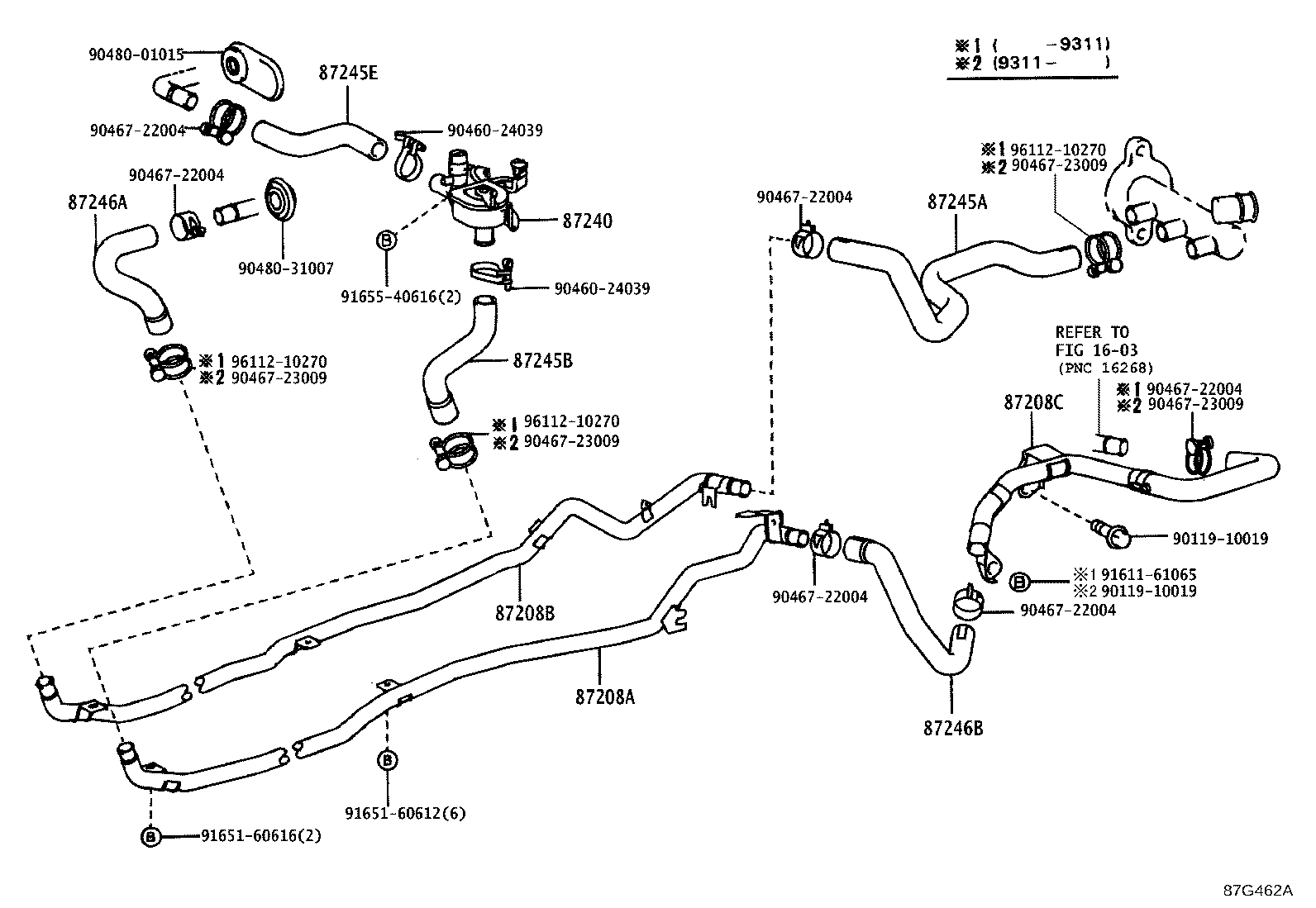

Figure 87G461A 87G461A 1990-01 → — Figure 87G462A 87G462A 1990-01 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
