Toyota Carina
1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe
Discontinued model
Data version 1977-09

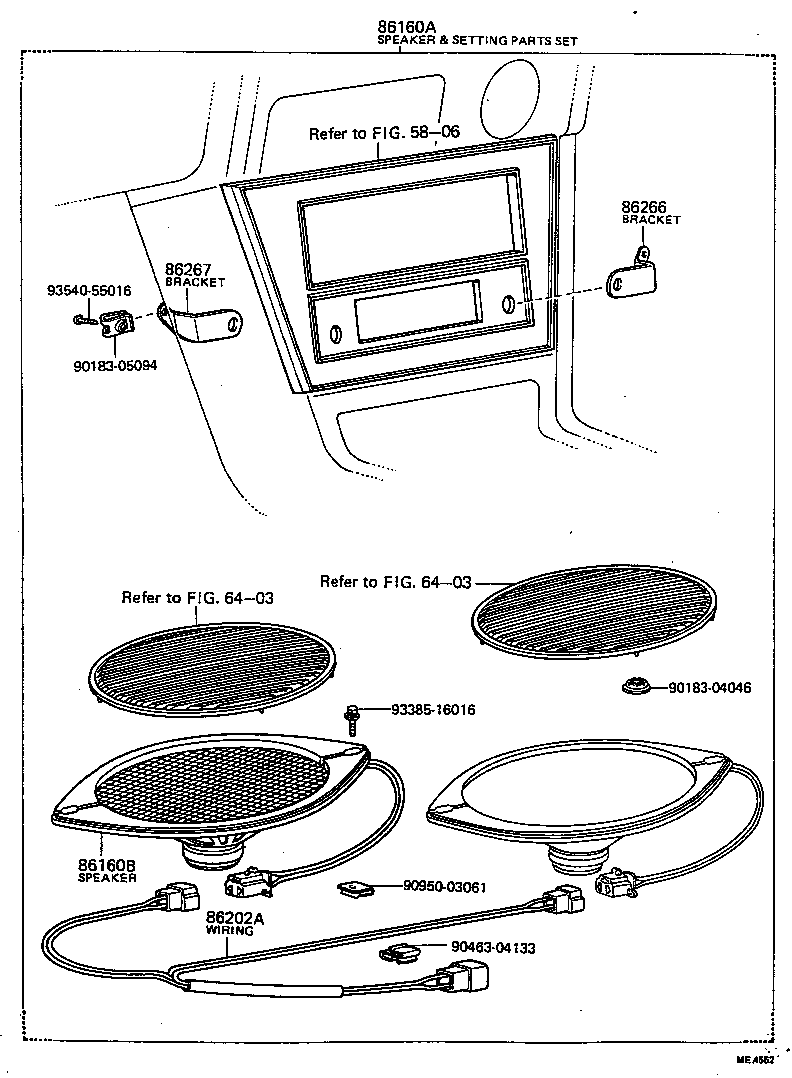

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160A — Speaker Set, Front | ||||
| 86160-19035 |
Speaker Set, Front
1975-10 → 1977-07
ended
|
TA14 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-20050 |
Speaker Assy, Rear
1970-12 → 1977-07
ended
|
TA1# | — | |
| 86202A — Wire, Speaker, NO.2 | ||||
| 86202-14040 |
Wire, Speaker, NO.2
1973-02 → 1975-09
ended
|
TA1# | — | |
| 86202-14041 |
Wire, Speaker, NO.2
1975-10 → 1977-07
ended
|
TA14 | — | |
| 86202-20010 |
Wire, Speaker, NO.2
1970-12 → 1973-02
ended
|
TA1# | — | |
| 86266 — Bracket, Tape Player, NO.2 | ||||
| 55367-14010 |
Bracket, Tape Player, NO.2
1975-10 → 1977-07
ended
|
TA14 | — | |
| 86267 — Bracket, Tape Player, NO.3 | ||||
| 55366-14010 |
Bracket, Tape Player, NO.3
1975-10 → 1977-07
ended
|
TA14 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
