Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

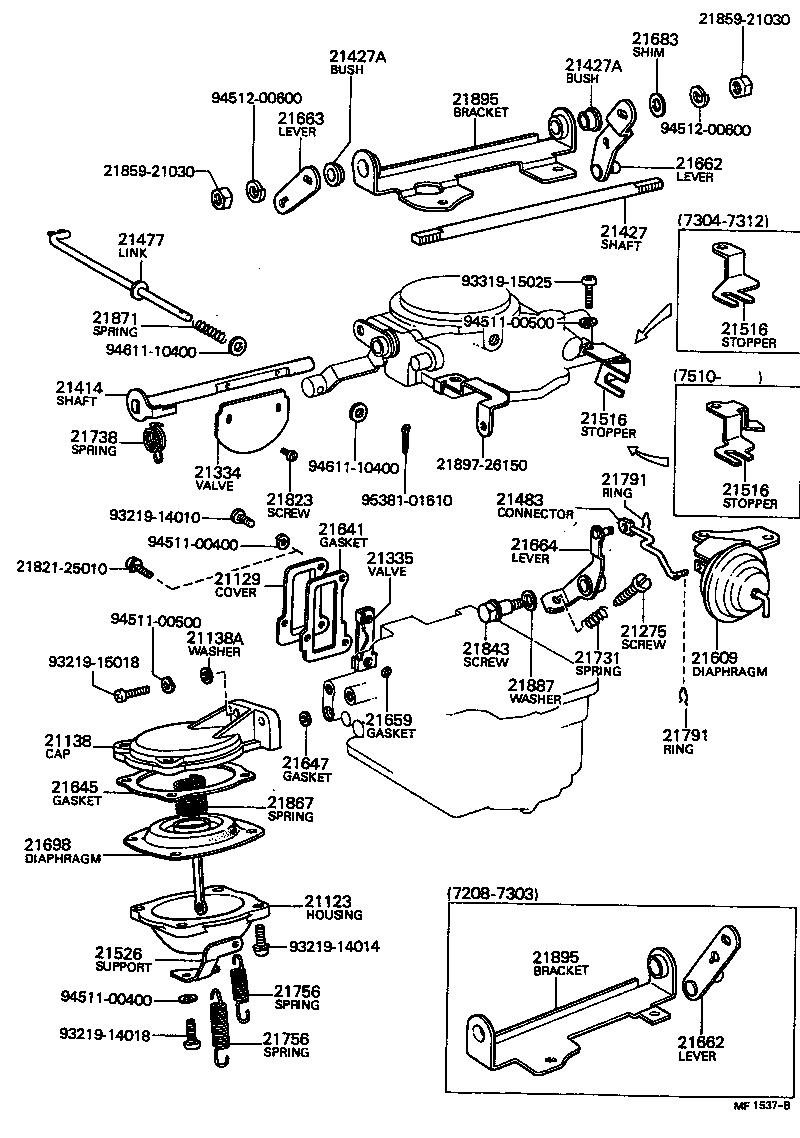

Exploded illustration MF1537B 2185921030 — not listed in this catalogue 21683 — SHIM, CHOKE CONNECTOR SHAFT (2 parts) 21427A — BUSH, SHAFT CHOKE CONNECTOR (1 parts) 21427A — BUSH, SHAFT CHOKE CONNECTOR (1 parts) 9451200600 — not listed in this catalogue 21895 — BRACKET, CHOKE CONNECTOR SHAFT (2 parts) 21663 — LEVER, CHOKE CONNECTOR SHAFT, NO.2 (3 parts) 9451200600 — not listed in this catalogue 21662 — LEVER, CHOKE CONNECTOR SHAFT, NO.1 (2 parts) 2185921030 — not listed in this catalogue 21427 — SHAFT, CHOKE CONNECTOR (2 parts) 21477 — LINK, CHOKE LEVER (2 parts) 9331915025 — not listed in this catalogue 21871 — SPRING, CHOKE CONNECTING LINK (1 parts) 9451100500 — not listed in this catalogue 21516 — CLAMP, CONNECTOR (5 parts) 9461110400 — not listed in this catalogue 21414 — SHAFT, CHOKE (4 parts) 21516 — CLAMP, CONNECTOR (5 parts) 21738 — SPRING, CHOKE VALVE RELIEF (1 parts) 2189726150 — not listed in this catalogue 9461110400 — not listed in this catalogue 21334 — VALVE, CHOKE (3 parts) 21791 — RING, SNAP, NO.1(FOR CARBURETOR LINK) (1 parts) 21516 — CLAMP, CONNECTOR (5 parts) 21823 — SCREW, CHOKE, VALVE SET (3 parts) 21483 — CONNECTOR, NO.1 (1 parts) 9538101610 — not listed in this catalogue 9321914010 — not listed in this catalogue 21641 — GASKET(FOR THERMOSTATIC VALVE COVER) (3 parts) 9451100400 — not listed in this catalogue 21664 — LEVER(FOR DASH POT OR POSITIONER) (1 parts) 21335 — VALVE, THERMOSTATIC (2 parts) 2182125010 — not listed in this catalogue 21129 — COVER(FOR THERMOSTATIC VALVE) (3 parts) 9451100500 — not listed in this catalogue 21275 — SCREW, ADJUSTING (2 parts) 21138A — WASHER(FOR DIAPHRAGM CAP SET) (1 parts) 21843 — SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) (1 parts) 21731 — SPRING, DASH POT OR POSITIONER ADJUSTING (1 parts) 21609 — not listed in this catalogue 9321915018 — not listed in this catalogue 21887 — WASHER(FOR CONNECTING LINK SETTING) (1 parts) 21659 — RING, O(FOR THERMOSTATIC VALVE) (2 parts) 21791 — RING, SNAP, NO.1(FOR CARBURETOR LINK) (1 parts) 21138 — CAP, DIAPHRAGM (8 parts) 21647 — GASKET, DIAPHRAGM HOUSING CAP (1 parts) 21645 — GASKET, DIAPHRAGM, CAP (1 parts) 21867 — SPRING, DIAPHRAGM (9 parts) 21698 — DIAPHRAGM (4 parts) 21123 — HOUSING, DIAPHRAGM (2 parts) 9321914014 — not listed in this catalogue 21526 — SUPPORT, BACK SPRING (4 parts) 21895 — BRACKET, CHOKE CONNECTOR SHAFT (2 parts) 21756 — SPRING, BACK(FOR THROTTLE SHAFT) (2 parts) 9451100400 — not listed in this catalogue 9321914018 — not listed in this catalogue 21756 — SPRING, BACK(FOR THROTTLE SHAFT) (2 parts) 21662 — LEVER, CHOKE CONNECTOR SHAFT, NO.1 (2 parts)
MF1537B · 40 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
21123 — Housing, Diaphragm
21123-33080 Housing, Diaphragm
1970-12 → 1973-04 ended
T,2T# TA1# —
21123-44100 Housing, Diaphragm
1973-04 → 1977-07 ended
T,2T# TA1# —
21129 — Cover(FOR THERMOSTATIC VALVE)
21129-24030 Cover(FOR THERMOSTATIC VALVE)
1975-10 → 1977-07 ended
2TB TA14 —
21129-24030 Cover(FOR THERMOSTATIC VALVE)
1970-12 → 1975-09 ended
T,2T# TA1# —
21129-38010 Cover(FOR THERMOSTATIC VALVE)
1975-10 → 1977-07 ended
2T TA14 —
21138 — Cap, Diaphragm
21138-25010 Cap, Diaphragm
1971-03 → 1972-02 ended
T TA10 —
21138-25011 Cap, Diaphragm
1972-02 → 1973-04 ended
T,2T TA1# —
21138-26350 Cap, Diaphragm
1975-10 → 1977-07 ended
2T TA14 —
21138-33081 Cap, Diaphragm
1970-12 → 1971-03 ended
T TA10 —
21138-33081 Cap, Diaphragm
1970-12 → 1972-02 ended
2T TA12 —
21138-33081 Cap, Diaphragm
1972-08 → 1973-04 ended
2TB TA12 —
21138-44100 Cap, Diaphragm
1973-04 → 1975-09 ended
T,2T# TA1# —
21138-44100 Cap, Diaphragm
1975-10 → 1977-07 ended
2TB TA14 —
21138A — Washer(FOR DIAPHRAGM CAP SET)
21885-44010 Washer(FOR DIAPHRAGM CAP SET)
1970-12 → 1977-07 ended
T,2T# TA1# —
21275 — Screw, Adjusting
21844-25010 Screw, Adjusting
1974-01 → 1974-05 ended
2TB TA12 —
21844-26030 Screw, Adjusting
1974-05 → 1977-07 ended
2TB TA12,14 —
21334 — Valve, Choke
21334-26350 Valve, Choke
1975-10 → 1977-07 ended
2T TA14 —
21334-33080 Valve, Choke
1970-12 → 1975-09 ended
T,2T# TA1# —
21334-33080 Valve, Choke
1975-10 → 1977-07 ended
2TB TA14 —
21335 — Valve, Thermostatic
21335-25010 Valve, Thermostatic
1970-12 → 1977-07 ended
T,2T TA1# —
21335-26040 Valve, Thermostatic
1972-08 → 1977-07 ended
2TB TA12,14 —
21414 — Shaft, Choke
21414-25010 Shaft, Choke
1973-04 → 1975-09 ended
T,2T TA1# —
21414-26351 Shaft, Choke
1975-10 → 1977-07 ended
2T TA14 —
21414-31022 Shaft, Choke
1972-08 → 1977-07 ended
2TB TA12,14 —
21414-33080 Shaft, Choke
1970-12 → 1973-04 ended
T,2T TA1# —
21427 — Shaft, Choke Connector
21427-26040 Shaft, Choke Connector
1972-08 → 1973-04 ended
2TB TA12 —
21427-26041 Shaft, Choke Connector
1973-04 → 1977-07 ended
2TB TA12,14 —
21427A — Bush, Shaft Choke Connector
21895-22060 Bush, Shaft Choke Connector
1972-08 → 1977-07 ended
2TB TA12,14 —
21477 — Link, Choke Lever
21477-26010 note Link, Choke Lever
1972-08 → 1973-04 ended
2TB TA12 —
21477-26040 note Link, Choke Lever
1973-04 → 1977-07 ended
2TB TA12 —
21483 — Connector, NO.1
21483-25010 Connector, NO.1
1974-01 → 1977-07 ended
2TB TA12,14 —
21516 — Clamp, Connector
21574-25010 Clamp, Connector
1972-10 → 1974-01 ended
T,2T TA1# —
21574-25011 Clamp, Connector
1974-01 → 1975-09 ended
T,2T TA1# —
21574-26400 Clamp, Connector
1975-10 → 1977-07 ended
2T TA14 —
21575-26041 note Clamp, Connector
1974-01 → 1977-07 ended
2TB TA12,14 —
21575-26100 Clamp, Connector
1973-04 → 1977-07 ended
2TB TA12,14 —
21526 — Support, Back Spring
21526-25010 Support, Back Spring
1970-12 → 1973-04 ended
T,2T TA1# —
21526-26040 Support, Back Spring
1972-08 → 1973-04 ended
2TB TA12 —
21526-44100 Support, Back Spring
1973-04 → 1975-09 ended
T,2T# TA1# —
21526-44100 Support, Back Spring
1975-10 → 1977-07 ended
2T# TA14 —
21641 — Gasket(FOR THERMOSTATIC VALVE COVER)
21641-23010 Gasket(FOR THERMOSTATIC VALVE COVER)
1970-12 → 1975-09 ended
T,2T# TA1# —
21641-23010 Gasket(FOR THERMOSTATIC VALVE COVER)
1975-10 → 1977-07 ended
2TB TA14 —
21641-23012 Gasket(FOR THERMOSTATIC VALVE COVER)
1975-10 → 1977-07 ended
2T TA14 —
21645 — Gasket, Diaphragm, Cap
21645-33080 Gasket, Diaphragm, Cap
1970-12 → 1977-07 ended
T,2T# TA1# —
21647 — Gasket, Diaphragm Housing Cap
21649-33080 Gasket, Diaphragm Housing Cap
1970-12 → 1977-07 ended
T,2T# TA1# —
21659 — Ring, O(FOR THERMOSTATIC VALVE)
21641-24030 Ring, O(FOR THERMOSTATIC VALVE)
1973-04 → 1977-07 ended
T,2T# TA1# —
23532-40010 Ring, O(FOR THERMOSTATIC VALVE)
1970-12 → 1973-04 ended
T,2T# TA1# —
21662 — Lever, Choke Connector Shaft, NO.1
21454-26050 Lever, Choke Connector Shaft, NO.1
1972-08 → 1973-04 ended
2TB TA12 —
21454-26051 Lever, Choke Connector Shaft, NO.1
1973-04 → 1977-07 ended
2TB TA12,14 —
21663 — Lever, Choke Connector Shaft, NO.2
21664-26040 Lever, Choke Connector Shaft, NO.2
1972-08 → 1973-04 ended
2TB TA12 —
21664-26041 Lever, Choke Connector Shaft, NO.2
1973-04 → 1977-07 ended
2TB TA12,14 —
21666-26350 Lever, Choke Connector Shaft, NO.2
1975-10 → 1977-07 ended
2T TA14 —
21664 — Lever(FOR DASH POT OR POSITIONER)
21664-26050 Lever(FOR DASH POT OR POSITIONER)
1974-01 → 1977-07 ended
2TB TA12,14 —
21683 — Shim, Choke Connector Shaft
21681-21060 note Shim, Choke Connector Shaft
1972-08 → 1977-07 ended
2TB TA12,14 —
21682-21060 note Shim, Choke Connector Shaft
1972-08 → 1977-07 ended
2TB TA12,14 —
21698 — Diaphragm
21669-25010 Diaphragm
1973-04 → 1975-09 ended
T,2T TA1# —
21669-25010 Diaphragm
1975-10 → 1977-07 ended
2T TA14 —
21669-26040 Diaphragm
1973-04 → 1977-07 ended
2TB TA12,14 —
21669-33080 Diaphragm
1970-12 → 1973-04 ended
T,2T# TA1# —
21731 — Spring, Dash Pot OR Positioner Adjusting
21723-10010 Spring, Dash Pot OR Positioner Adjusting
1975-10 → 1977-07 ended
2TB TA14 —
21738 — Spring, Choke Valve Relief
21738-26040 Spring, Choke Valve Relief
1972-08 → 1977-07 ended
2TB TA12,14 —
21756 — Spring, Back(FOR THROTTLE SHAFT)
21756-26040 Spring, Back(FOR THROTTLE SHAFT)
1973-04 → 1975-01 ended
2TB TA12 —
21756-33080 Spring, Back(FOR THROTTLE SHAFT)
1970-12 → 1977-07 ended
T,2T# TA1# —
21791 — Ring, Snap, NO.1(FOR CARBURETOR LINK)
21791-60010 Ring, Snap, NO.1(FOR CARBURETOR LINK)
1970-12 → 1977-07 ended
T,2T# TA1# —
21823 — Screw, Choke, Valve Set
21821-34031 Screw, Choke, Valve Set
1975-10 → 1977-07 ended
2T TA14 —
21822-10011 Screw, Choke, Valve Set
1970-12 → 1975-09 ended
T,2T# TA1# —
21822-10011 Screw, Choke, Valve Set
1975-10 → 1977-07 ended
2TB TA14 —
21843 — Screw OR Pin (FOR DASH POT OR POSITIONER LEVER)
21845-25010 Screw OR Pin (FOR DASH POT OR POSITIONER LEVER)
1975-10 → 1977-07 ended
2TB TA14 —
21867 — Spring, Diaphragm
21867-25010 Spring, Diaphragm
1970-12 → 1971-03 ended
T TA10 —
21867-25010 Spring, Diaphragm
1970-12 → 1972-02 ended
2T TA12 —
21867-25011 Spring, Diaphragm
1972-01 → 1973-04 ended
T TA10 —
21867-25011 Spring, Diaphragm
1972-02 → 1973-04 ended
2T TA12 —
21867-25012 Spring, Diaphragm
1973-04 → 1975-09 ended
T,2T TA1# —
21867-26040 Spring, Diaphragm
1972-08 → 1973-04 ended
2TB TA12 —
21867-26400 Spring, Diaphragm
1975-10 → 1977-07 ended
2T TA14 —
21867-41010 Spring, Diaphragm
1971-03 → 1972-01 ended
T TA10 —
21867-41010 Spring, Diaphragm
1973-04 → 1977-07 ended
2TB TA12,14 —
21871 — Spring, Choke Connecting Link
21864-22060 Spring, Choke Connecting Link
1972-08 → 1975-09 ended
2TB TA12 —
21887 — Washer(FOR CONNECTING LINK SETTING)
21888-34060 Washer(FOR CONNECTING LINK SETTING)
1975-10 → 1977-07 ended
2TB TA14 —
21895 — Bracket, Choke Connector Shaft
21896-26040 Bracket, Choke Connector Shaft
1972-08 → 1973-04 ended
2TB TA12 —
21896-26041 Bracket, Choke Connector Shaft
1973-04 → 1977-07 ended
2TB TA12,14 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
