Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 5 illustrations

Illustrations

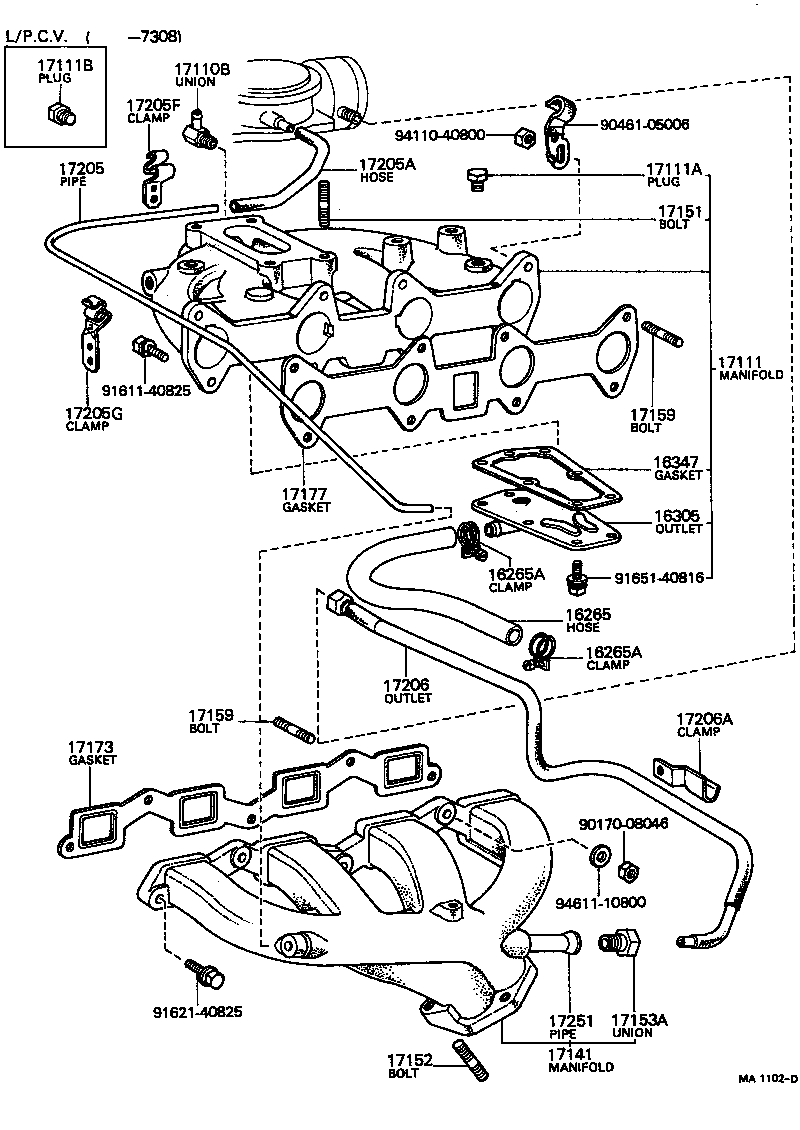

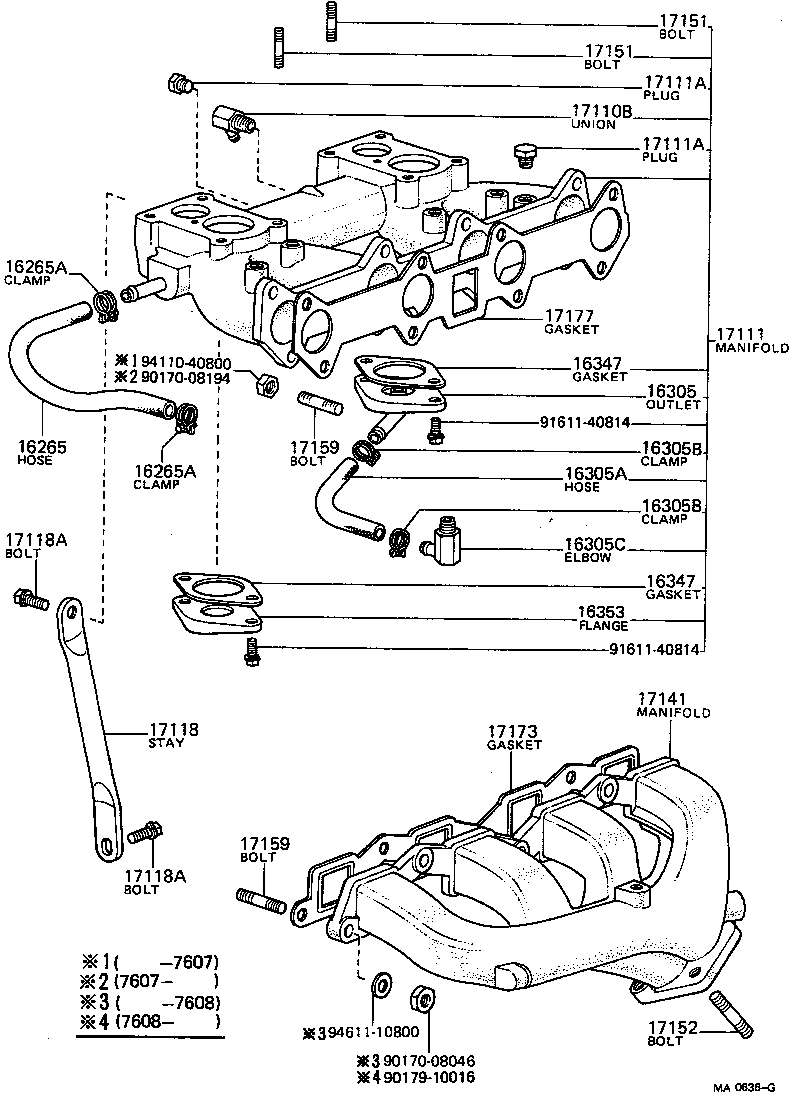

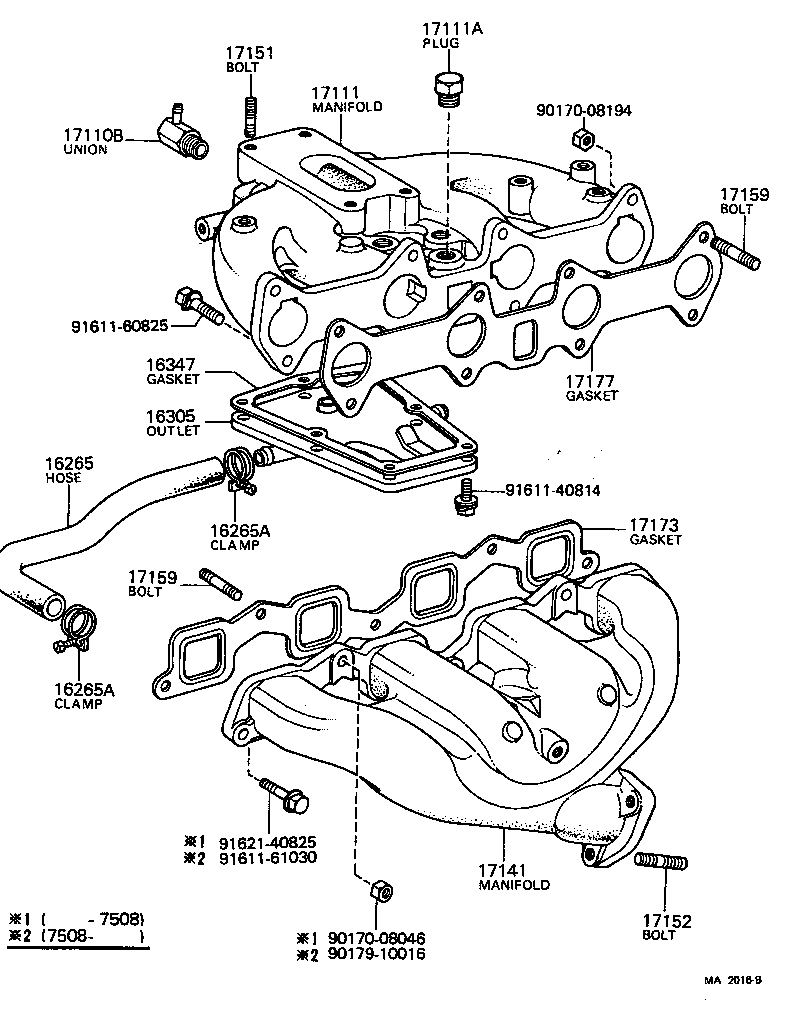

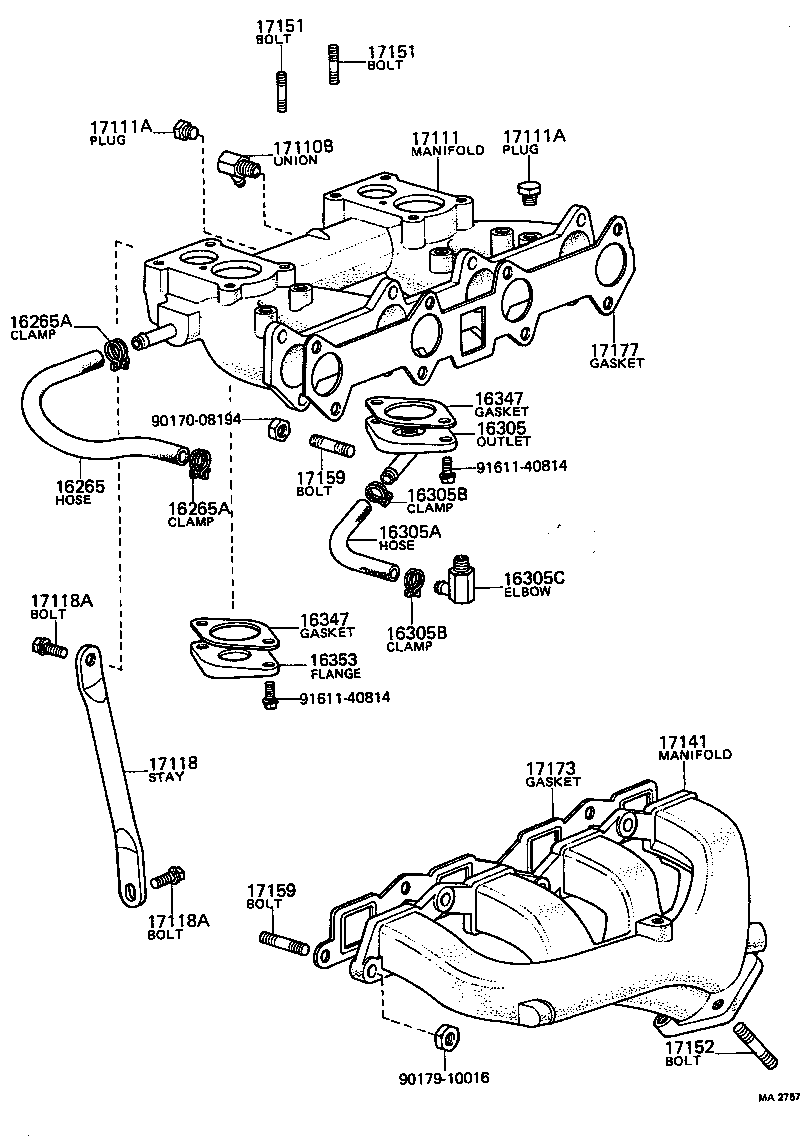

Figure MA0431G MA0431G 1970-12 → 1973-03 Figure MA1102D MA1102D 1973-04 → 1975-09 Figure MA2016B MA2016B 1975-10 → 1977-07 Figure MA0636G MA0636G 1972-08 → 1977-01 Figure MA2757 MA2757 1977-01 → 1977-07

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16305A Hose, Water By-pass Outlet
16305B Clamp, Water By-pass Outlet Hose
16305C Elbow, Water By-pass Outlet Hose
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17153A Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17205 Pipe, Automatic Choke Stove Inlet
17205A Hose(FOR AUTOMATIC CHOKE STOVE PIPE)
17205F Clamp(FOR AUTOMATIC CHOKE STOVE INLET PIPE)
17205G Clamp, NO.2(FOR AUTOMATIC CHOKE STOVE INLET PIPE)
17206 Pipe, Automatic Choke Stove Outlet
17206A Clamp(FOR AUTOMATIC CHOKE STOVE OUTLET PIPE)
17251 Pipe,Automatic Choke Stove
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
