Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 8 illustrations

Illustrations

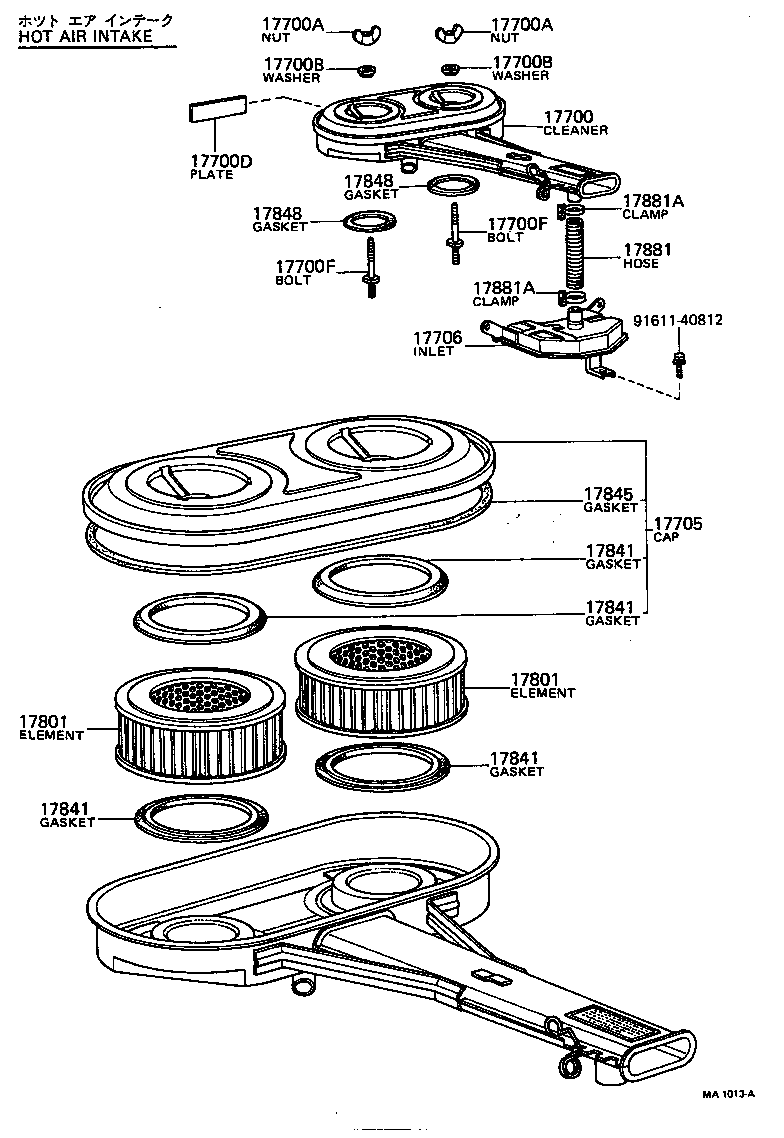

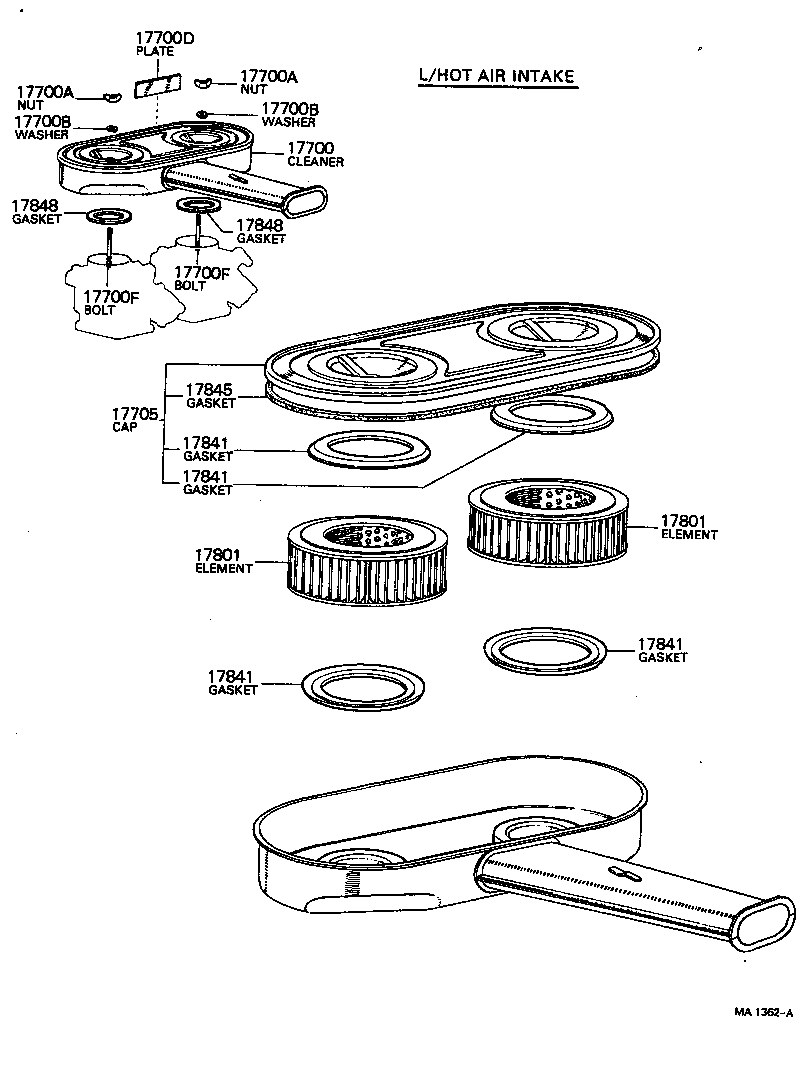

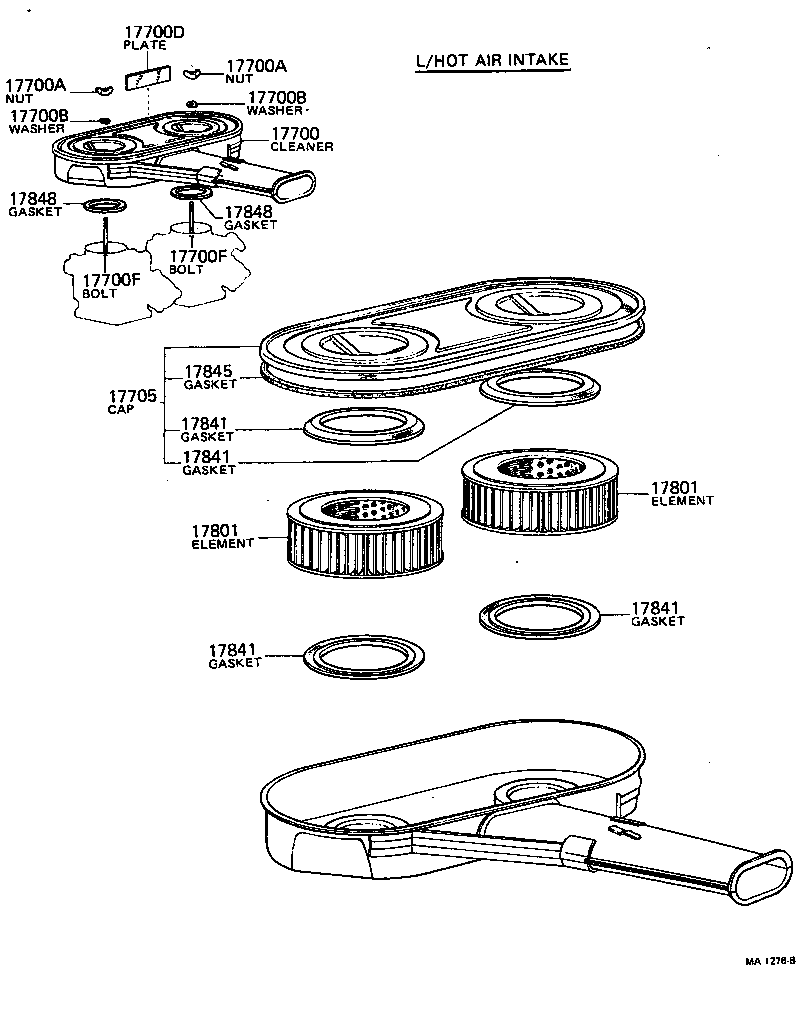

Figure MA1361A MA1361A 1970-12 → 1973-08 Figure MA1011B MA1011B 1970-12 → 1973-08 Figure MA1260C MA1260C 1973-09 → 1977-07 Figure MA1171D MA1171D 1973-09 → 1977-07 Figure MA1362A MA1362A 1972-08 → 1973-03 Figure MA0509B MA0509B 1972-08 → 1973-03 Figure MA1276B MA1276B 1973-04 → 1977-07 Figure MA1013A MA1013A 1973-04 → 1977-07

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700D Plate, Engine Caution
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
