Toyota Carina
1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe
Discontinued model
Data version 1977-09

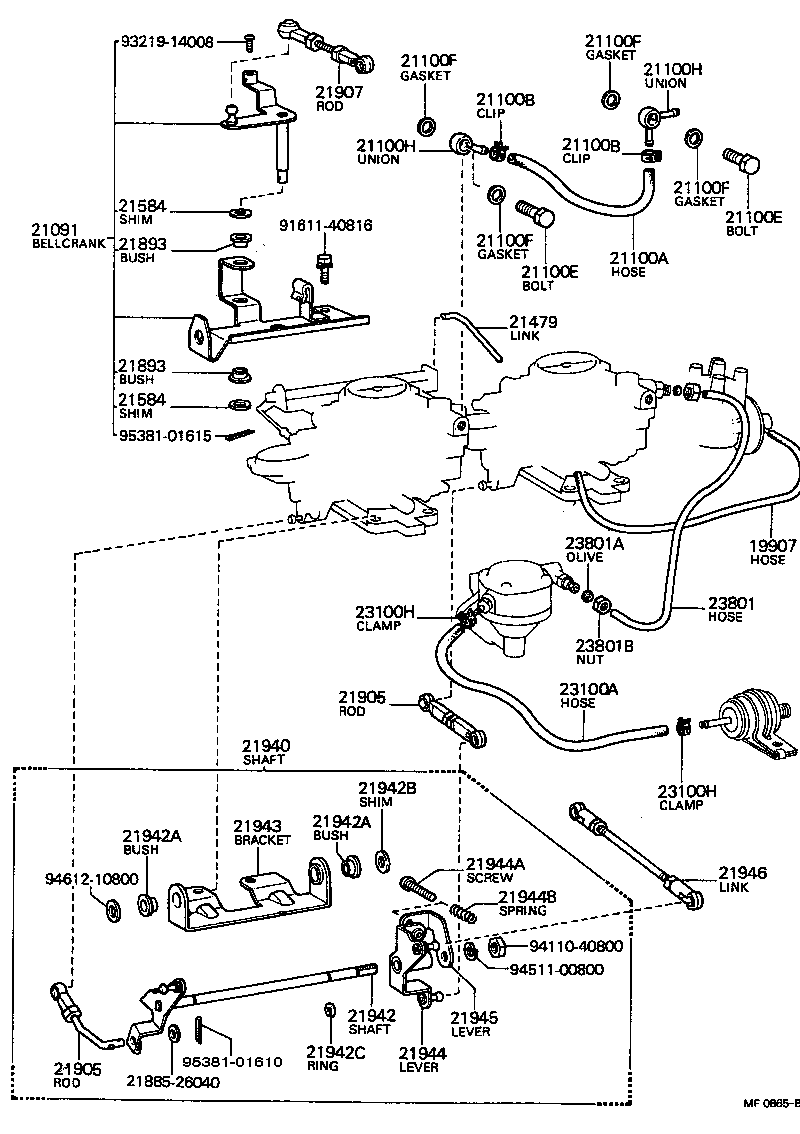

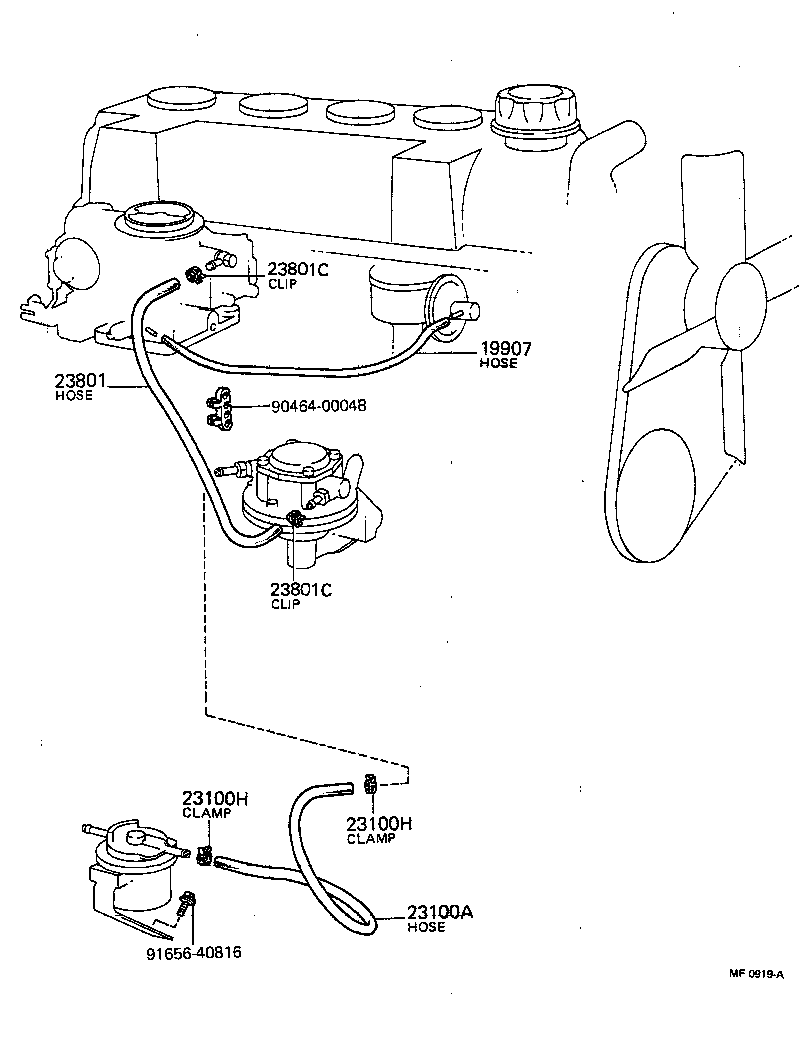

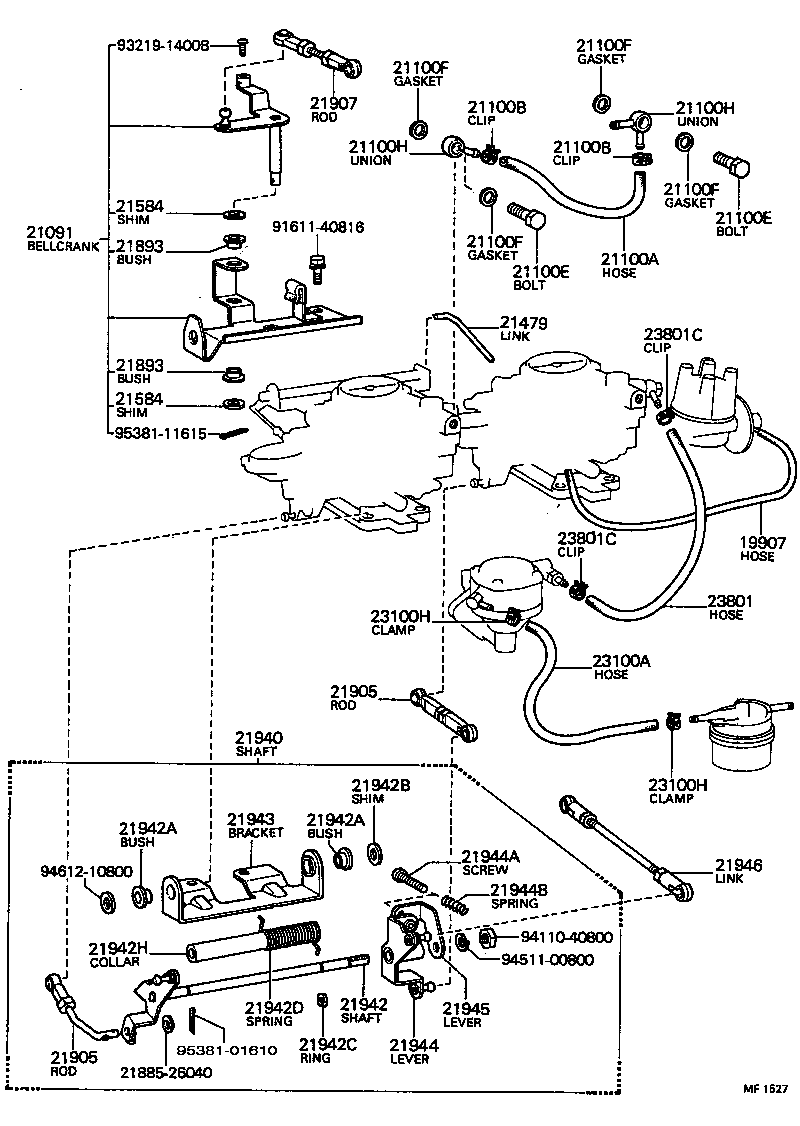

Fuel Pipe & Clamp
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 19907 | Hose, Vacuum, NO.1 |
| 21091 | Bellcrank Sub-assy, Accelerator |
| 21100A | Hose(FOR CARBURETOR) |
| 21100B | Clip(FOR CARBURETOR) |
| 21100E | Bolt, Carburetor TO Carburetor Hose Union |
| 21100F | Gasket, Carburetor TO Carburetor Hose Union Bolt |
| 21100H | Union(FOR CARBURETOR) |
| 21479 | Link, Choke Lever, NO.2 |
| 21584 | Shim, Choke Rod Bellcrank Shaft |
| 21893 | Bush, Choke Rod Bellcrank Shaft |
| 21905 | Rod Sub-assy, Accelerator Connecting |
| 21907 | Rod Sub-assy, Choke Connecting |
| 21940 | Shaft Assy, Accelerator Link |
| 21942 | Shaft, Accelerator Link |
| 21942A | Bush(FOR ACCELERATOR LINK SHAFT) |
| 21942B | Shim, 1ST Throttle Shaft |
| 21942C | Ring, Retainer(FOR ACCELERATOR LINK SHAFT) |
| 21942D | Spring(FOR ACCELERATOR LINK SHAFT) |
| 21942H | Collar |
| 21943 | Bracket(FOR ACCELERATOR LINK SHAFT) |
| 21944 | Lever, Accelerator Link Shaft, Rear |
| 21944A | Screw(FOR ACCELERATOR LINK SHAFT) |
| 21944B | Spring(FOR ACCELERATOR LINK SHAFT) |
| 21945 | Lever, Adjusting(FOR ACCELERATOR LINK SHAFT) |
| 21946 | Link, Connecting(FOR ACCELERATOR LINK SHAFT) |
| 23100A | Hose, Fuel |
| 23100H | Clip(FOR FUEL HOSE) |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801A | Olive(FOR FUEL PIPE) |
| 23801B | Nut, Union(FOR FUEL PIPE) |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
