Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

15 part groups · 3 illustrations

Illustrations

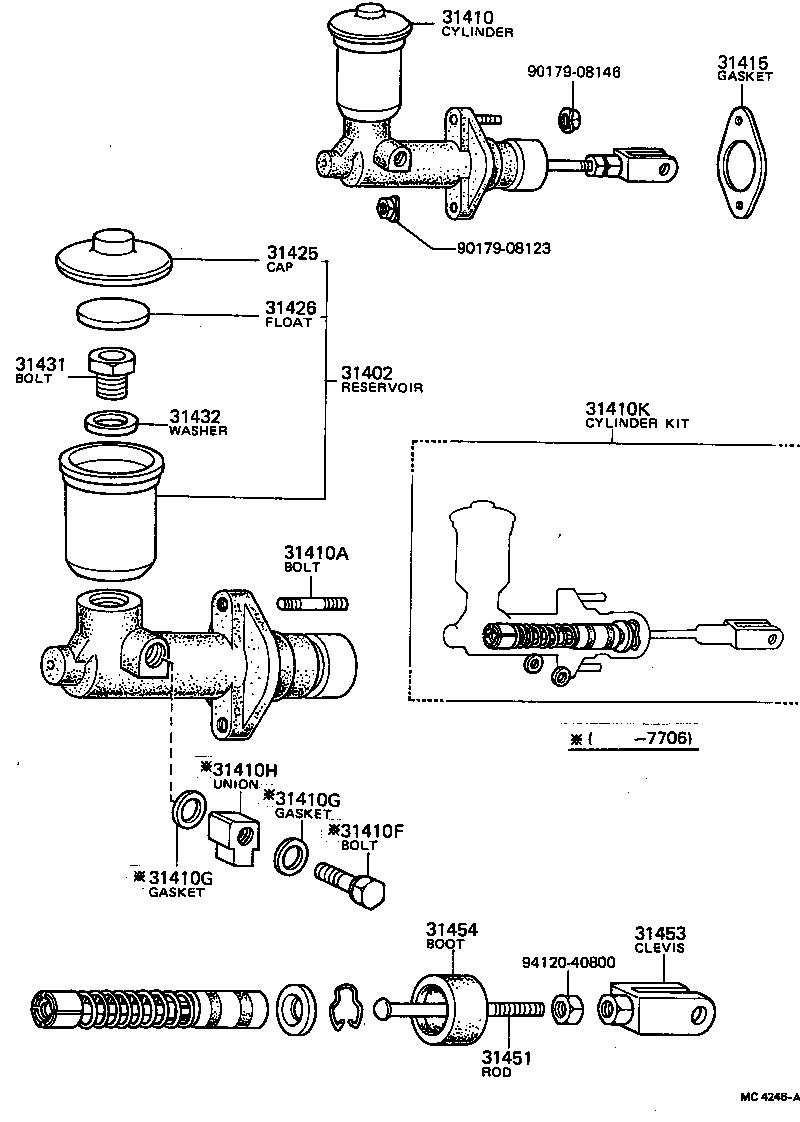

Figure MC4293A MC4293A 1970-12 → 1975-09 Figure MC4293A MC4293A 1975-10 → 1977-07 Figure MC4246A MC4246A 1975-10 → 1977-07

Part groups

PNCDescription
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31410F Bolt, Union(FOR CLUTCH MASTER CYLINDER)
31410G Gasket(FOR CLUTCH MASTER CYLINDER UNION)
31410H Union(FOR CLUTCH MASTER CYLINDER)
31410K Cylinder Kit, Clutch Master
31415 Gasket, Clutch Master Cylinder
31425 Cap, Clutch Master Cylinder Reservoir Filler
31426 Float, Clutch Master Cylinder Reservoir
31431 Bolt, Clutch Master Cylinder Reservoir Set
31432 Washer, Clutch Reservoir Set Bolt
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
