Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speedometer Driven Gear (MTM)

8 part groups · 2 illustrations

Illustrations

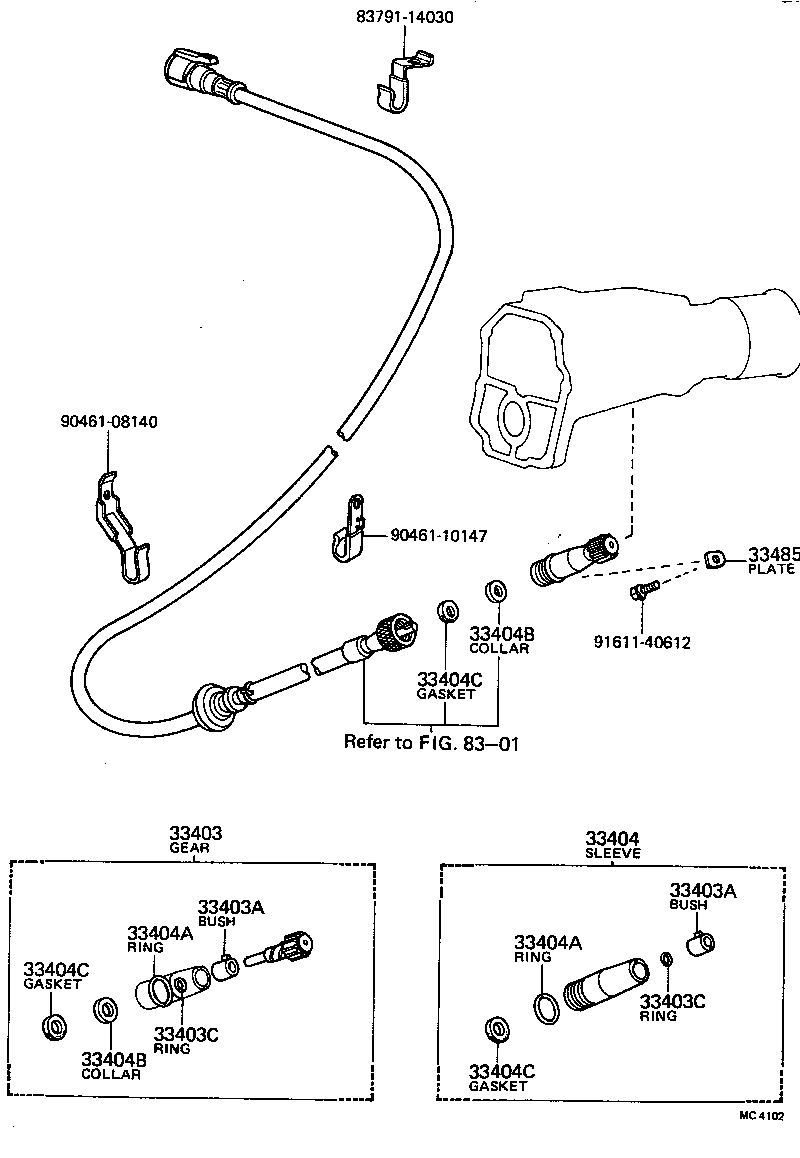

Figure MC3375B MC3375B 1970-12 → 1975-09 Figure MC4102 MC4102 1975-10 → 1977-07

Part groups

PNCDescription
33403 Gear Sub-assy, Speedometer Driven (MTM)
33403A Bush (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
33403C Ring, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
33404 Sleeve Sub-assy, Speedometer Shaft (MTM)
33404A Ring, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404B Collar, Speedometer Flexible Tube Shaft Gasket (MTM)
33404C Gasket, Speedometer Flexible Tube Shaft (MTM)
33485 Plate, Speedometer Sleeve Lock (MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
