Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

40 part groups · 5 illustrations

Illustrations

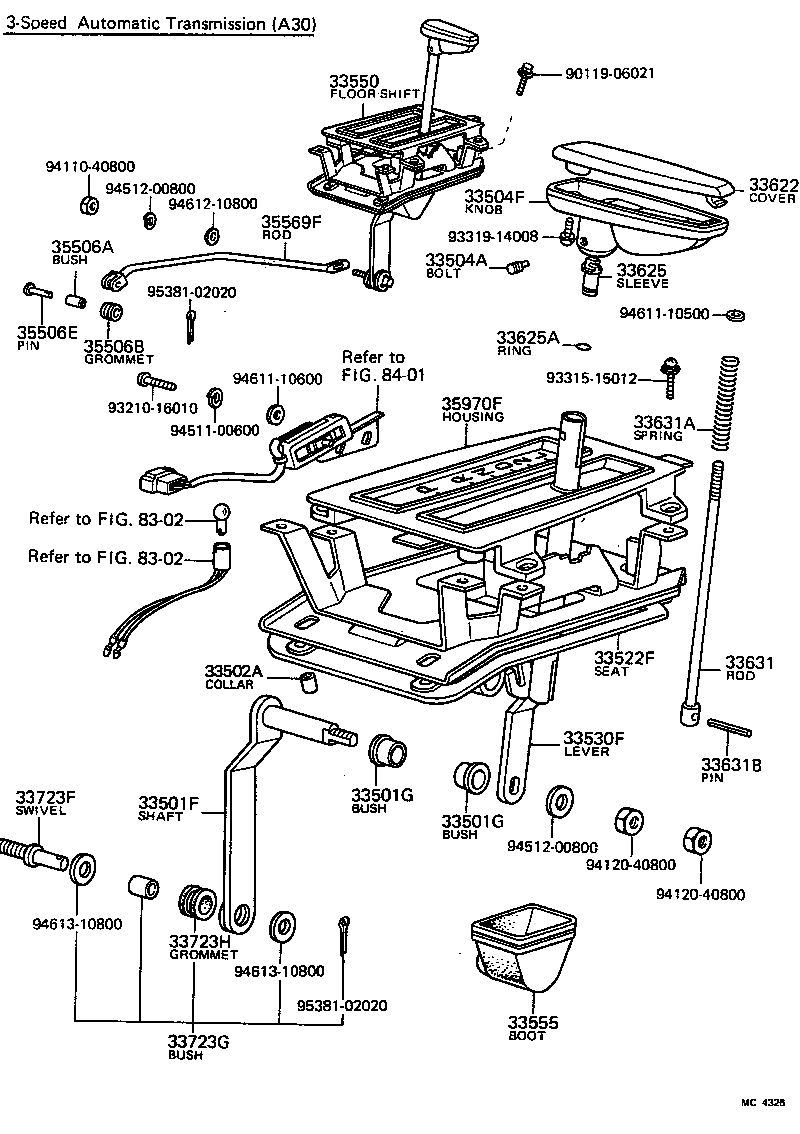

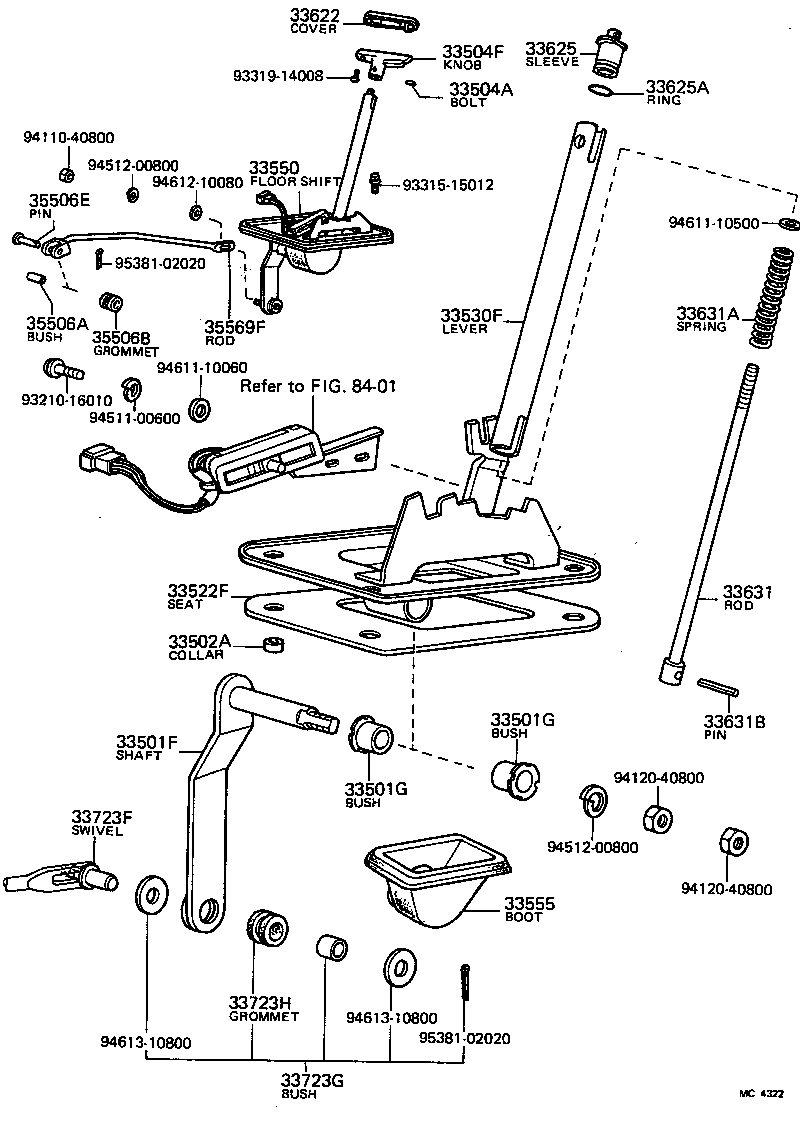

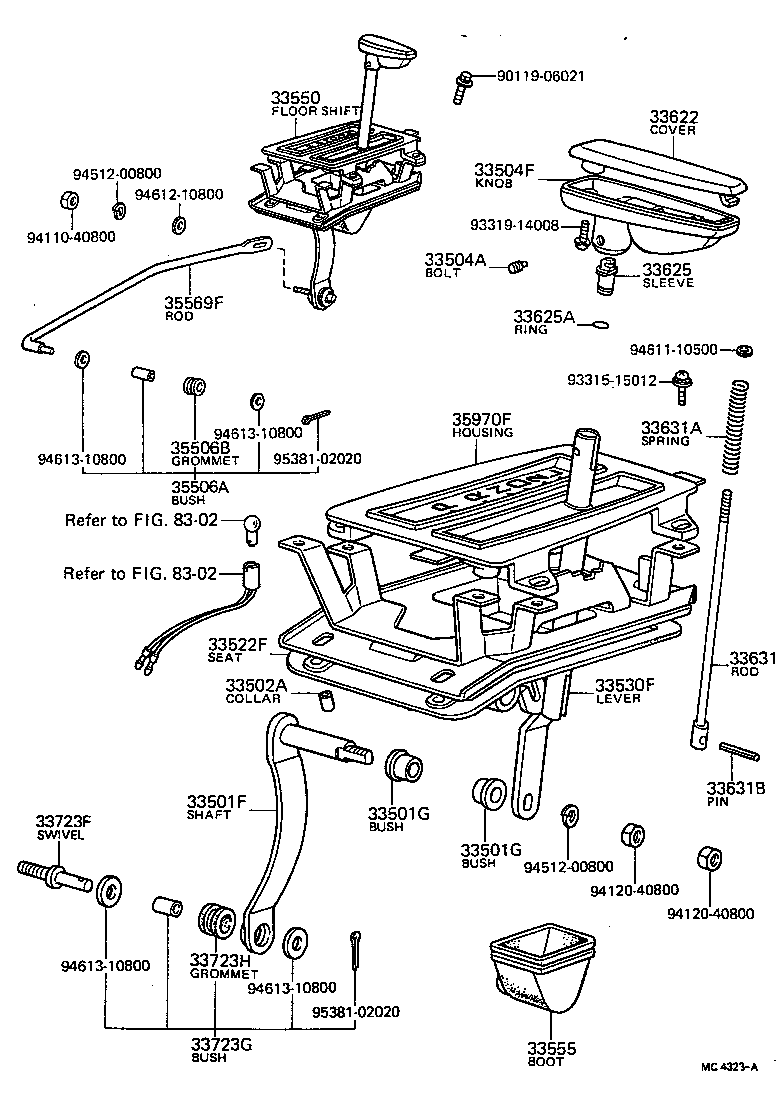

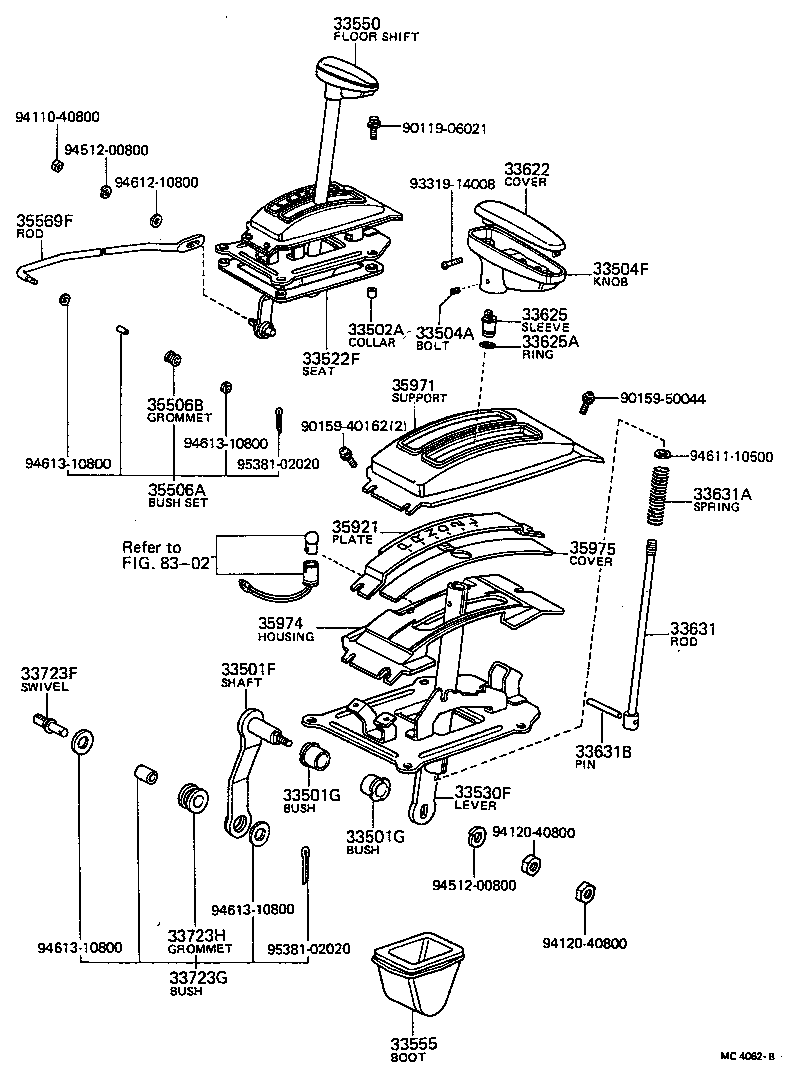

Figure MC3518B MC3518B 1970-12 → 1977-07 Figure MC4322 MC4322 1970-12 → 1972-07 Figure MC4326 MC4326 1972-08 → 1973-08 Figure MC4323A MC4323A 1973-08 → 1975-09 Figure MC4062B MC4062B 1975-10 → 1977-07

Part groups

PNCDescription
33255 Plate, Select Return
33255A Bolt, Select Return Plate Set
33255B Ball, Select Return Plate
33255C Spring, Select Return Plate Ball
33258 Seat, Select Return Spring
33258A Spring, Select Return
33262 Shaft, Select Return
33262A Bush, Select Return
33262B Gasket (FOR SELECT RETURN SHAFT)
33501F Shaft Sub-assy, Control (FOR FLOOR SHIFT)
33501G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33502A Collar (FOR FLOOR SHIFT SETTING)
33504A Bolt OR Pin (FOR SHIFT LEVER KNOB SETTING)
33504F Knob Sub-assy, Shift Lever
33506C Pin, Shift Lever Retainer Ring
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33522F Seat, Shift Lever Plate (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33555 Boot, Shift Lever
33584 Gasket, Control Shift Lever Retainer (FOR COLUMN SHIFT)
33599 Gasket, Control Shift Lever Retainer, NO.2
33622 Cover, Shift Lever Knob, NO.1
33625 Sleeve, Shift Lever Knob
33625A Ring, O(FOR SHIFT LEVER KNOB SLEEVE)
33631 Rod, Detent
33631A Spring, Compression (FOR DETENT ROD)
33631B Pin, Slotted Spring (FOR DETENT ROD)
33723F Swivel, Connecting Rod (FOR FLOOR SHIFT)
33723G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33723H Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
35506A Bush (FOR MANUAL VALVE LEVER SHAFT)
35506B Grommet (FOR MANUAL VALVE LEVER SHAFT)
35506E Pin, W/Hole (FOR MANUAL VALVE LEVER)
35569F Rod, Transmission Control, 1ST (FOR FLOOR SHIFT)
35921 Plate, Control Position Indicator
35970F Housing Assy, Position Indicator
35971 Support, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
