Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speedometer Driven Gear (ATM)

8 part groups · 2 illustrations

Illustrations

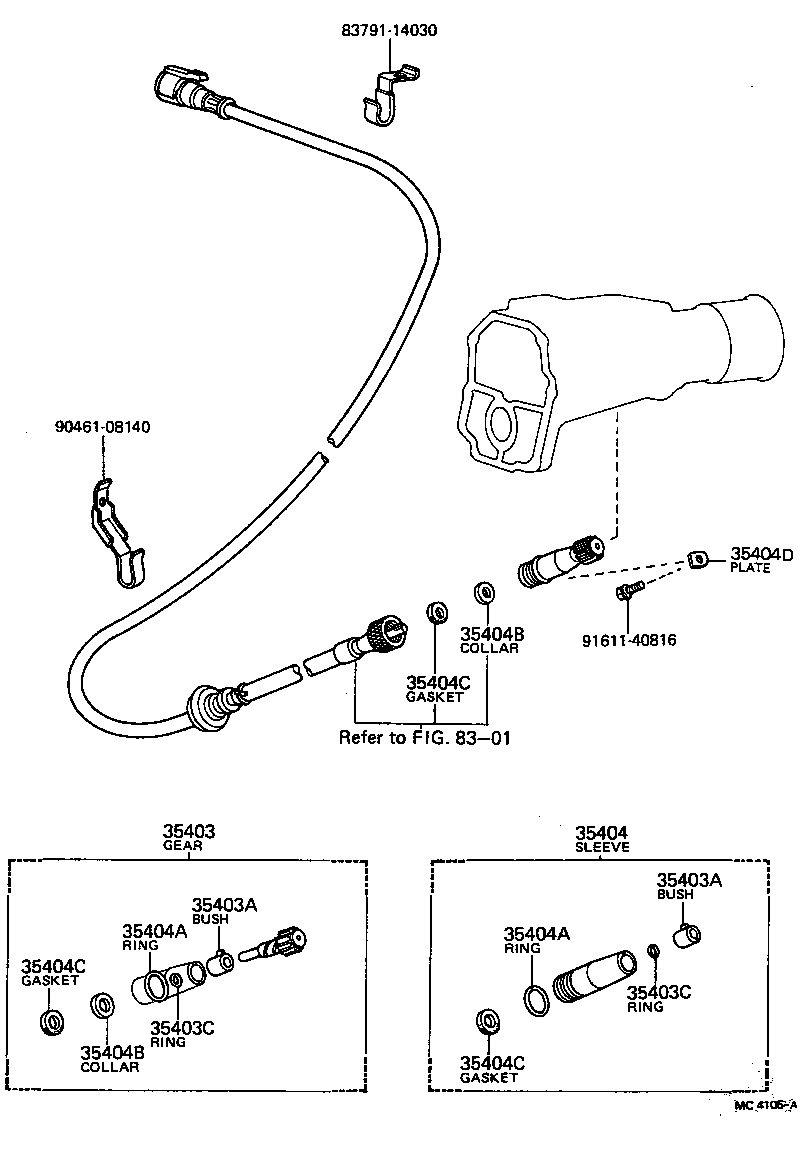

Figure MC3384A MC3384A 1970-12 → 1975-09 Figure MC4105A MC4105A 1975-10 → 1977-07

Part groups

PNCDescription
35403 Gear Sub-assy, Speedometer Driven (ATM)
35403A Bush (FOR ATM SPEEDOMETER SHAFT SLEEVE)
35403C Ring, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
35404 Sleeve Sub-assy, Speedometer Shaft (ATM)
35404A Ring, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
35404B Collar, Speedometer Flexible Tube Shaft Gasket (ATM)
35404C Gasket, Speedometer Flexible Tube Shaft (ATM)
35404D Plate, Speedometer Sleeve Lock (ATM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
