Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09

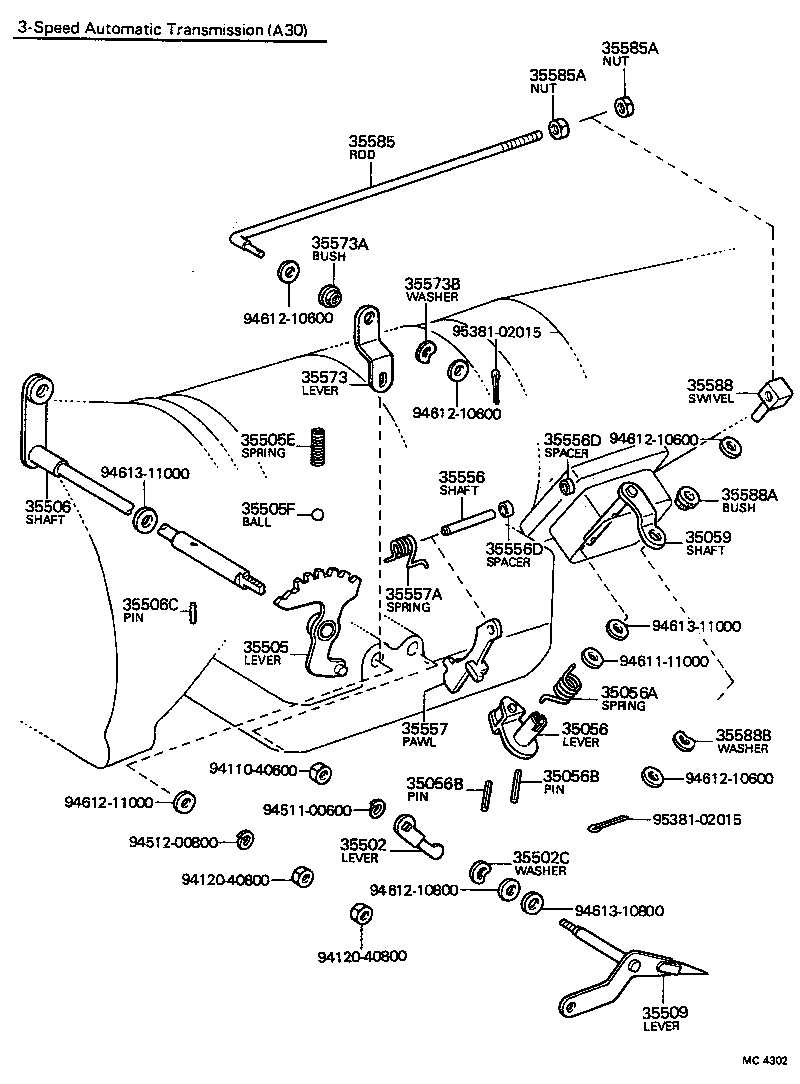

Throttle Link & Valve Lever (ATM)

38 part groups · 3 illustrations

PNC	Description
35056	Lever Sub-assy, Parking Lock W/Roller
35056A	Spring, Parking Lock Lever
35056B	Pin, Parking Lock Lever
35059	Shaft Sub-assy, Parking Lock
35502	Lever Sub-assy, Throttle Valve
35502C	Washer, Wave (FOR THROTTLE VALVE INNER LEVER)
35503A	Clip(FOR THROTTLE LINK CONNECTING ROD)
35505	Lever Sub-assy, Manual Valve
35505E	Spring, Compression (FOR MANUAL VALVE LEVER)
35505F	Ball (FOR MANUAL VALVE LEVER)
35506	Shaft Sub-assy, Manual Valve Lever
35506C	Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
35506F	Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
35509	Lever Sub-assy, Throttle Valve, Outer
35510	Bracket Assy, Throttle Link Bellcrank, NO.2
35520	Cable Assy, Throttle
35520A	Pin, Throttle Cable
35520B	Ring, O(FOR THROTTLE CABLE)
35523	Clamp, Throttle Cable
35525	Bracket, Throttle Cable
35535	Rod, Throttle Link Connecting, 2ND
35536	Rod, Throttle Link Connecting, 3RD
35542	End, Throttle Link Connecting Rod
35556	Shaft, Parking Lock Pawl
35556D	Spacer (FOR PARKING LOCK PAWL SHAFT)
35556E	Ring, E (FOR PARKING LOCK PAWL SHAFT)
35557	Pawl, Parking Lock
35557A	Spring, Torsion (FOR PARKING LOCK PAWL)
35572	Lever, Transmission Control Shaft, RH
35573	Lever, Transmission Control Shaft, LH
35573A	Bush (FOR TRANSMISSION CONTROL SHAFT LEVER)
35573B	Washer (FOR TRANSMISSION CONTROL SHAFT LEVER SETTING)
35585	Rod, Parking Lock
35585A	Nut (FOR PARKING LOCK ROD SETTING)
35588	Swivel, Parking Lock Rod
35588A	Bush (FOR PARKING LOCK ROD SWIVEL)
35588B	Washer (FOR PARKING LOCK ROD SWIVEL)
35595	Bracket, Parking Lock Pawl

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
