Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

44 part groups · 9 illustrations

Illustrations

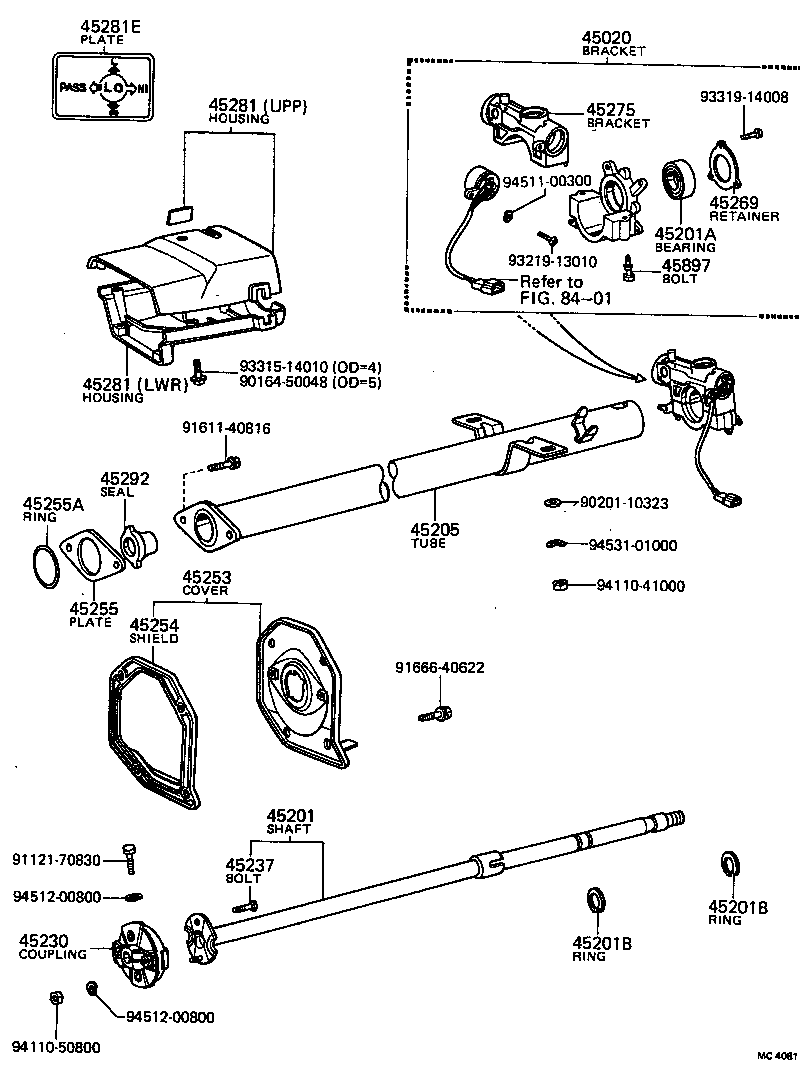

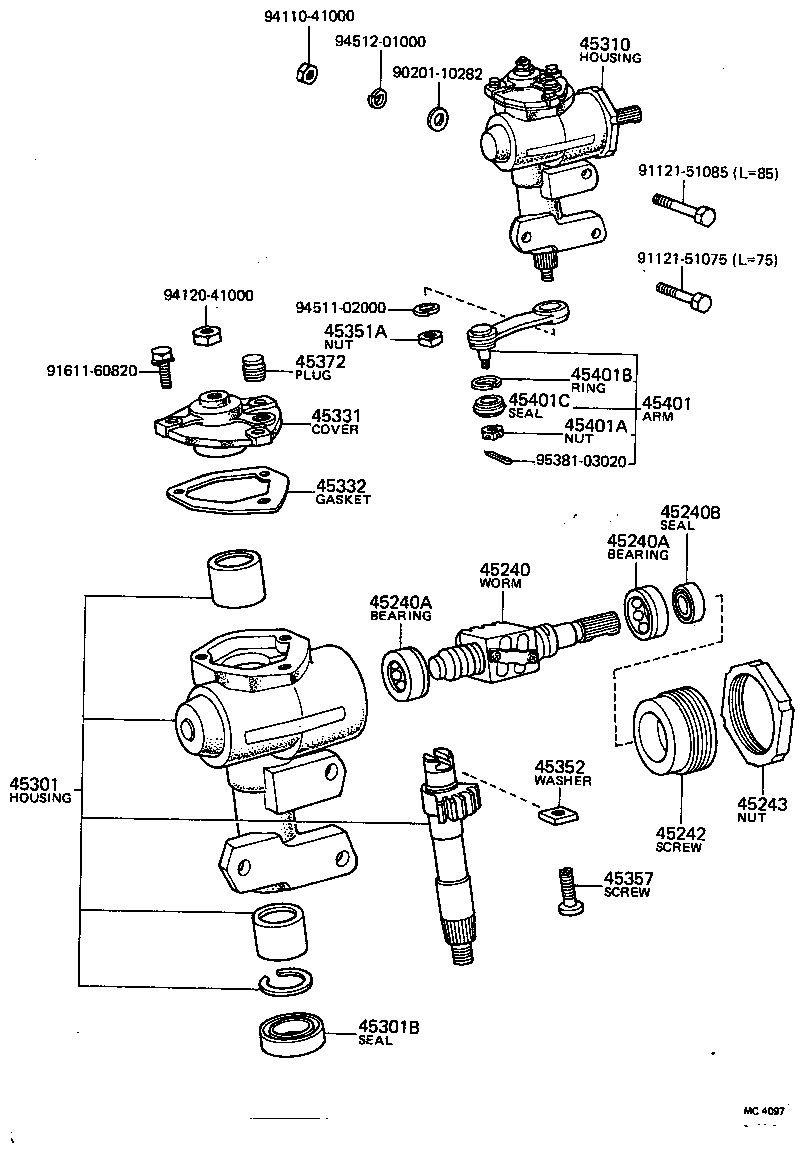

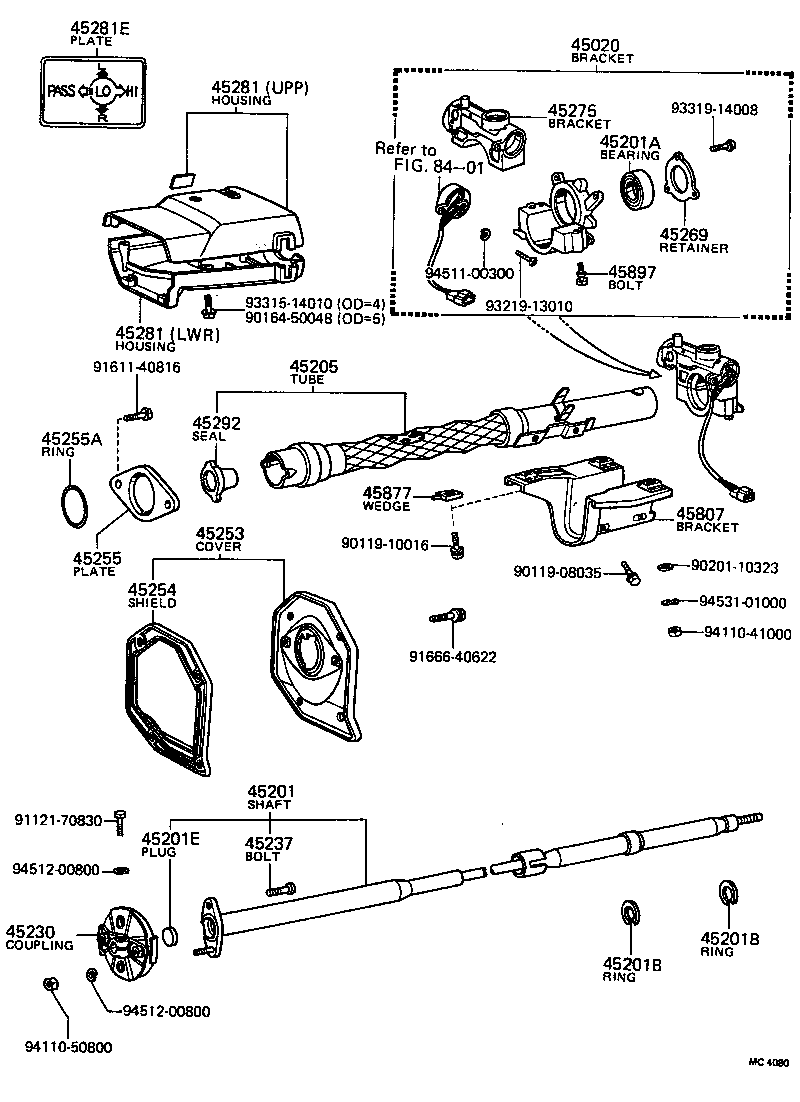

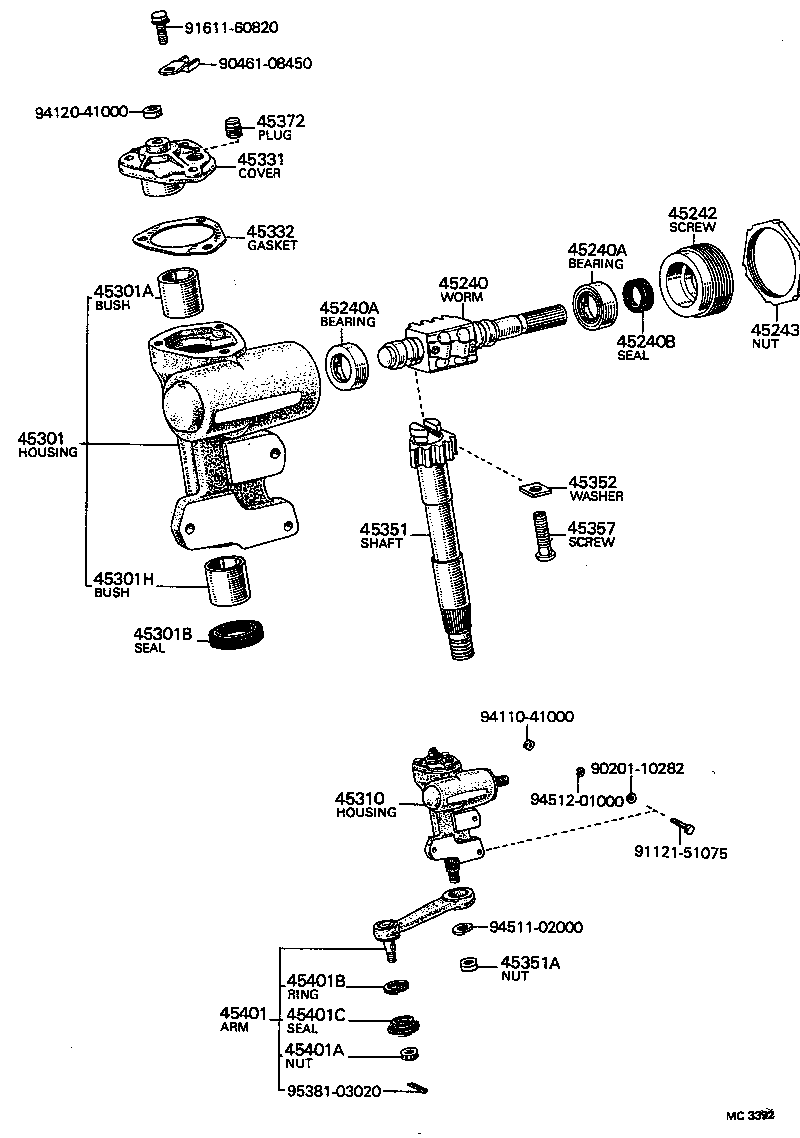

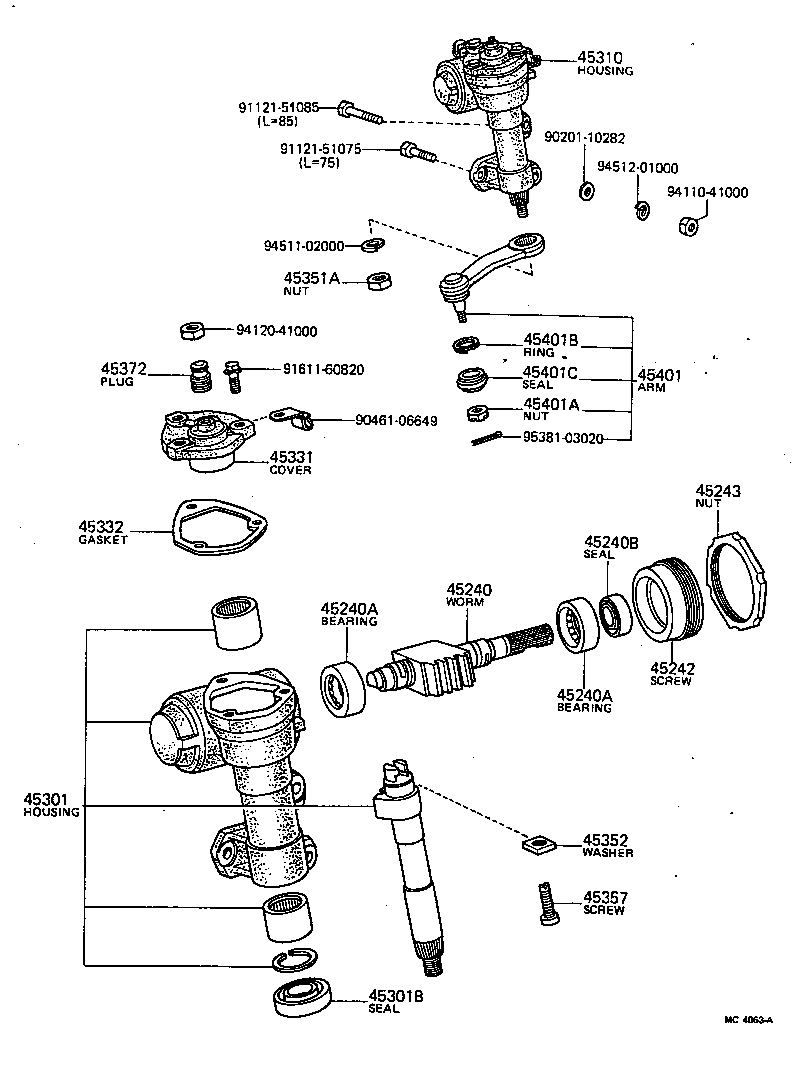

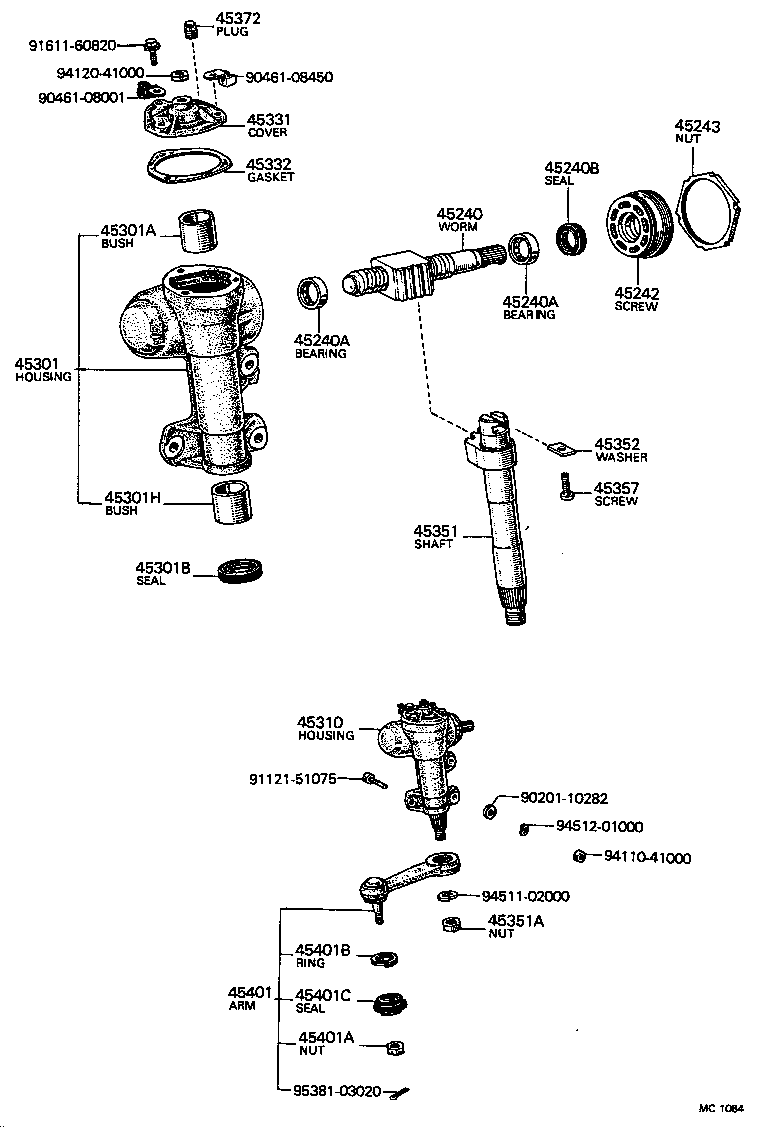

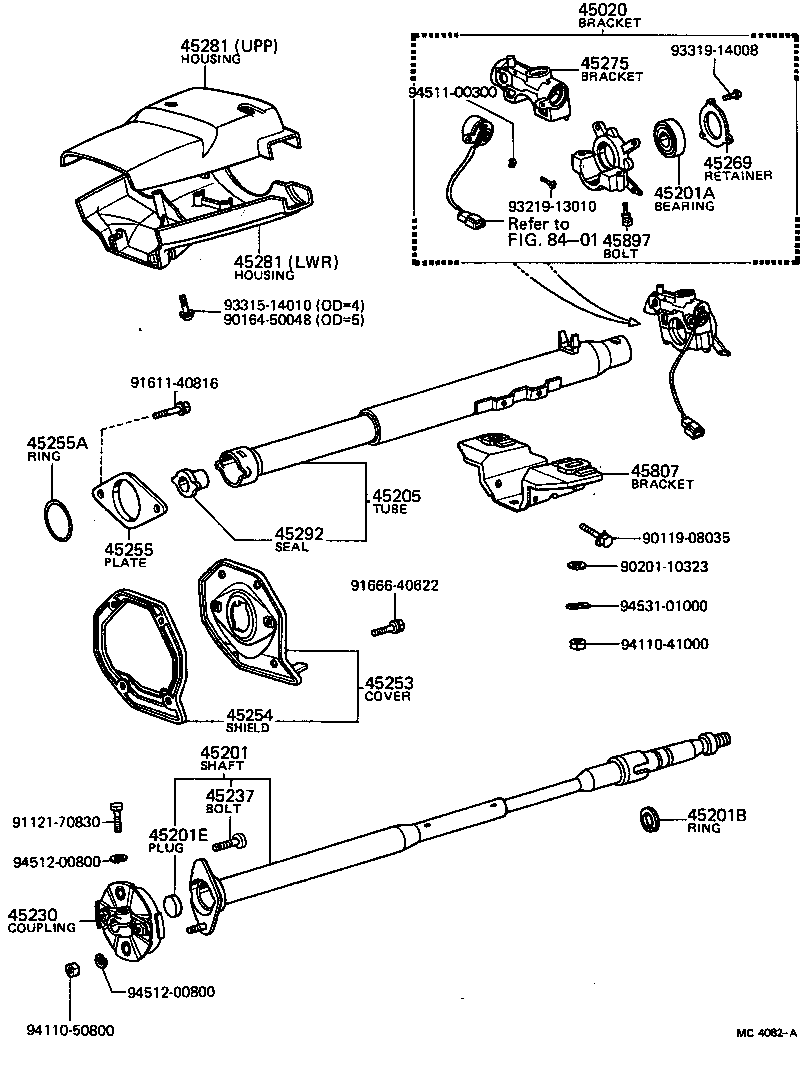

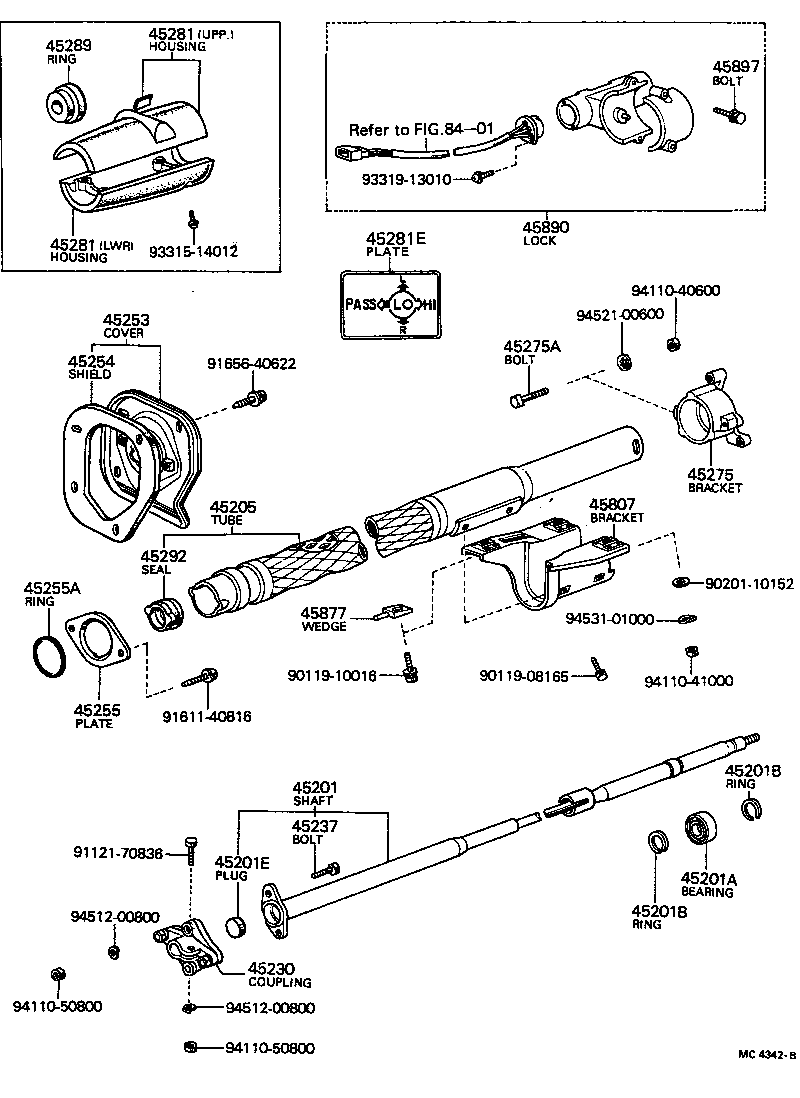

Figure MC2009D MC2009D 1970-12 → 1975-09 Figure MC4342B MC4342B 1970-12 → 1975-09 Figure MC4081 MC4081 1975-10 → 1977-07 Figure MC4080 MC4080 1975-10 → 1977-07 Figure MC4082A MC4082A 1975-10 → 1977-07 Figure MC1084 MC1084 1970-12 → 1975-09 Figure MC3392 MC3392 1970-12 → 1975-09 Figure MC4063A MC4063A 1975-10 → 1977-07 Figure MC4097 MC4097 1975-10 → 1977-07

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201E Plug, Plate(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45230 Coupling Assy, Flexible
45237 Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT)
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45243 Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45281E Plate, Safety Caution
45289 Ring, Steering Column Cover
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45401A Nut, Castle(FOR PITMAN ARM)
45401B Ring, Set(FOR PITMAN ARM)
45401C Seal, Dust(FOR PITMAN ARM)
45807 Bracket Sub-assy, Steering Column Upper Support
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45890 Lock Assy, Steering
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
