Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

22 part groups · 3 illustrations

Illustrations

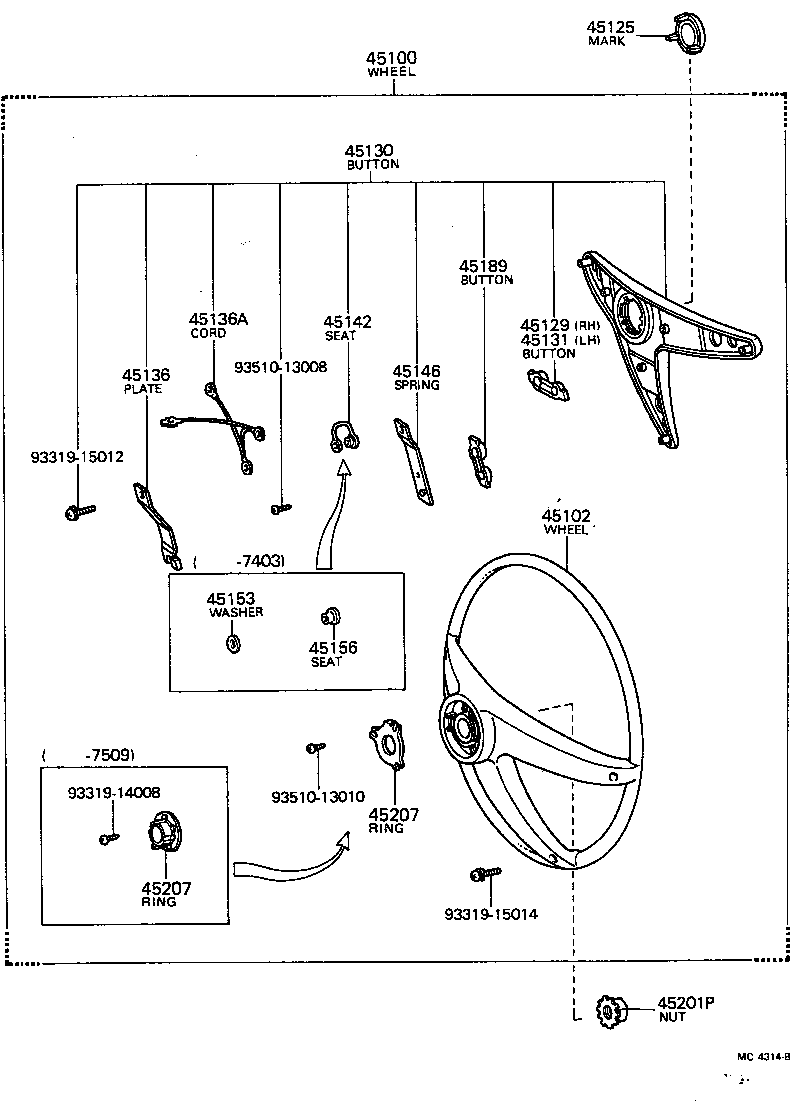

Figure MC4318B MC4318B 1970-12 → 1977-07 Figure MC4314B MC4314B 1970-12 → 1977-07 Figure MC4064A MC4064A 1975-10 → 1977-07

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45131A Cover, Steering Horn Button
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45153 Washer, Horn Button Set
45156 Seat, Horn Lead Spring
45180 Cover Sub-assy, Steering Wheel
45189 Button, Horn, NO.3
45193 Pin, Horn Button
45201C Washer, Spring(FOR STEERING WHEEL SET)
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
