Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

23 part groups · 9 illustrations

Illustrations

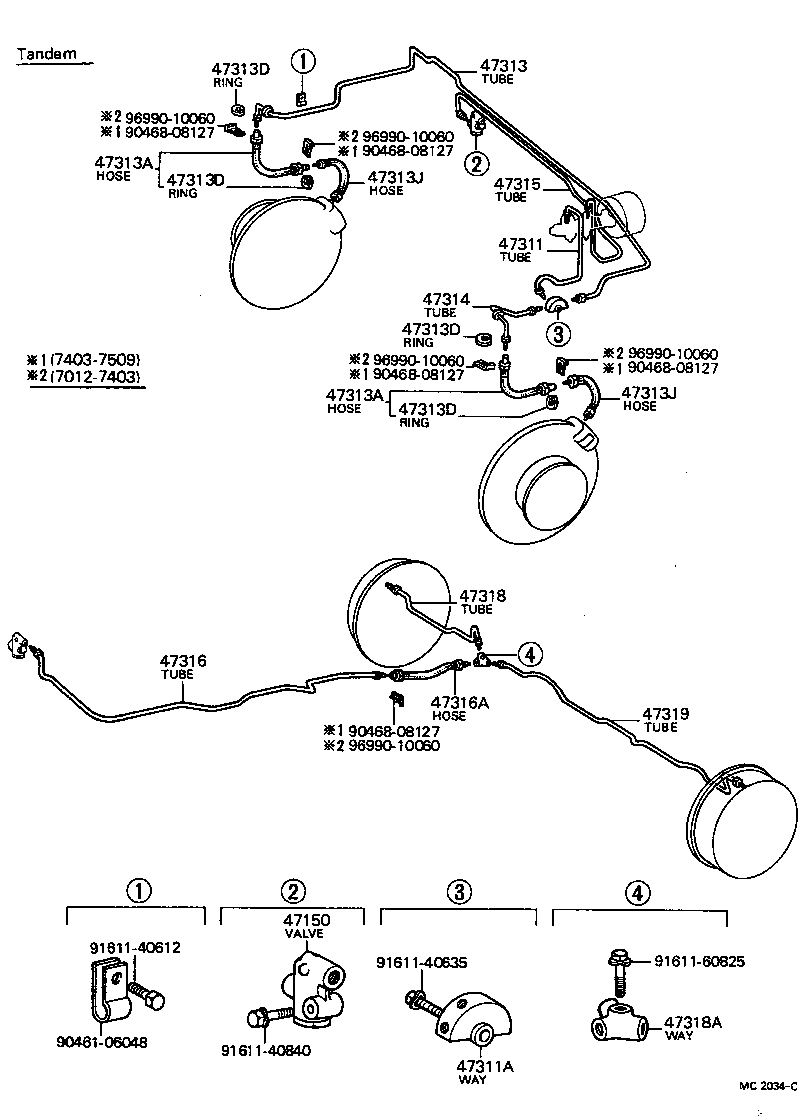

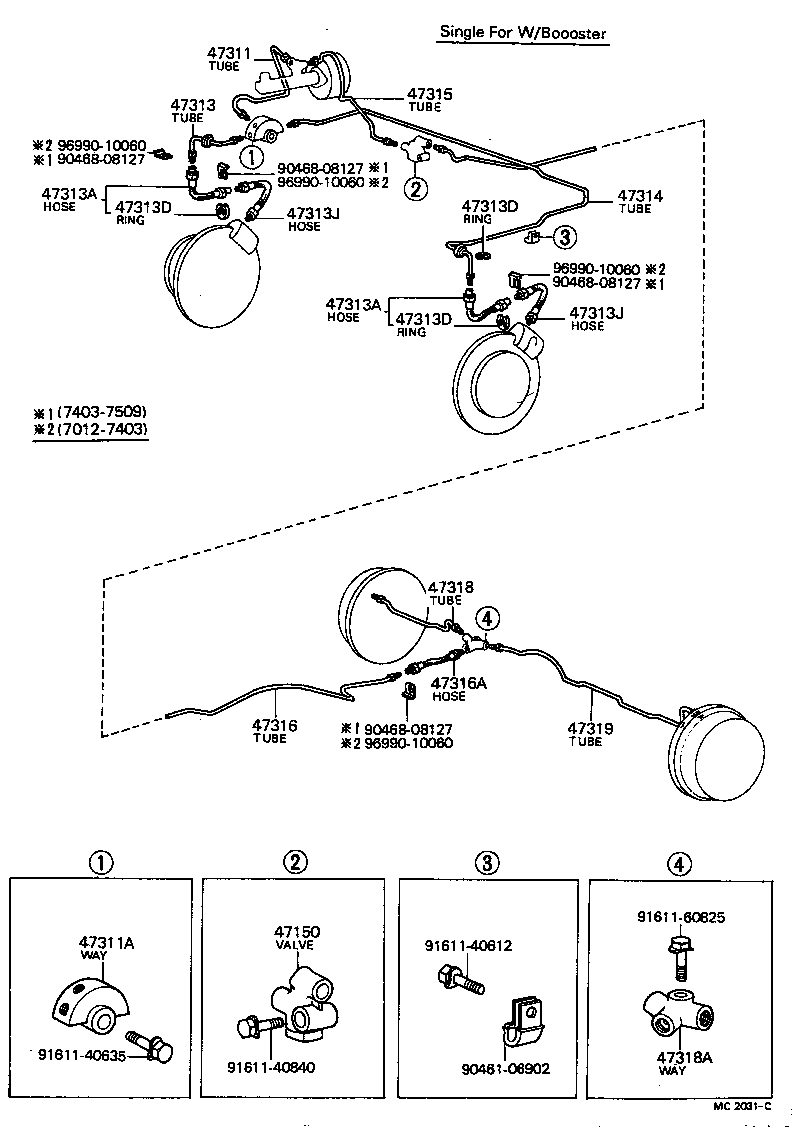

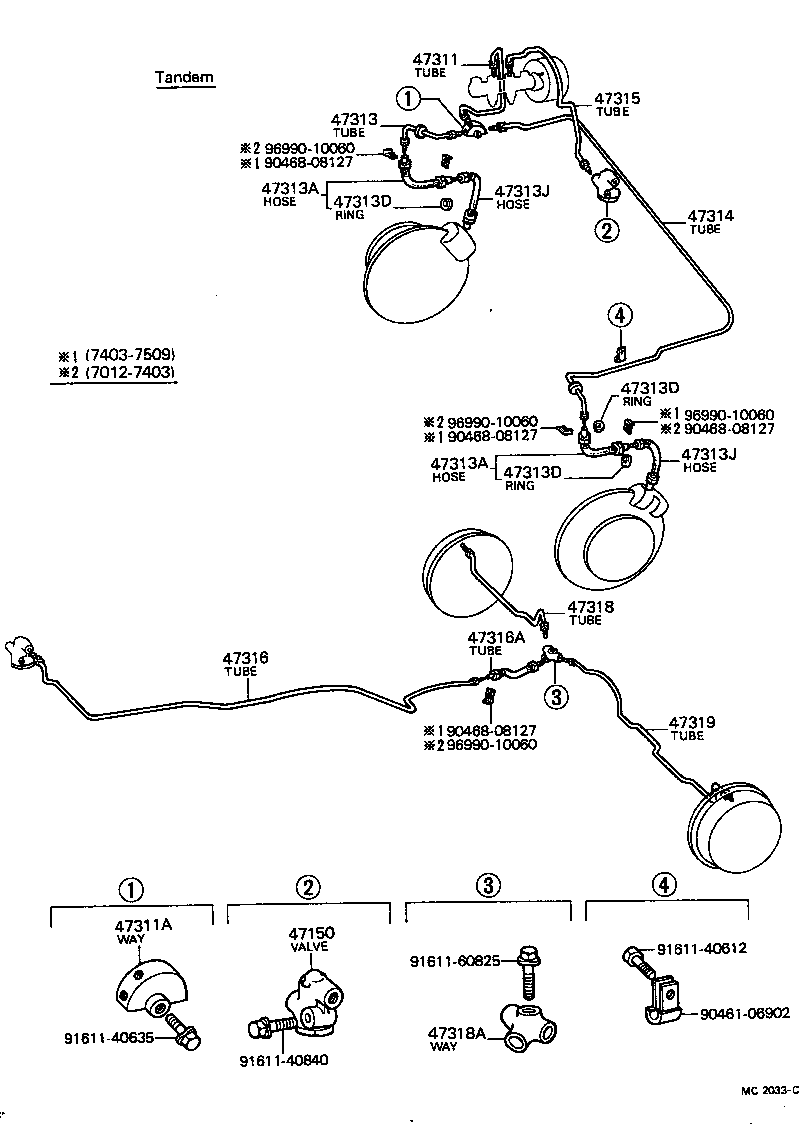

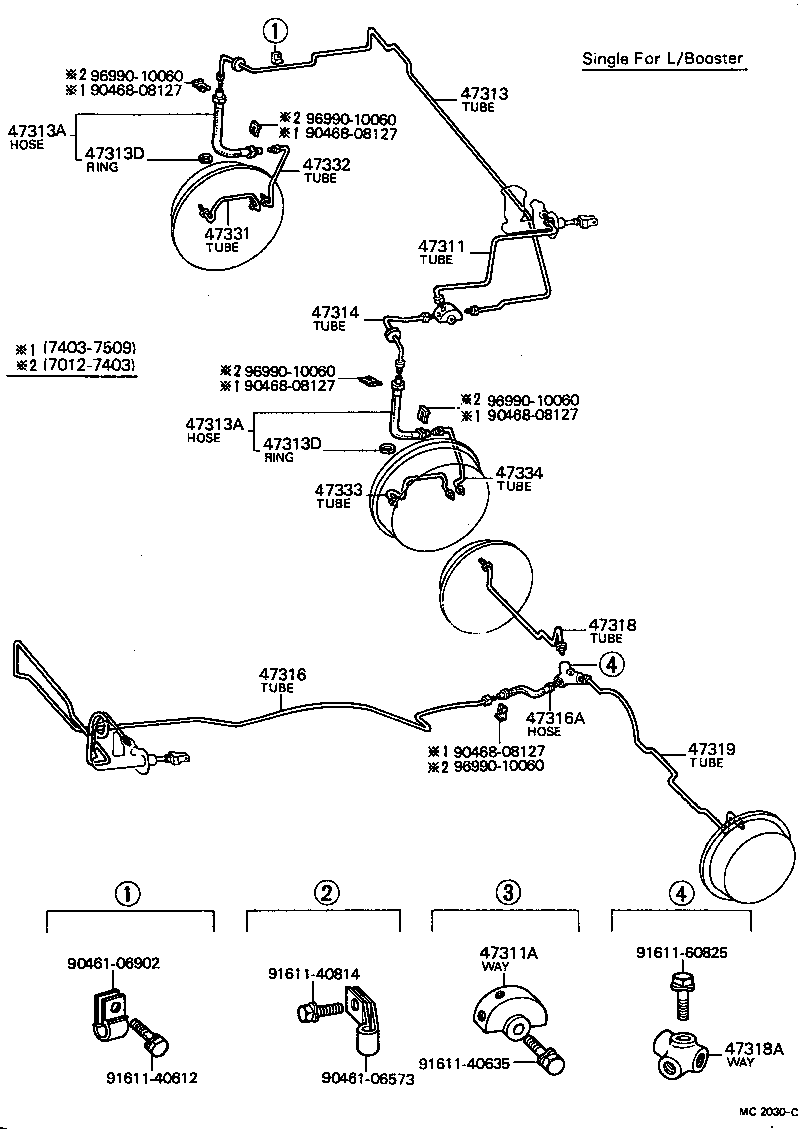

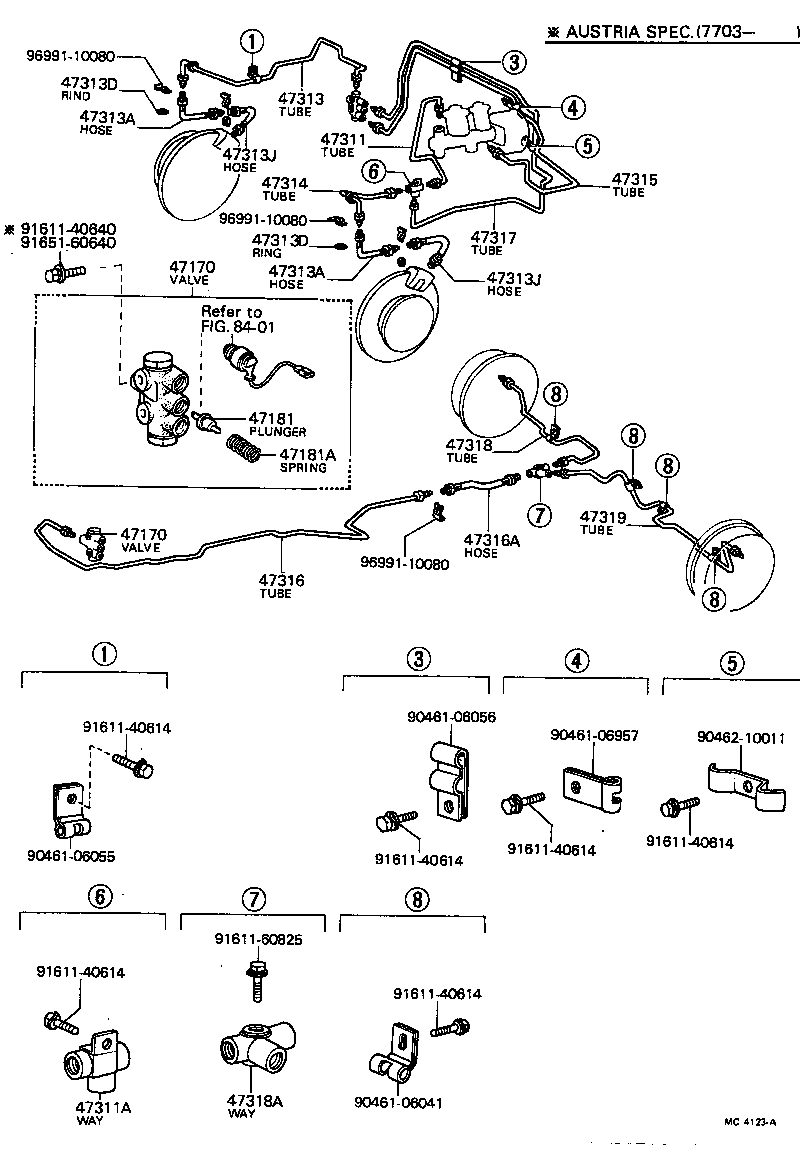

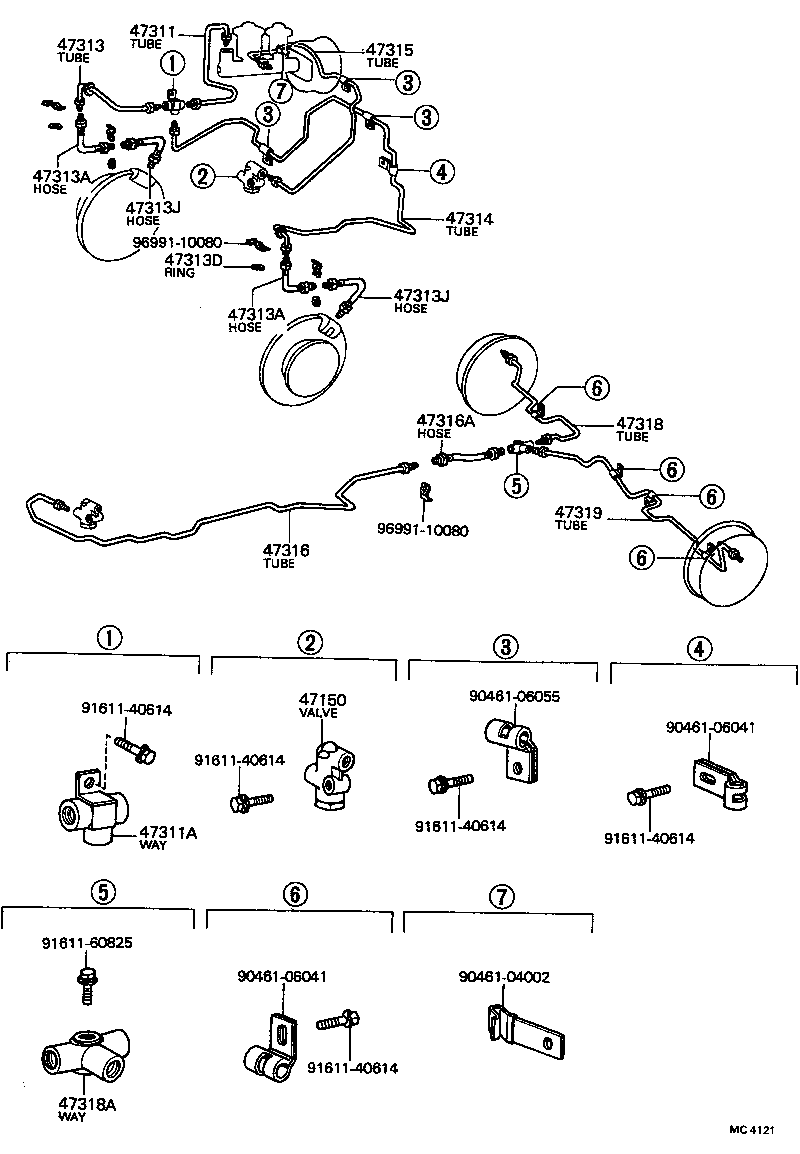

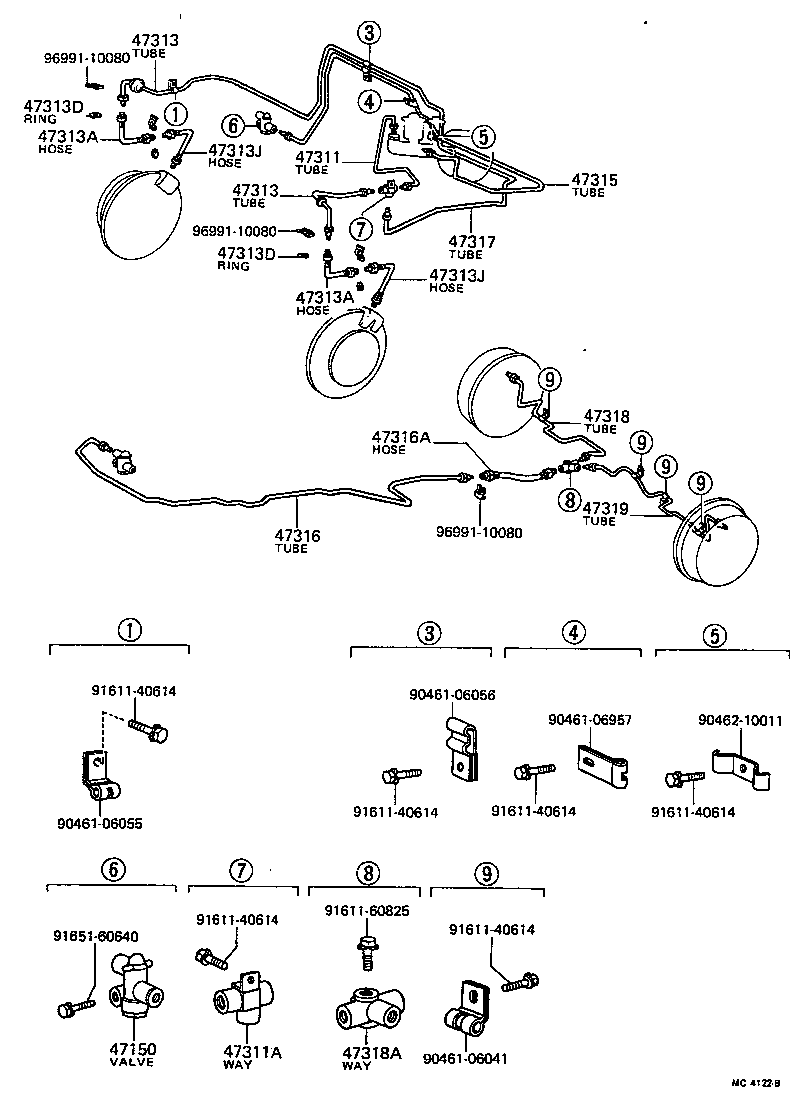

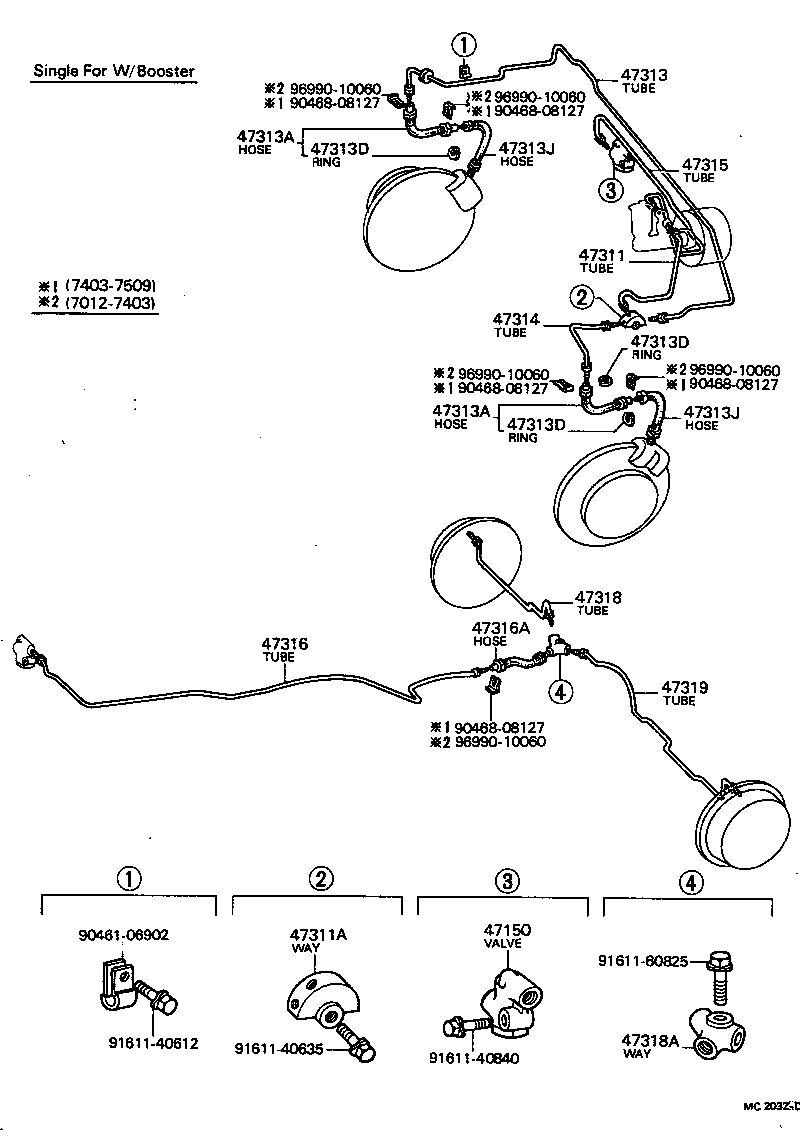

Figure MC2029C MC2029C 1970-12 → 1975-09 Figure MC2030C MC2030C 1970-12 → 1975-09 Figure MC2031C MC2031C 1970-12 → 1975-09 Figure MC2032D MC2032D 1970-12 → 1975-09 Figure MC2033C MC2033C 1970-12 → 1975-09 Figure MC2034C MC2034C 1970-12 → 1975-09 Figure MC4121 MC4121 1975-10 → 1977-07 Figure MC4122B MC4122B 1975-10 → 1977-07 Figure MC4123A MC4123A 1975-10 → 1977-07

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47170 Valve Assy, Brake Combination
47181 Plunger, Differential Switch
47181A Spring, Compression(FOR DIFFERENTIAL VALVE SWITCH)
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313C Grommet, NO.3(FOR FRONT BRAKE TUBE)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
