Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

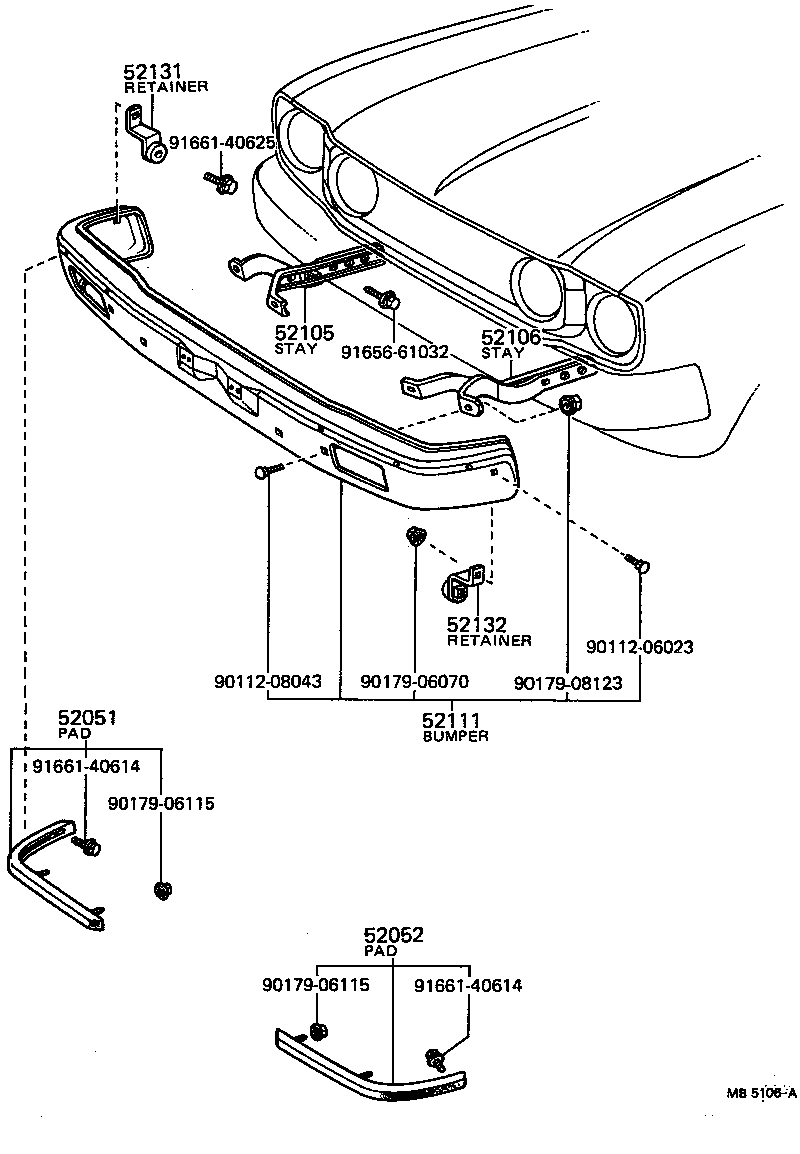

Figure MB2978B MB2978B 1970-12 → 1975-09 Figure MB5106A MB5106A 1975-10 → 1977-07

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52131 Retainer, Front Bumper Side, RH
52132 Retainer, Front Bumper Side, LH
52137A Retainer, Front Turn Signal Lamp, RH
52138A Retainer, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
