Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 3 illustrations

Illustrations

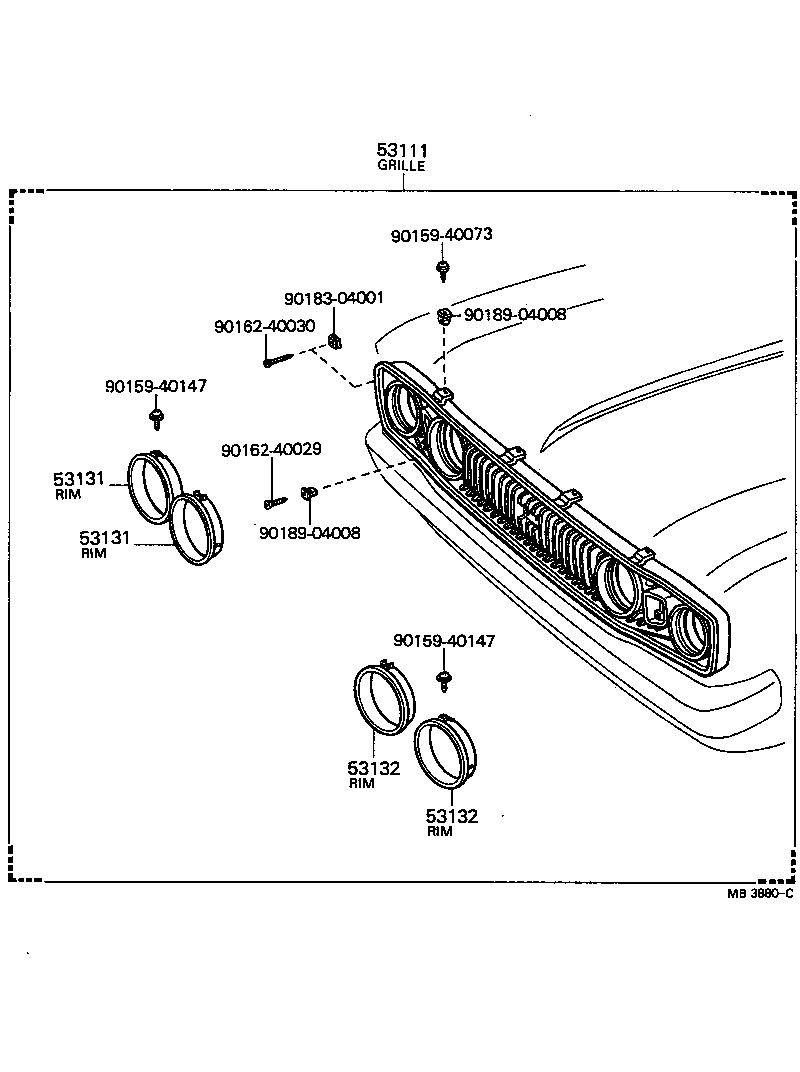

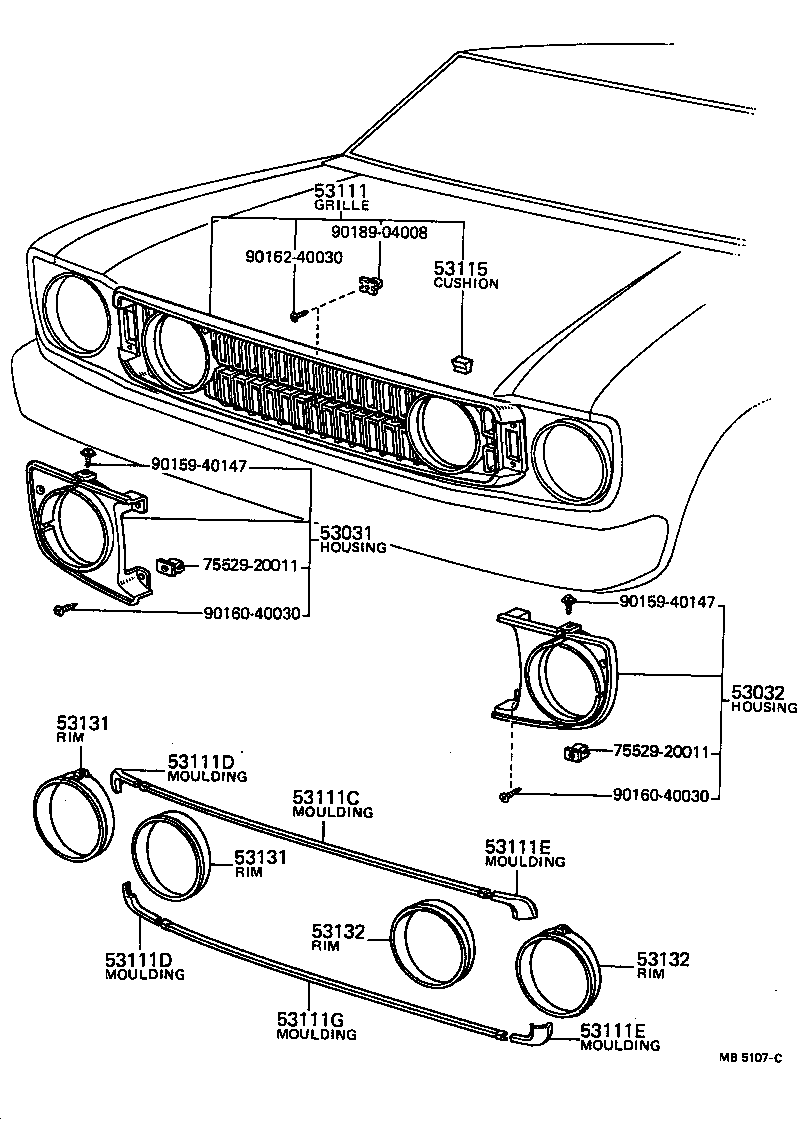

Figure MB4105C MB4105C 1970-12 → 1974-01 Figure MB3880C MB3880C 1974-01 → 1975-09 Figure MB5107C MB5107C 1975-10 → 1977-07

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53111G Moulding, Radiator Grille, Lower
53115 Cushion, Rubber(FOR RADIATOR GRILLE)
53126 Plate,Radiator Grille Set
53131 Rim, Headlamp, RH
53132 Rim, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
