Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

25 part groups · 2 illustrations

Illustrations

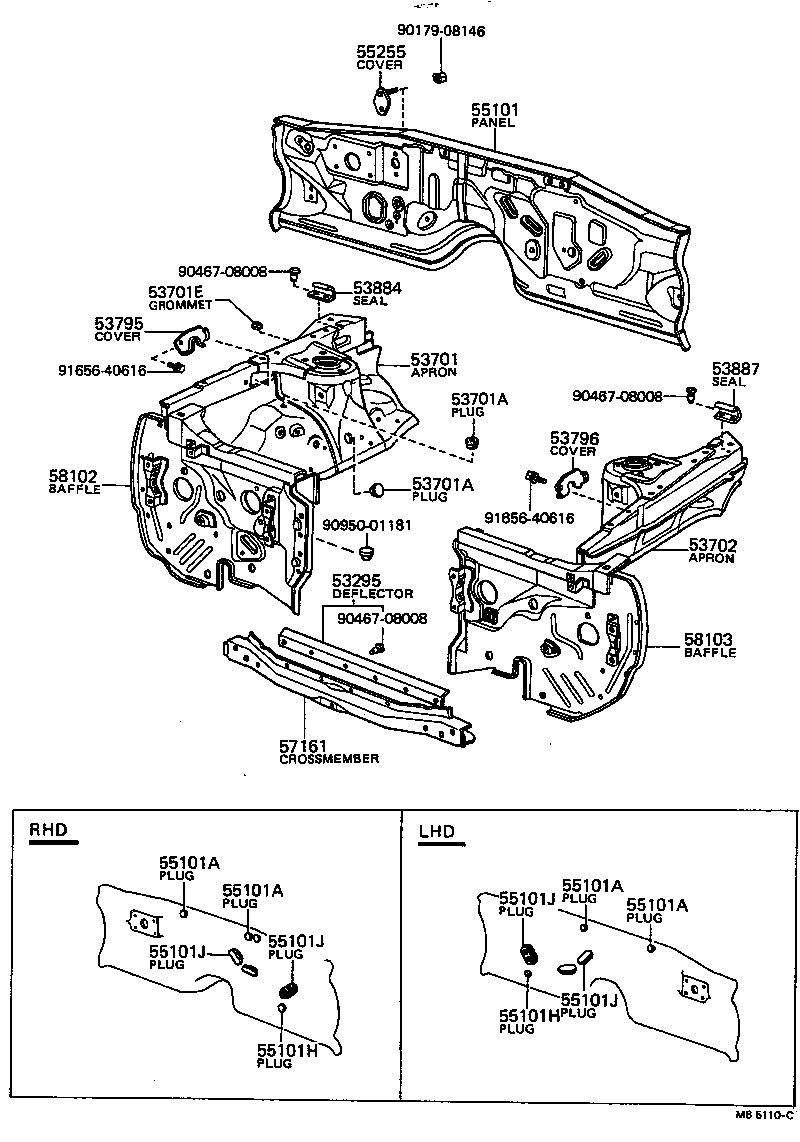

Figure MB2739D MB2739D 1970-12 → 1975-09 Figure MB5110C MB5110C 1975-10 → 1977-07

Part groups

PNCDescription
53035 Bracket Sub-assy, Headlamp, Outer RH
53036 Bracket Sub-assy, Headlamp, Outer LH
53037 Bracket Sub-assy, Headlamp, Inner RH
53038 Bracket Sub-assy, Headlamp, Inner LH
53295 Deflector, Radiator Lower Air
53701 Apron Sub-assy, Front Fender, RH
53701A Plug, Hole(FOR FRONT FENDER APRON)
53701E Grommet(FOR FRONT FENDER APRON)
53702 Apron Sub-assy, Front Fender, LH
53713 Apron, Fender Side, RH
53713B Plug, Hole(FOR FENDER SIDE APRON)
53714 Apron, Fender Side, LH
53795 Cover, Headlamp Wire Harness Hole, RH
53796 Cover, Headlamp Wire Harness Hole, LH
53887 Seal, Front Fender Splash Shield, LH
55101 Panel Sub-assy, Dash
55101A Plug, Hole, NO.1(FOR DASH PANEL)
55101H Plug, Hole, NO.2(FOR DASH PANEL)
55101J Plug, Hole, NO.3(FOR DASH PANEL)
55101P Plug, Hole, NO.4(FOR DASH PANEL)
55255 Cover, Clutch Master Cylinder Hole
55298 Cap, Tee Nut(FOR 8MM)
57161 Crossmember, Front
58102 Baffle Sub-assy, Radiator Side, RH
58103 Baffle Sub-assy,Radiator Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
