Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

15 part groups · 2 illustrations

Illustrations

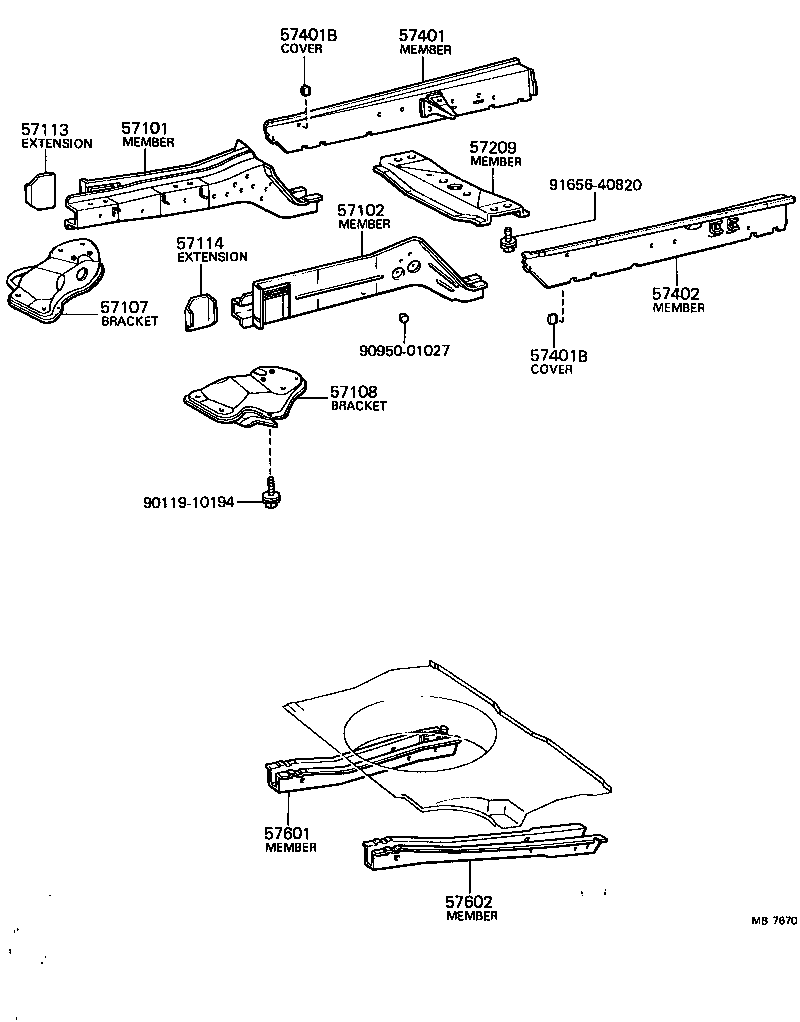

Figure MB7668 MB7668 1970-12 → 1975-09 Figure MB7670 MB7670 1975-09 → 1977-07

Part groups

PNCDescription
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57209 Member Sub-assy, Engine Rear Support
57261 Plate, Engine Rear Support Member Bolt Lock
57262 Cushion, Engine Rear Support Member
57262A Spacer(FOR ENGINE REAR SUPPORT)
57401 Member Sub-assy, Main Floor Side, RH
57401B Cover, Hole(FOR MAIN FLOOR SIDE MEMBER)
57402 Member Sub-assy, Main Floor Side, LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
