Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

40 part groups · 6 illustrations

Illustrations

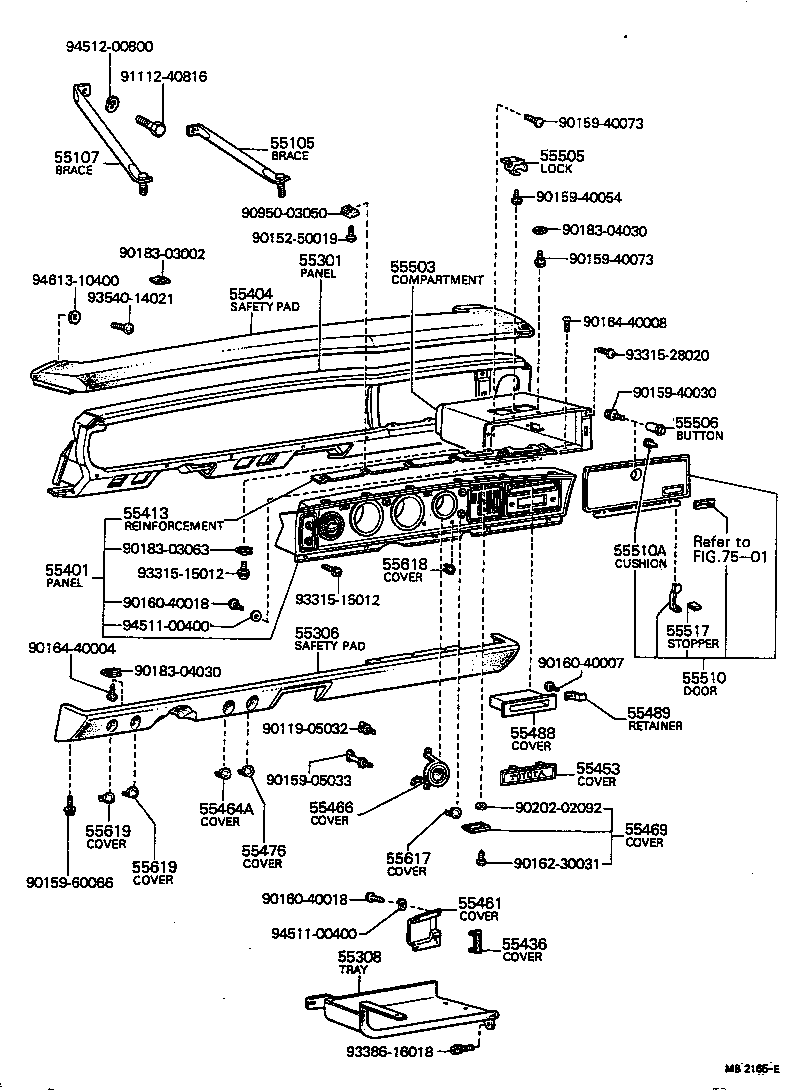

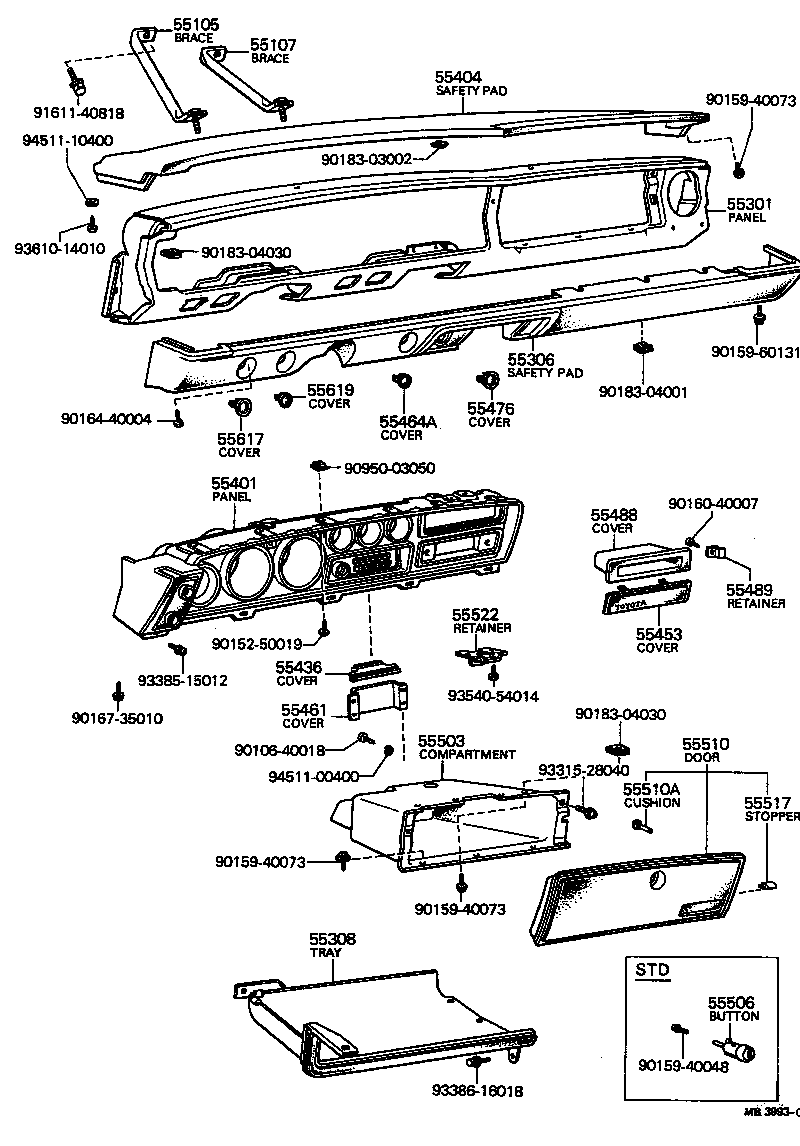

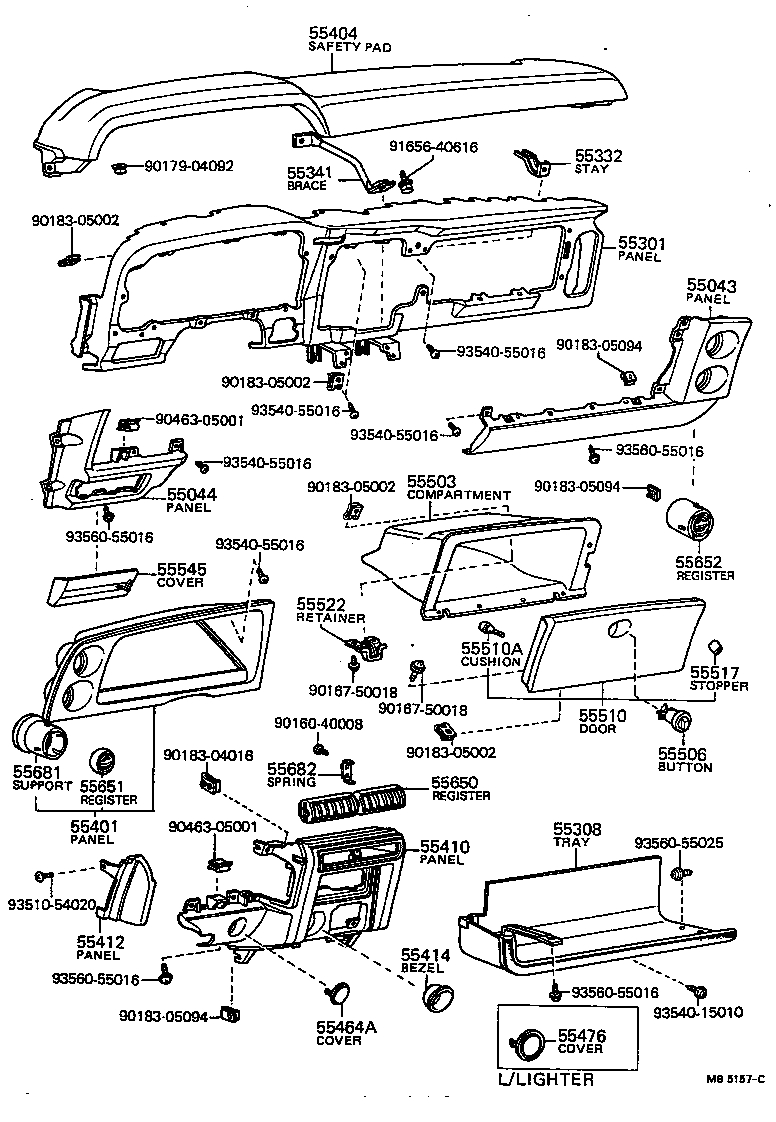

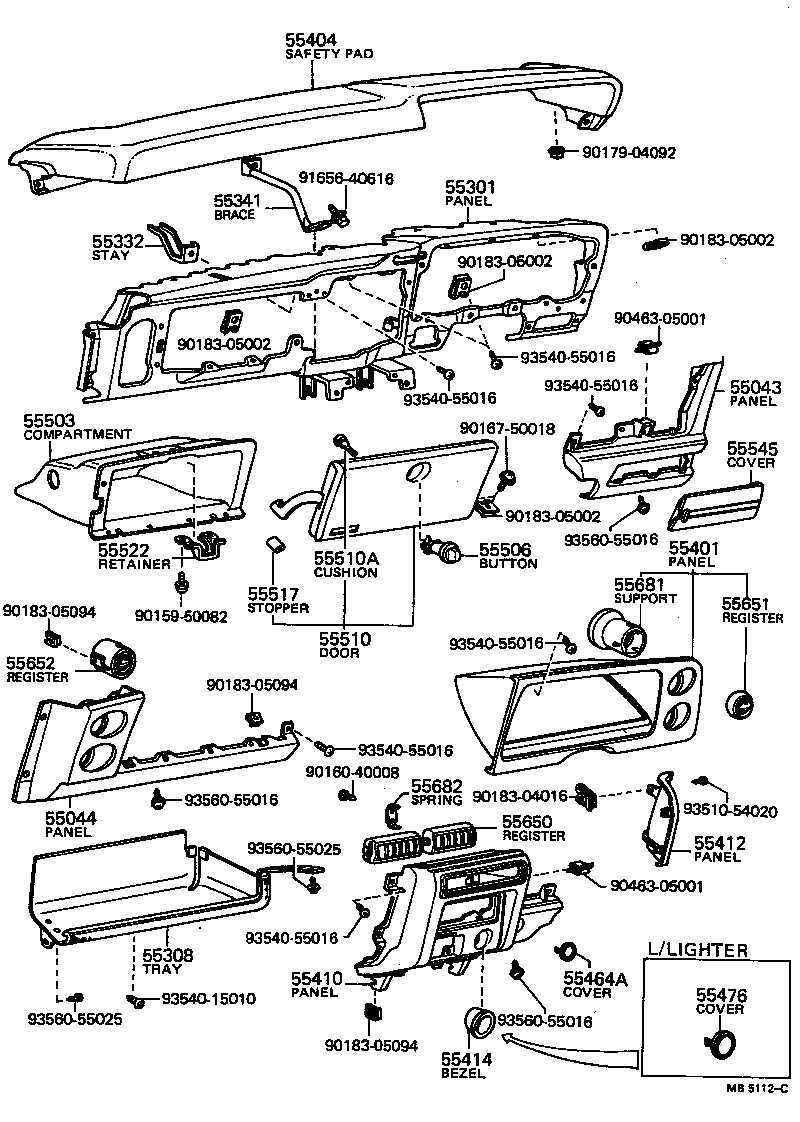

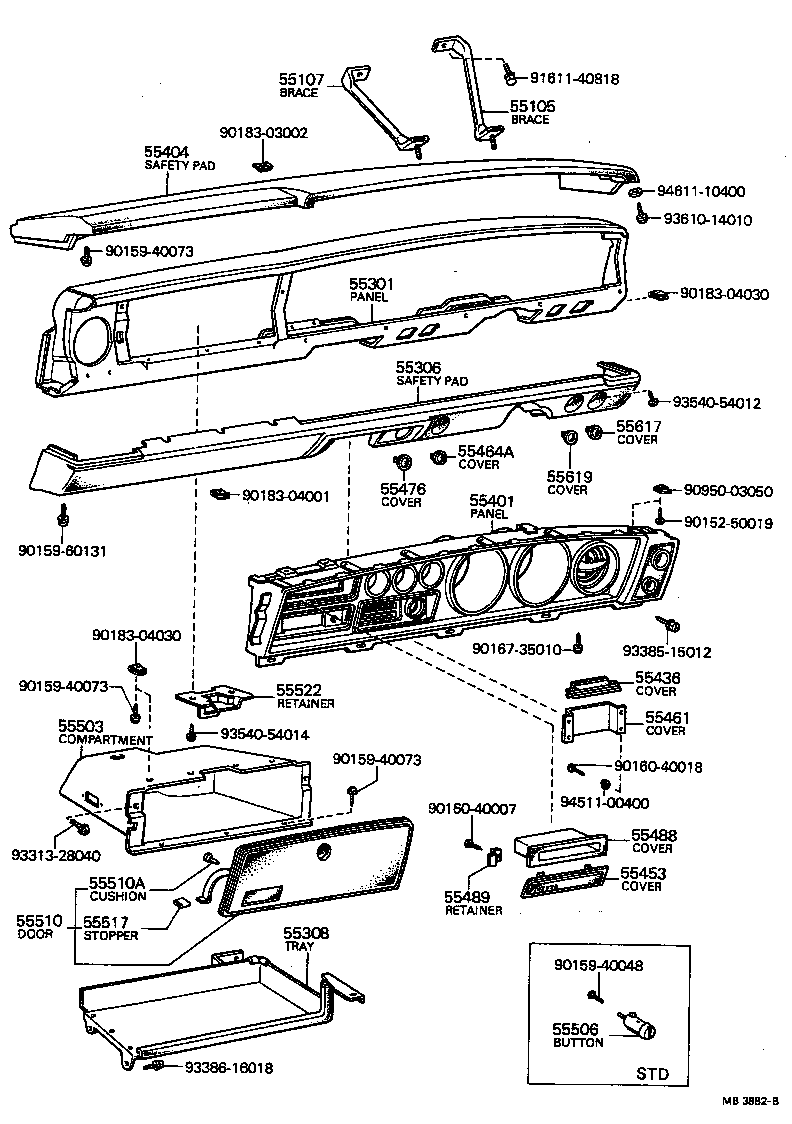

Figure MB1479G MB1479G 1970-12 → 1972-07 Figure MB3882B MB3882B 1972-08 → 1975-09 Figure MB5112C MB5112C 1975-10 → 1977-07 Figure MB2165E MB2165E 1970-12 → 1972-07 Figure MB3993C MB3993C 1972-08 → 1975-09 Figure MB5157C MB5157C 1975-10 → 1977-07

Part groups

PNCDescription
55043 Panel Sub-assy, Instrument Panel Finish, Lower RH
55044 Panel Sub-assy, Instrument Panel Finish, Lower LH
55105 Brace Sub-assy, Pedal Bracket TO Dash, RH
55107 Brace Sub-assy, Pedal Bracket TO Dash, LH
55301 Panel Sub-assy, Instrument
55306 Garnish OR Safety Pad, Lower, Center
55308 Tray Sub-assy, Instrument Panel Under
55332 Stay, Instrument Panel
55341 Brace, Instrument Panel, NO.1
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55410 Panel Assy, Instrument Cluster Finish, NO.2
55412 Panel, Instrument Cluster Finish, End
55413 Reinforcement, Cluster Housing
55414 Bezel, Cigar Lighter Hole
55436 Cover, Heater Control, NO.2
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55464A Cover, Choke Knob Hole
55466 Cover, Clock Hole
55469 Cover, Heater Control Lamp Hole
55476 Cover, Cigarette Lighter Hole
55488 Cover, Stereo Opening
55489 Retainer, Stereo Opening Cover, NO.1
55503 Compartment Sub-assy, Glove
55505 Lock Sub-assy, Glove Compartment Door
55506 Button Sub-assy, Glove Compartment Door Lock
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55517 Stopper, Glove Compartment Door Arm
55522 Retainer, Glove Compartment Male
55545 Cover, Fuse Box Opening
55617 Cover, Defogger Knob Hole
55618 Cover, Auto Clock Knob Hole
55619 Cover, Switch Hole
55650 Register Assy, Instrument Panel, NO.1
55651 Register, Instrument Panel, NO.1
55652 Register, Instrument Panel, NO.2
55681 Support, Instrument Panel Register, NO.1
55682 Spring, Instrument Panel Register Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
