Toyota Carina
1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe
Discontinued model
Data version 1977-09

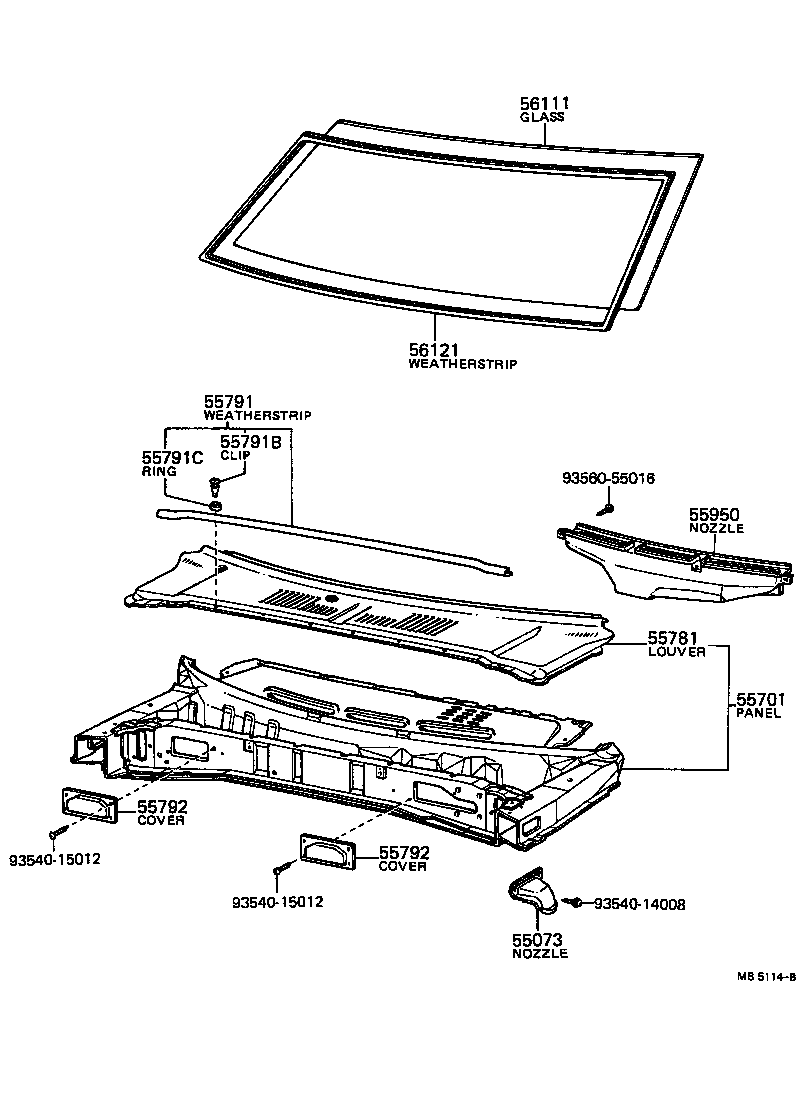

Cowl Panel & Windshield Glass
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55073 | Nozzle Sub-assy, Cowl Panel Water Extract |
| 55073A | Hose(FOR EXTRACT NOZZLE) |
| 55074 | Cover Sub-assy, Cowl Inner Heater Air |
| 55701 | Panel Sub-assy, Cowl |
| 55712 | Panel, Cowl Top Outside, Front |
| 55717 | Reinforcement, Cowl Top Outside |
| 55718 | Retainer, Hood Hinge |
| 55721 | Gusset, Cowl Top Panel, RH |
| 55722 | Gusset, Cowl Top Panel, LH |
| 55723 | Patch, Cowl Top Outer Corner, RH |
| 55724 | Patch, Cowl Top Outer Corner, LH |
| 55781 | Louver, Cowl Ventilator |
| 55791 | Weatherstrip, Hood TO Cowl Top |
| 55791B | Clip(FOR HOOD TO COWL TOP WEATHERSTRIP) |
| 55791C | Ring(FOR HOOD TO COWL TOP WEATHERSTRIP) |
| 55791D | Clip, Hood TO Cowl Top Weatherstrip, Outer |
| 55792 | Cover, Wiper Motor Service Hole |
| 55908 | Nozzle Sub-assy, Defroster, RH |
| 55909 | Nozzle Sub-assy, Defroster, LH |
| 55950 | Nozzle Assy, Defroster |
| 56111 | Glass, Windshield |
| 56121 | Weatherstrip, Windshield |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
