Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

22 part groups · 4 illustrations

Illustrations

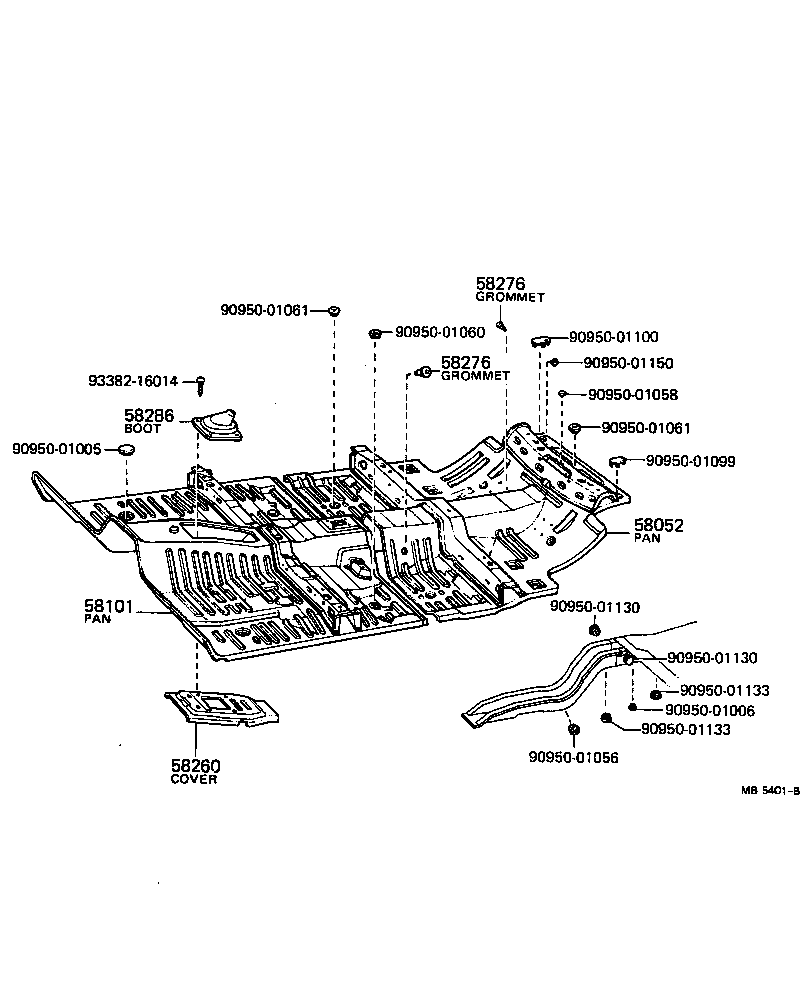

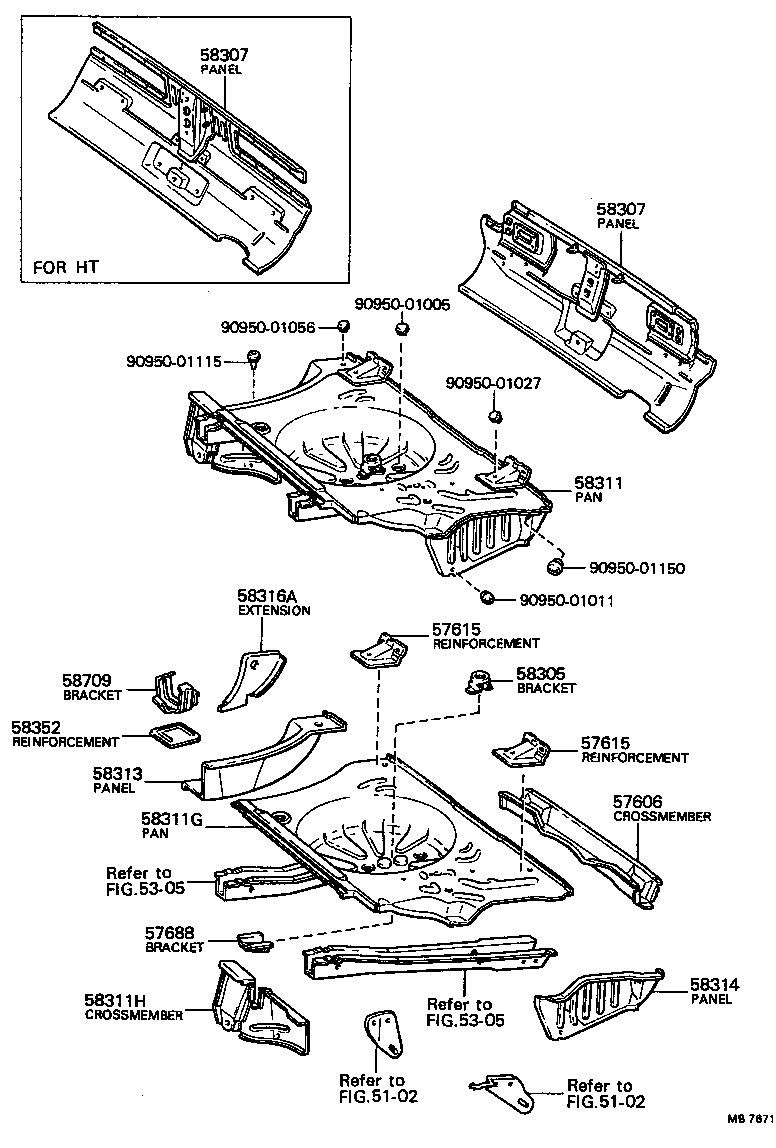

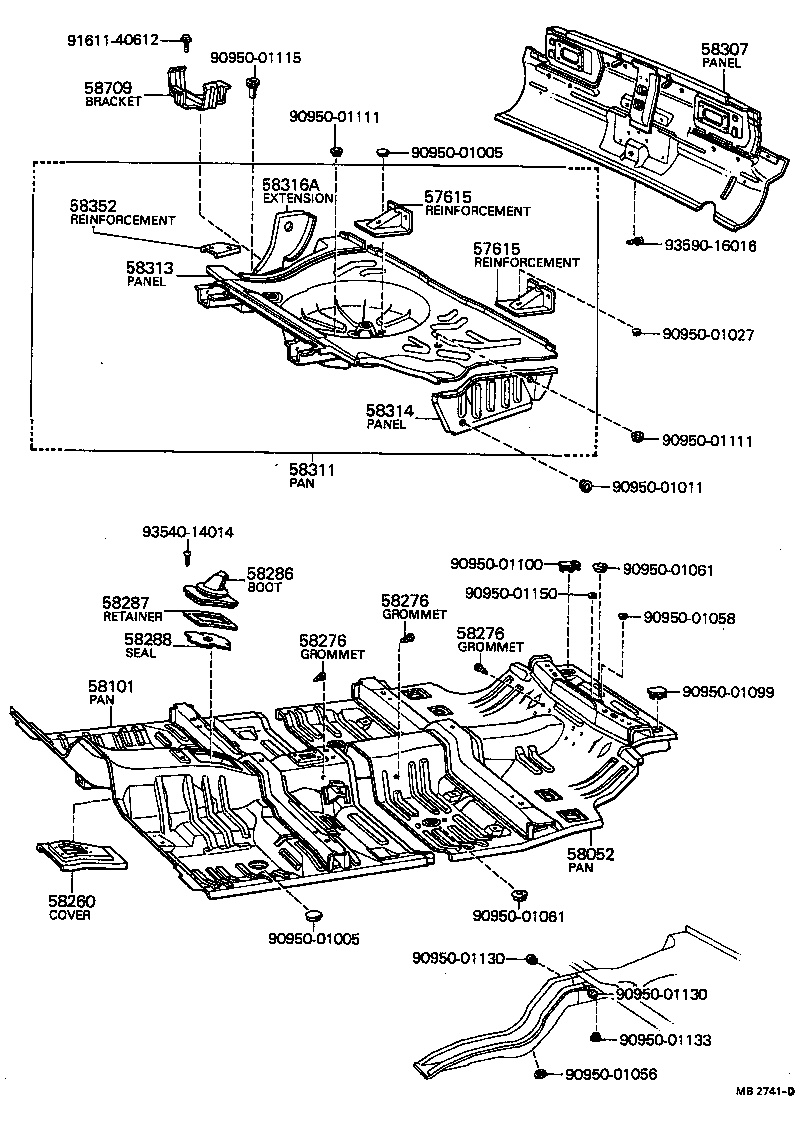

Figure MB1477F MB1477F 1970-12 → 1972-07 Figure MB2741D MB2741D 1972-08 → 1975-09 Figure MB5401B MB5401B 1975-10 → 1977-07 Figure MB7671 MB7671 1975-10 → 1977-07

Part groups

PNCDescription
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
57615 Reinforcement, Rear Bumper Stay Support
57688 Bracket, Exhaust Pipe Clamp, NO.2
58052 Pan Sub-assy, Center Floor
58101 Pan Sub-assy, Front Floor
58260 Cover Assy, Transmission, Front
58276 Grommet, Safety Band Anchorage Nut
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
58288 Seal, Shift Lever Boot
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58311G Pan,Rear Floor
58311H Crossmember Sub-assy, Rear Floor, Front
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58316A Extension, Rear Floor Side Panel, Rear RH
58352 Reinforcement, Jack Clamp
58357 Support, Spare Wheel
58709 Bracket Sub-assy, Jack Clamp
64292 Clamp, Jack Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
