Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dash Silencer Board & Floor Silencer Pad

12 part groups · 2 illustrations

Illustrations

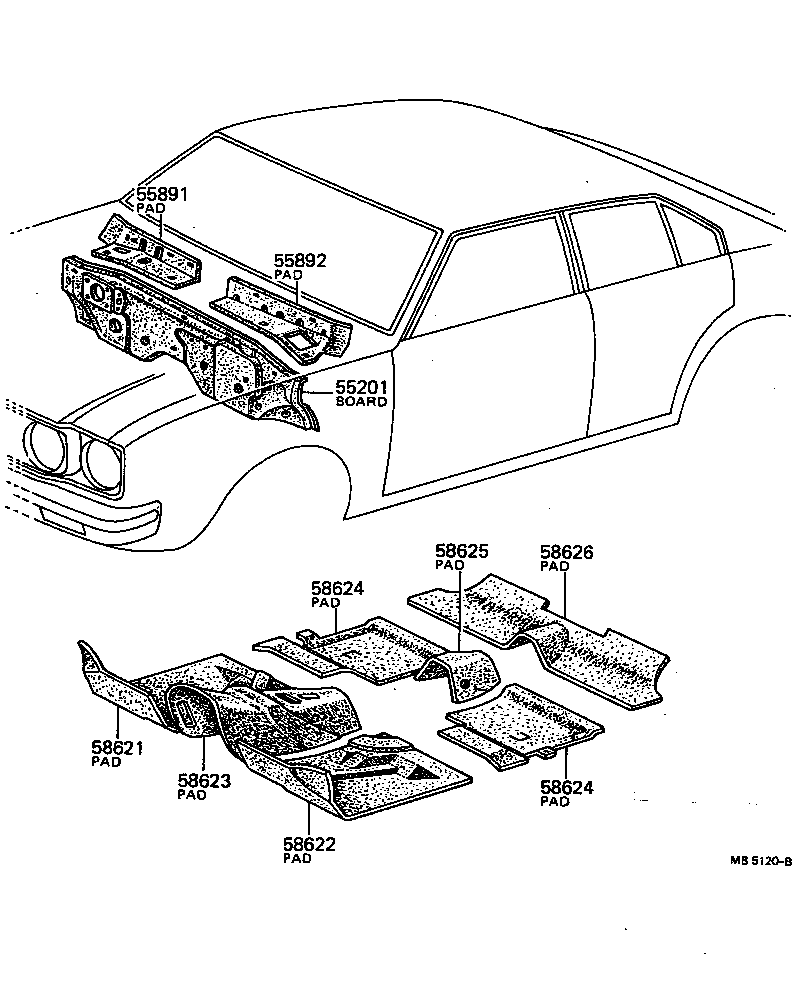

Figure MB5505 MB5505 1970-12 → 1975-09 Figure MB5120B MB5120B 1975-10 → 1977-07

Part groups

PNCDescription
55201 Board Sub-assy, Dash Panel Silencer
55202 Board Sub-assy, Dash Panel Silencer, RH
55203 Board Sub-assy, Dash Panel Silencer, Center
55204 Board Sub-assy, Dash Panel Silencer, LH
55891 Pad, Cowl Top Silencer, Inner RH
55892 Pad, Cowl Top Silencer, Inner LH
58621 Pad, Floor Silencer, Front RH
58622 Pad, Floor Silencer, Front LH
58623 Pad, Floor Silencer, Front Center
58624 Pad, Floor Silencer, Rear Side
58625 Pad, Floor Silencer, Rear Center
58626 Pad, Floor Silencer, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
