Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 2 illustrations

Illustrations

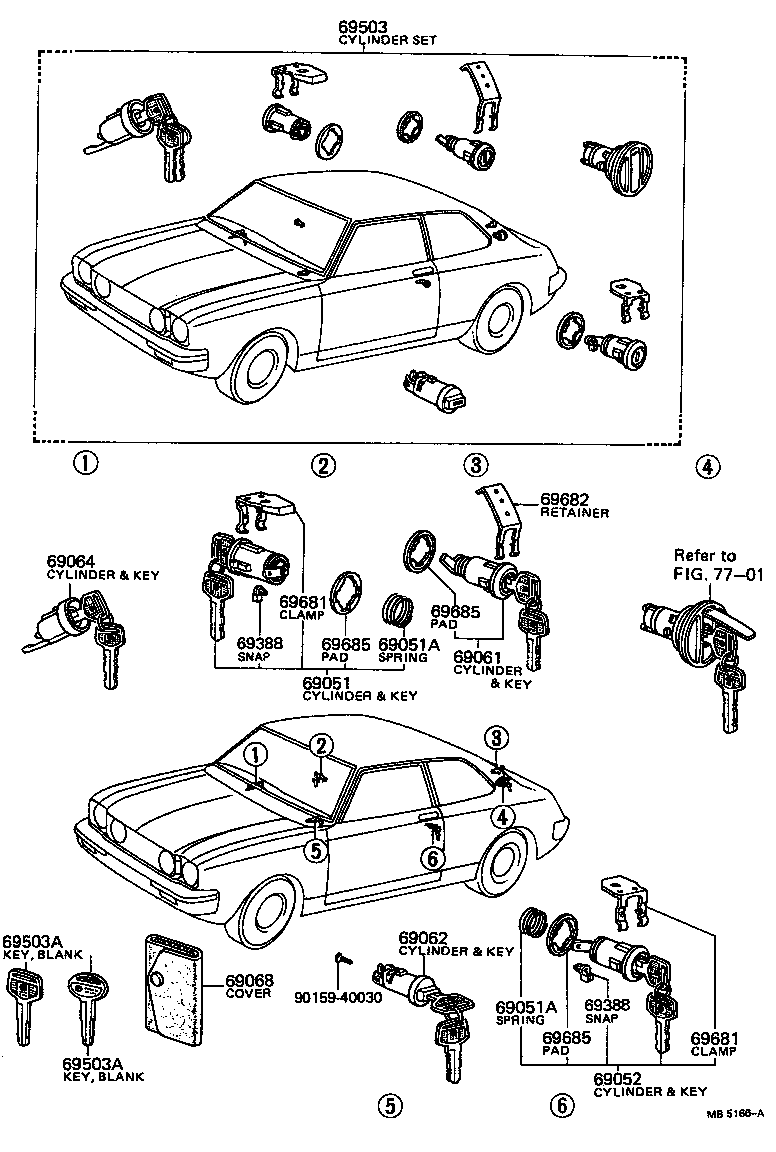

Figure MB1494F MB1494F 1970-12 → 1975-09 Figure MB5166A MB5166A 1975-10 → 1977-07

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69051A Spring, Door Lock Cylinder
69052 Cylinder & Key Set, Door Lock, LH
69061 Cylinder & Key Set, Luggage Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
