Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

5 part groups · 2 illustrations

Illustrations

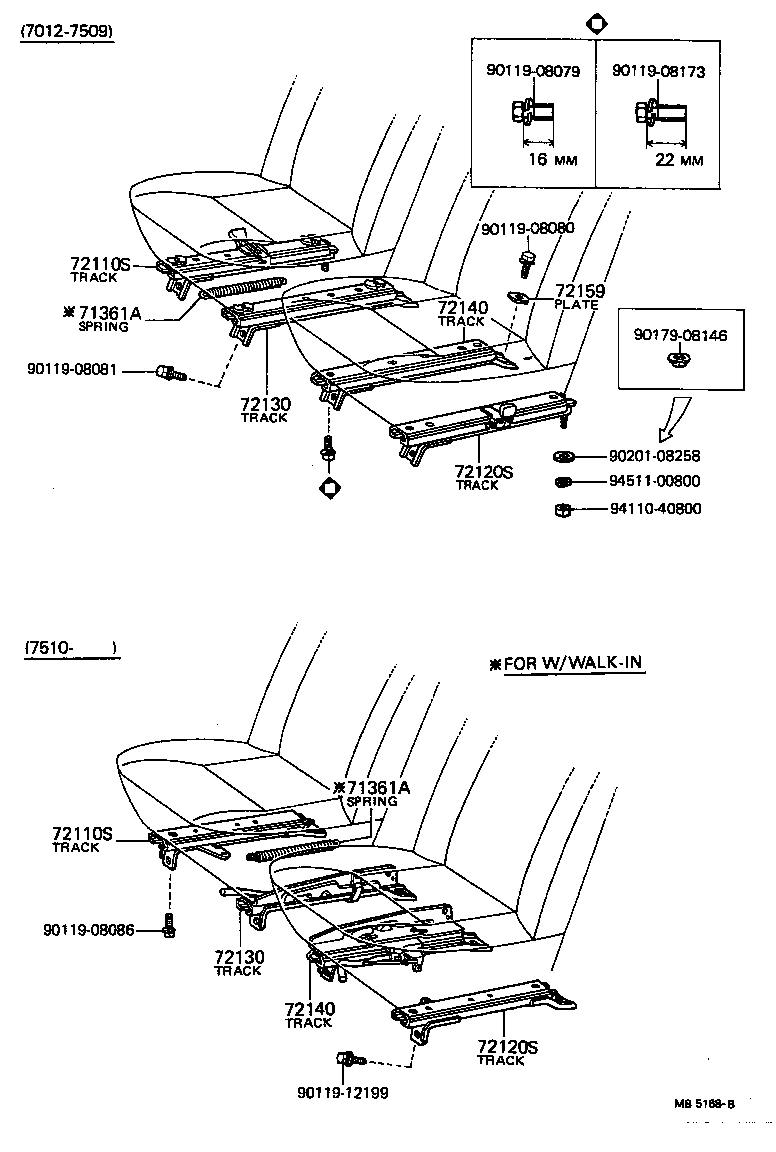

Figure MB5138A MB5138A 1970-12 → 1977-07 Figure MB5168B MB5168B 1970-12 → 1977-07

Part groups

PNCDescription
71361A Spring, Tension (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
