Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

11 part groups · 2 illustrations

Illustrations

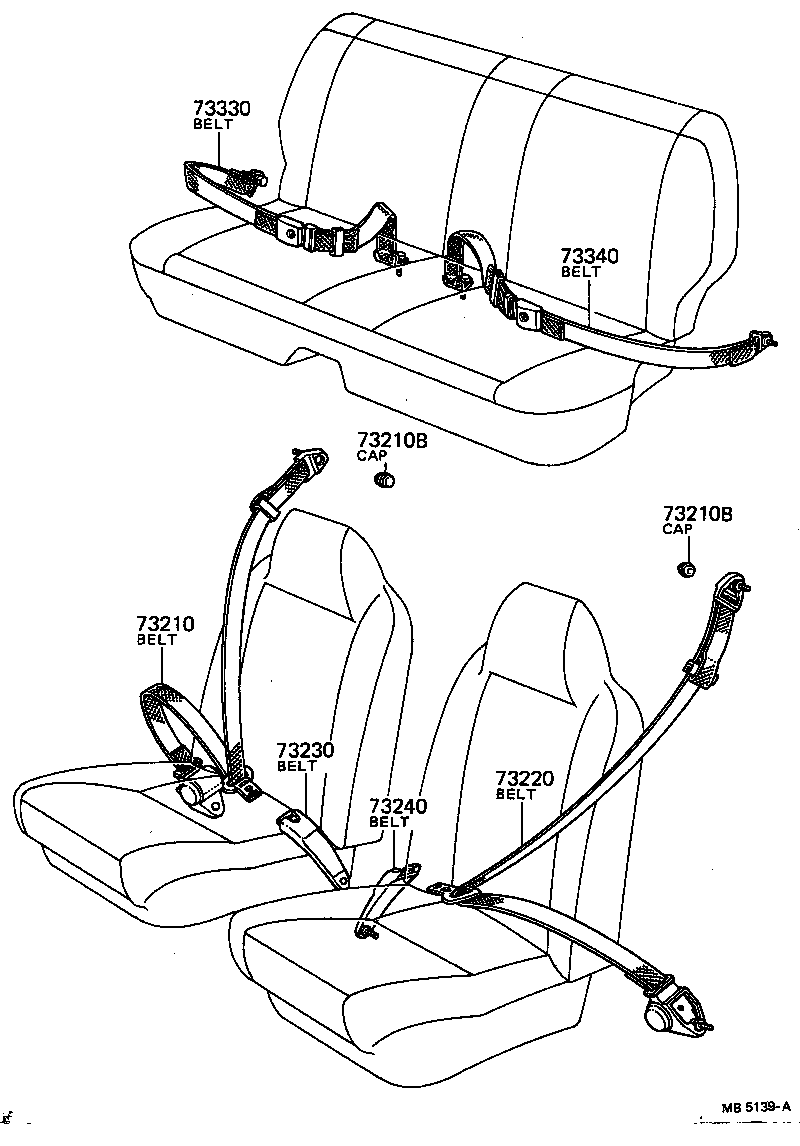

Figure MB2999B MB2999B 1970-12 → 1975-09 Figure MB5139A MB5139A 1975-10 → 1977-07

Part groups

PNCDescription
73110 Belt Assy, Front Seat 3 Point Type, RH
73110A Bush (FOR FRONT SEAT 3 POINT TYPE BELT)
73120 Belt Assy, Front Seat 3 Point Type, LH
73171 Hanger, Front Seat Shoulder Belt
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
