Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

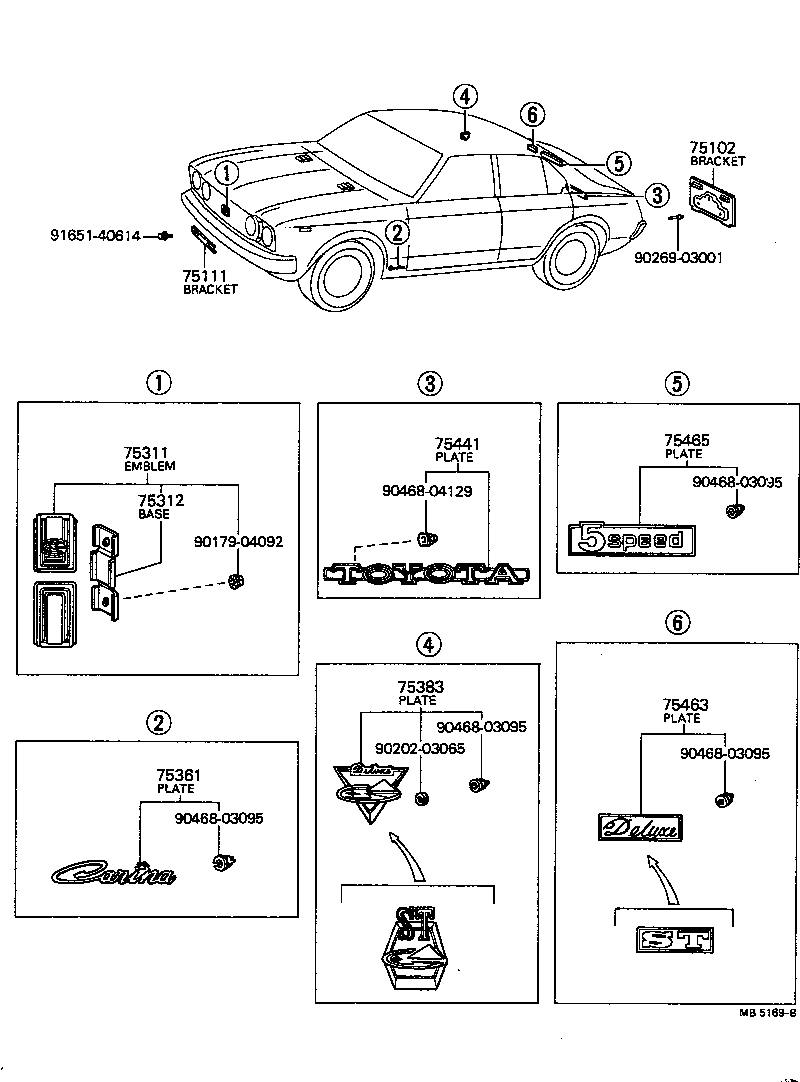

Figure MB4162A MB4162A 1970-12 → 1975-09 Figure MB5169B MB5169B 1975-10 → 1977-07

Part groups

PNCDescription
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75341 Plate, Instrument Panel Name, NO.1
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75441 Plate, Rear Name, NO.1
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
