Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

17 part groups · 2 illustrations

Illustrations

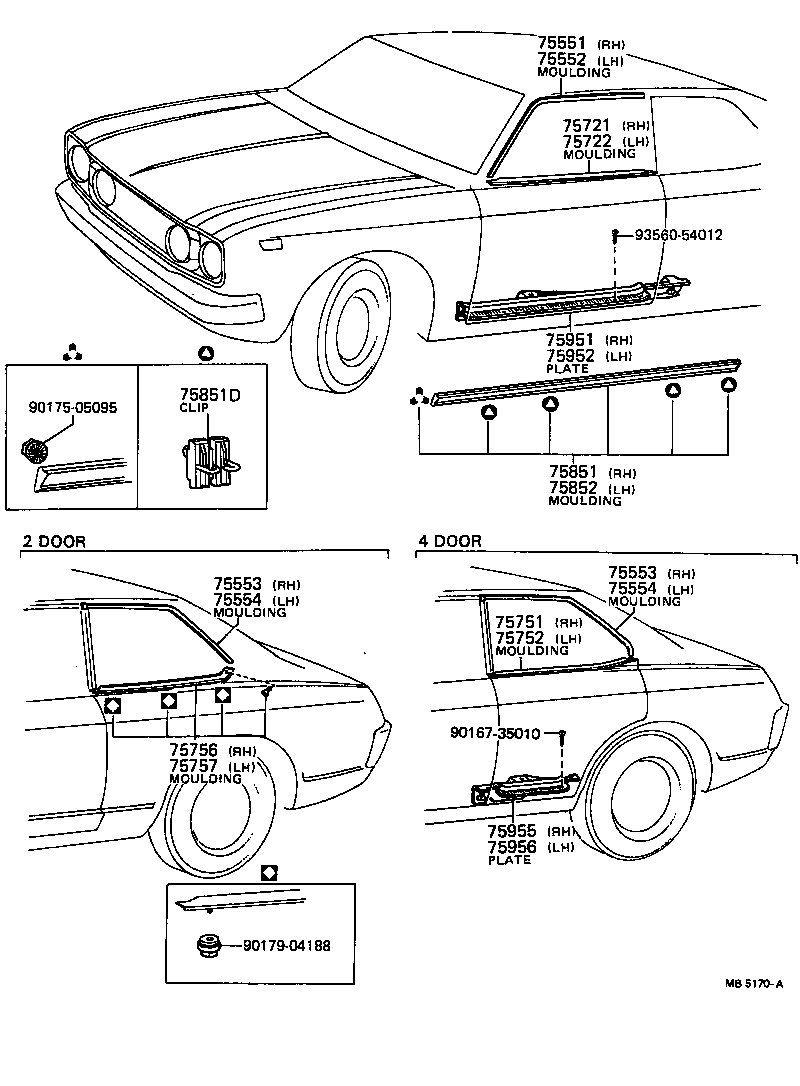

Figure MB4160B MB4160B 1970-12 → 1975-09 Figure MB5170A MB5170A 1975-10 → 1977-07

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75756 Moulding, Quarter Belt, RH
75757 Moulding, Quarter Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
