Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

46 part groups · 6 illustrations

Illustrations

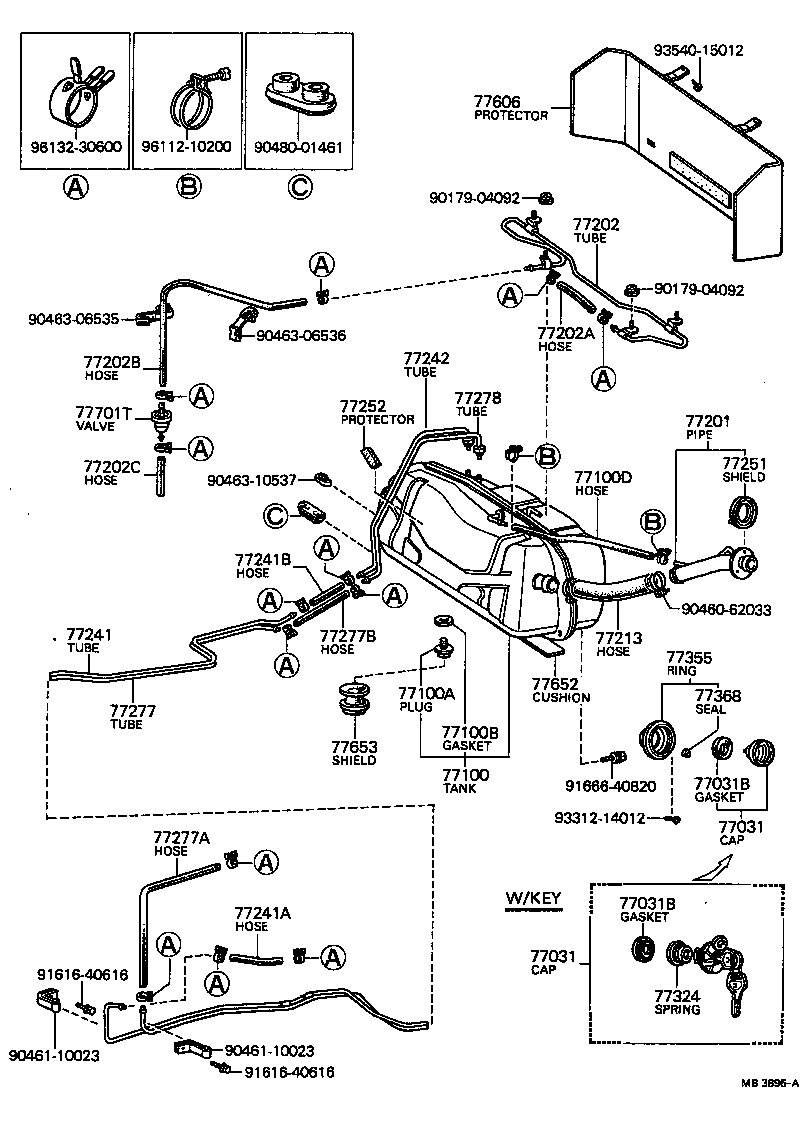

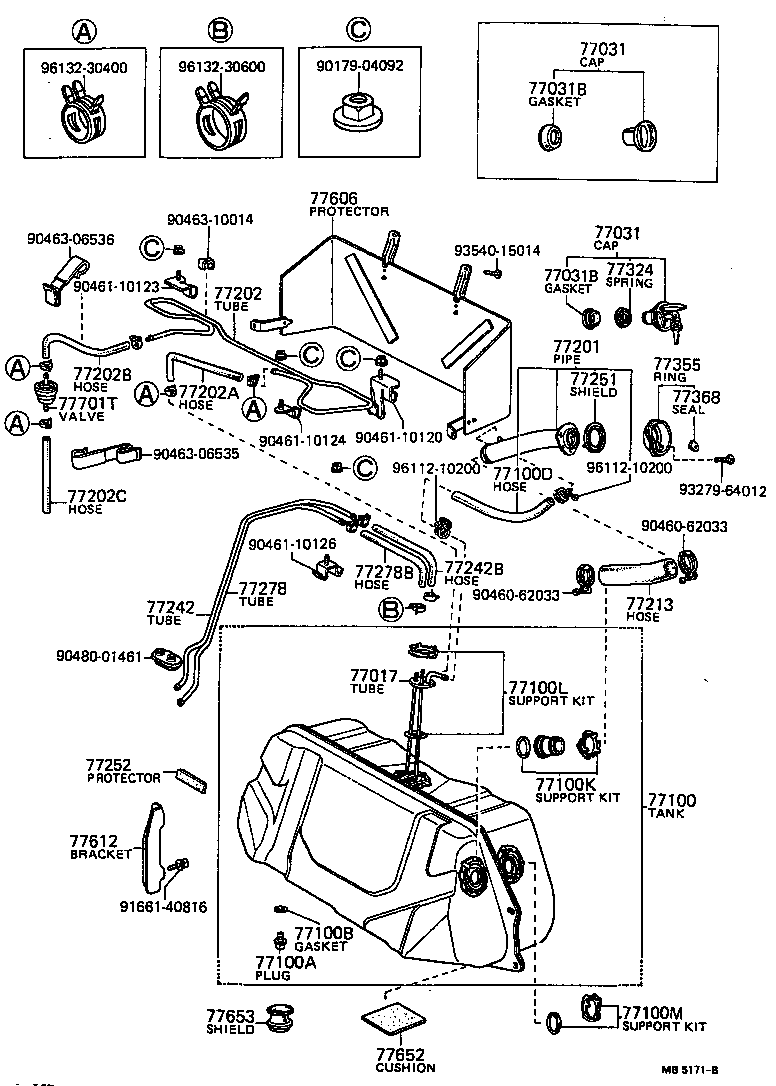

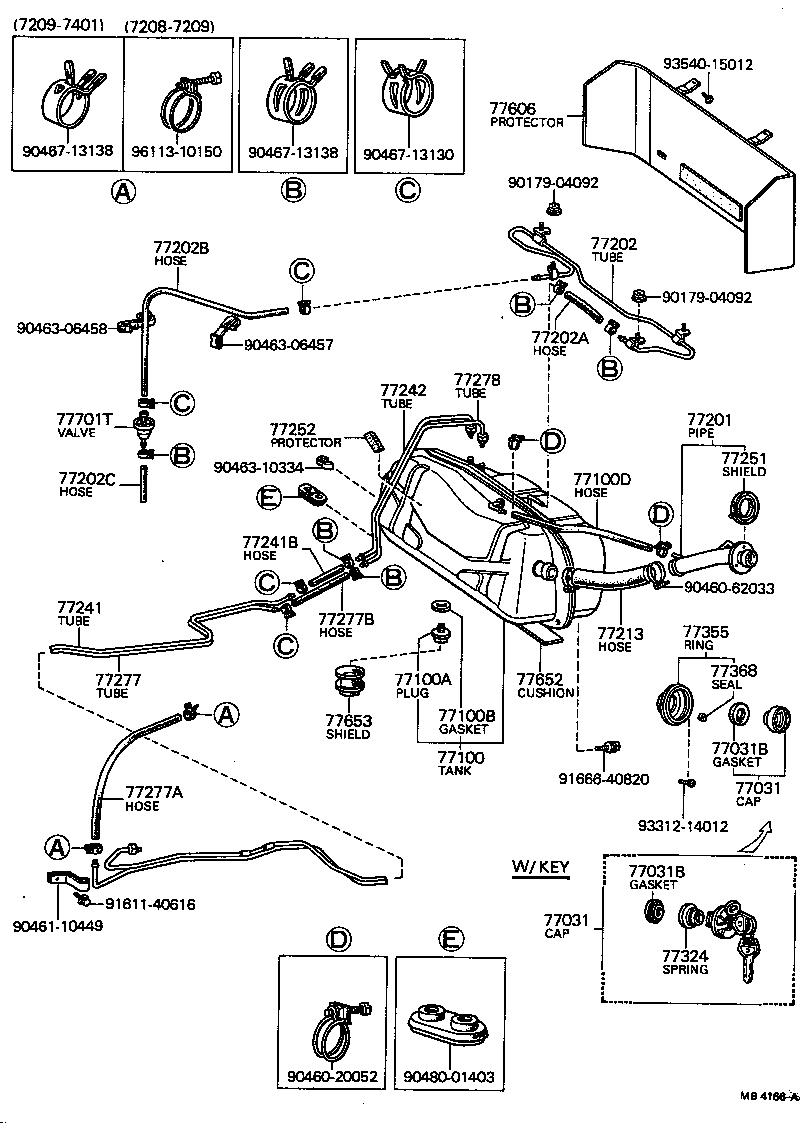

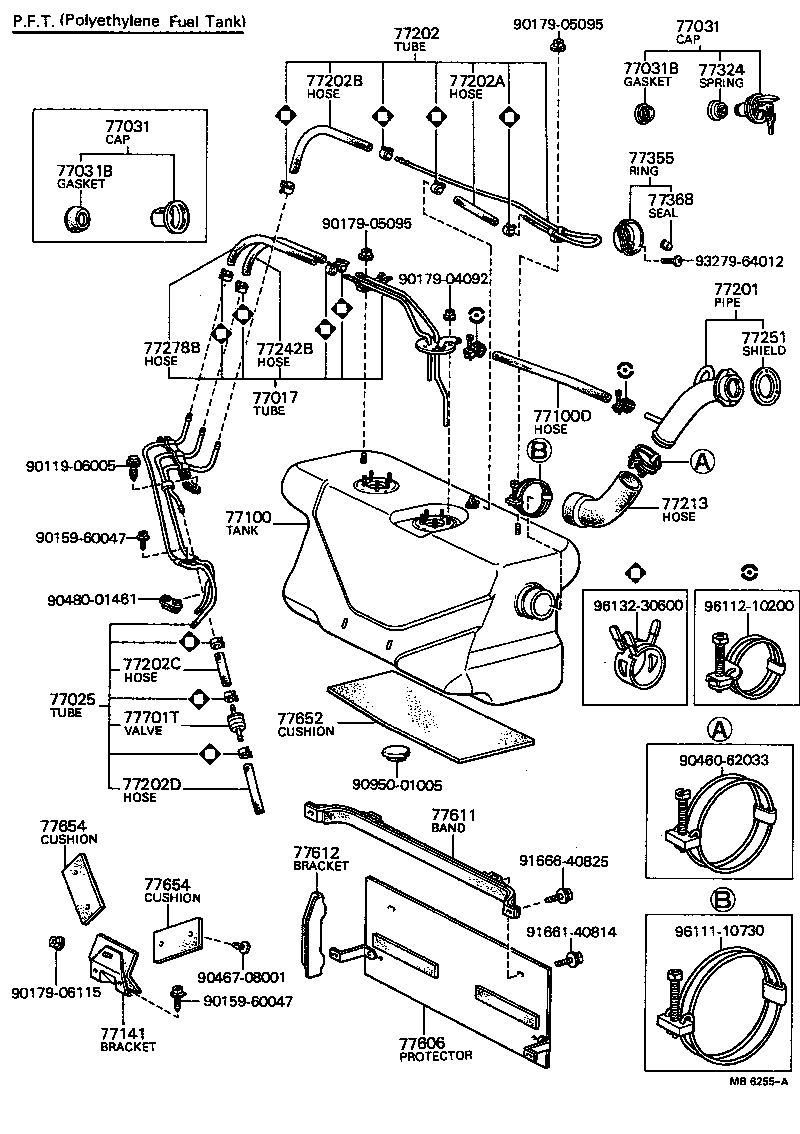

Figure MB4165A MB4165A 1970-12 → 1972-07 Figure MB4166A MB4166A 1972-08 → 1974-01 Figure MB3896A MB3896A 1974-01 → 1975-09 Figure MB5171B MB5171B 1975-10 → 1977-07 Figure MB6255A MB6255A 1976-06 → 1977-07 Figure MB5172 MB5172 1975-10 → 1977-07

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77025 Tube Sub-assy, Fuel Main & Return, Rear
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100K Support Kit, Fuel Tank Inlet
77100L Support Kit, Fuel Tank Tube
77100M Support Kit, Fuel Tank Gage
77141 Bracket, Fuel Tank Mounting, Front
77201 Pipe Sub-assy, Fuel Tank Inlet
77202 Tube Sub-assy, Breather
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77202B Hose, Fuel, NO.2 (FOR BREATHER TUBE)
77202C Hose, Fuel, NO.3 (FOR BREATHER TUBE)
77202D Hose, Fuel, NO.4 (FOR BREATHER TUBE)
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77251 Shield, Fuel Tank, Inlet, NO.1
77252 Protector, Fuel Tube
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77283 Bracket, Fuel Tube
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77324 Spring, Fuel Tank Cap
77355 Ring, Inlet Box
77356 Weatherstrip, Fuel Tank Filler Pipe Lid, Upper
77368 Seal, Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77612 Bracket Sub-assy, Fuel Tank
77652 Cushion, Fuel Tank, NO.1
77653 Shield, Fuel Tank Drain Plug
77654 Cushion, Fuel Tank, NO.2
77662 Cover, Fuel Tank Gage
77701T Valve, Check (FOR MAIN FUEL TANK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
