Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

10 part groups · 2 illustrations

Illustrations

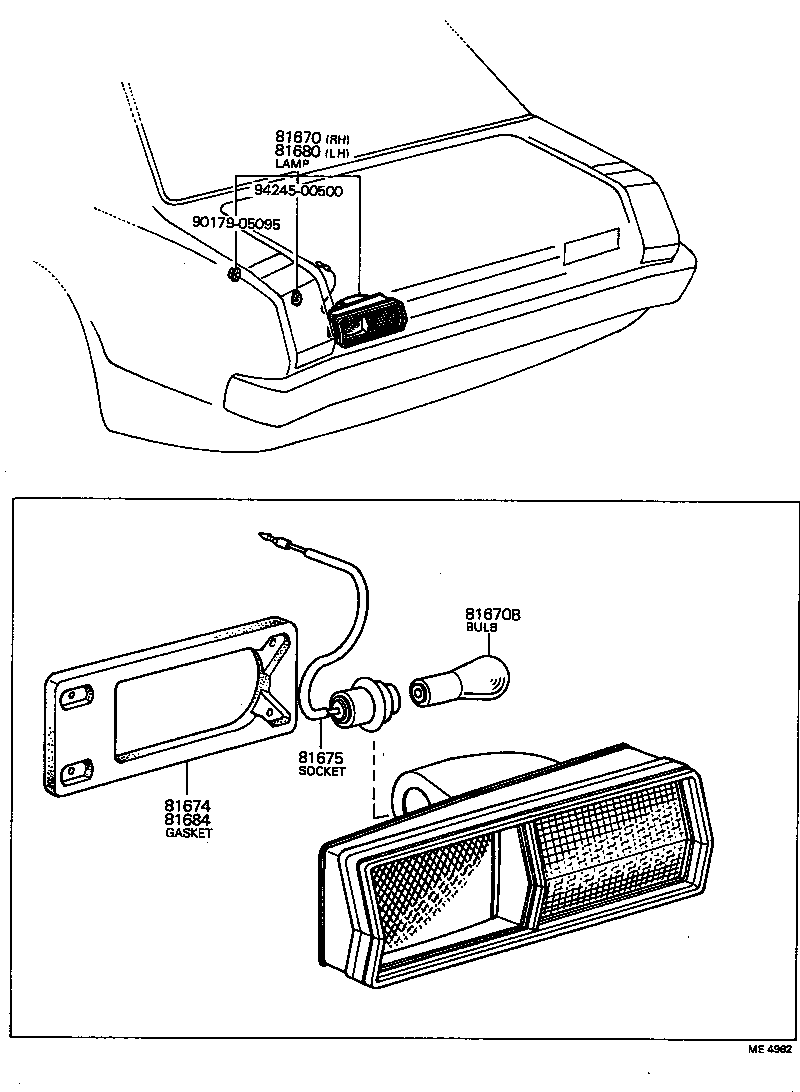

Figure ME4961C ME4961C 1970-12 → 1972-07 Figure ME4962 ME4962 1972-08 → 1977-07

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
