Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 9 illustrations

Illustrations

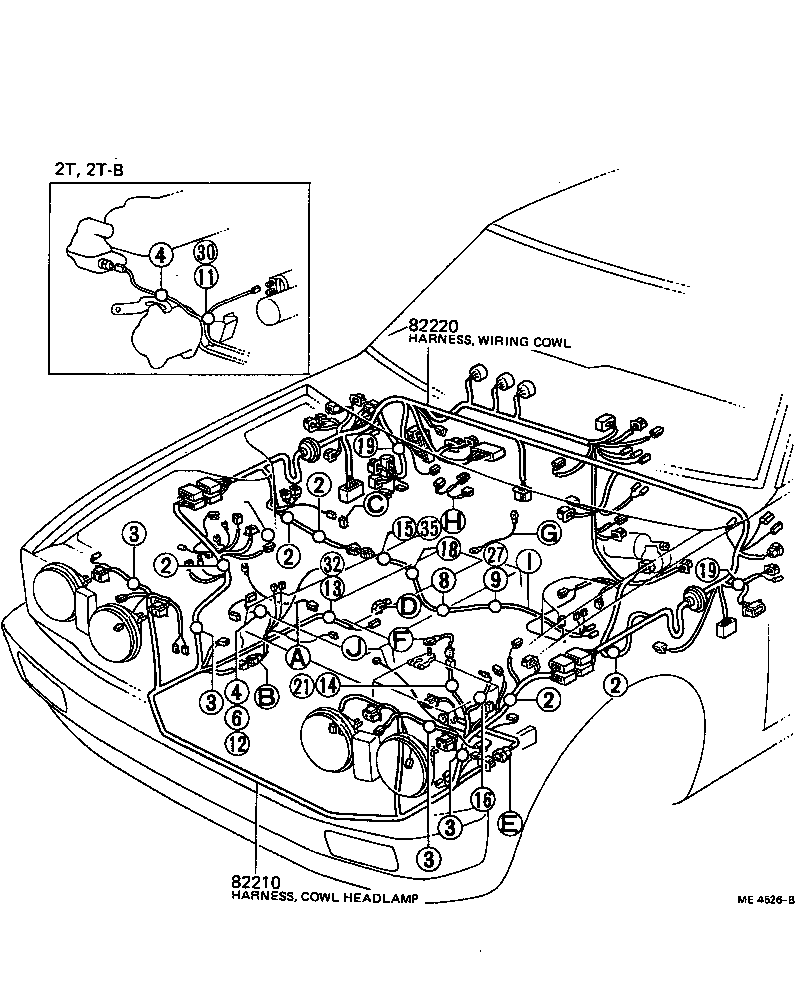

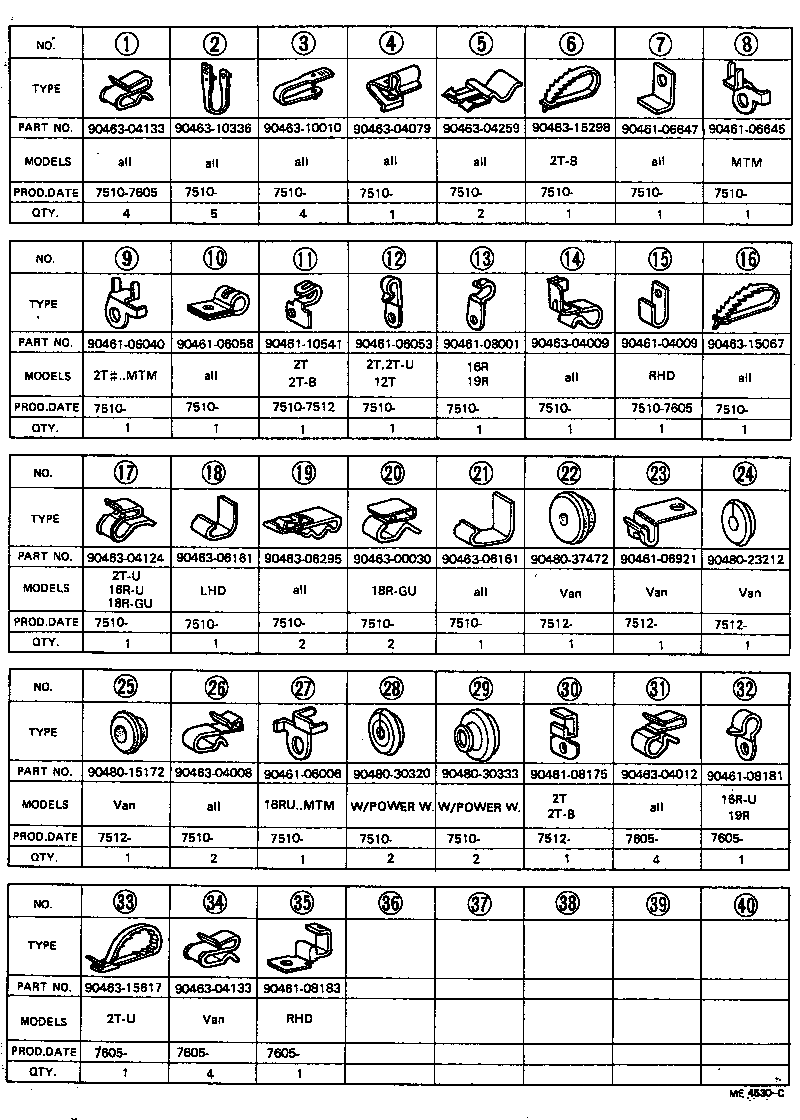

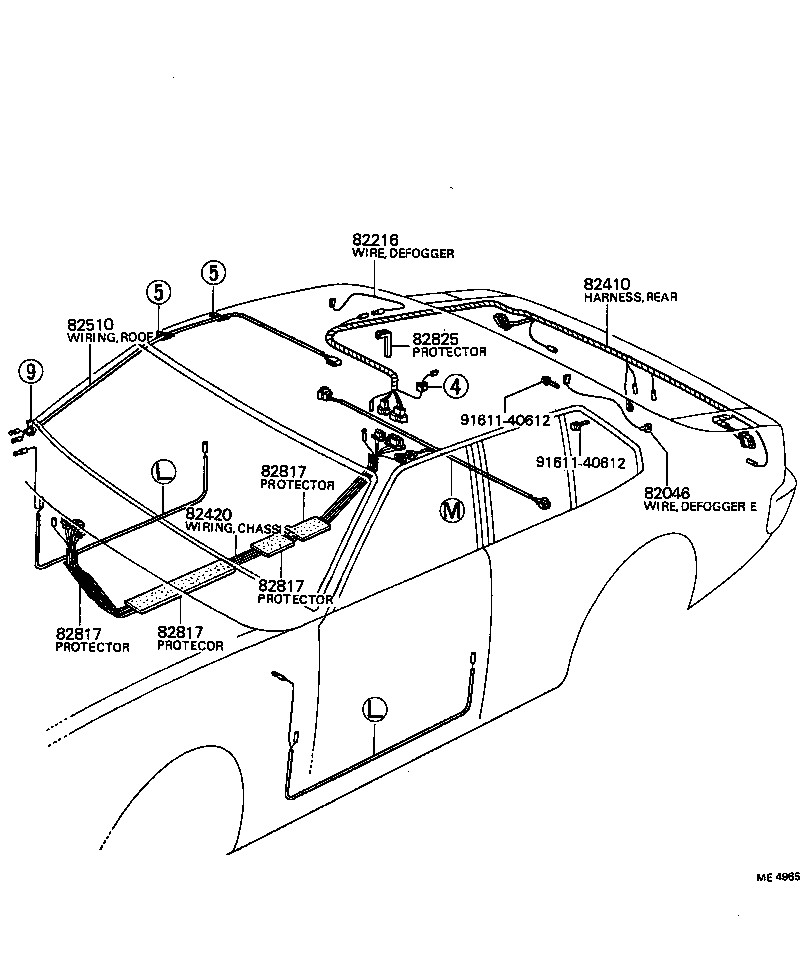

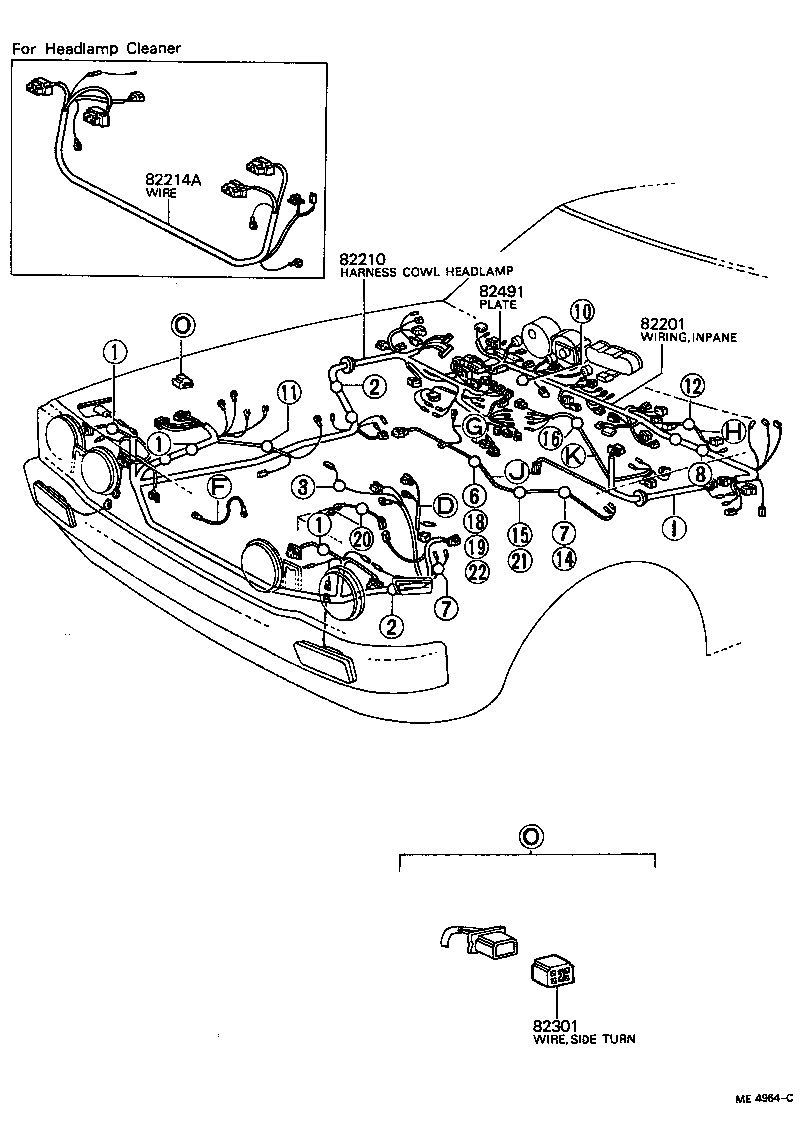

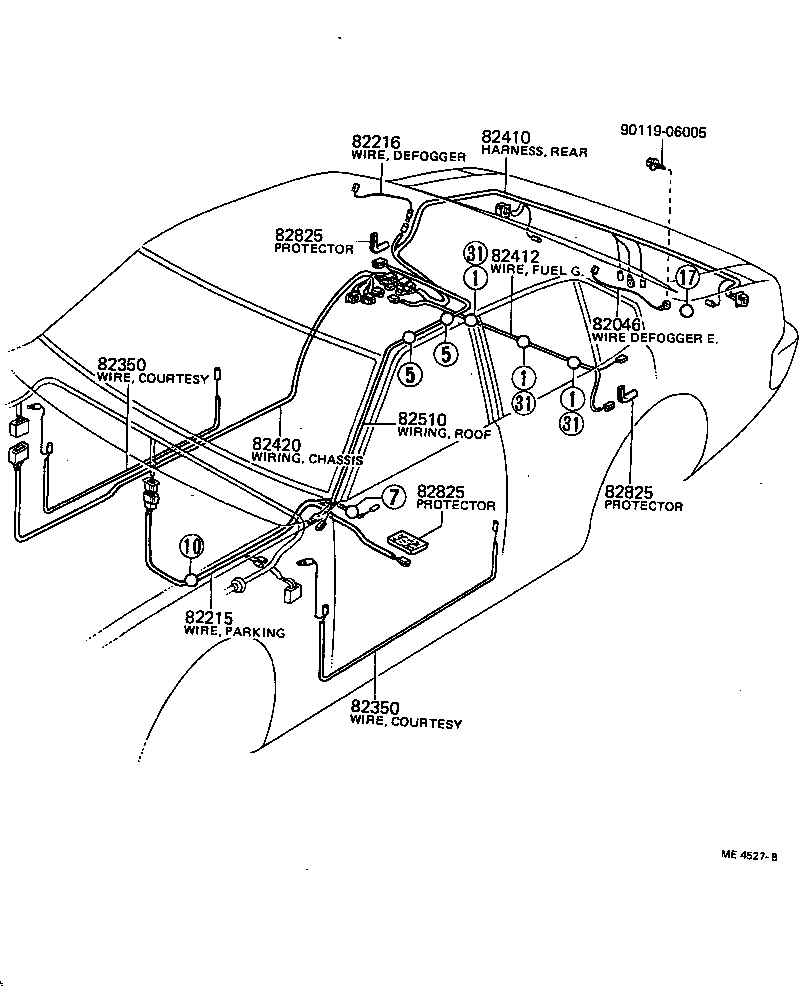

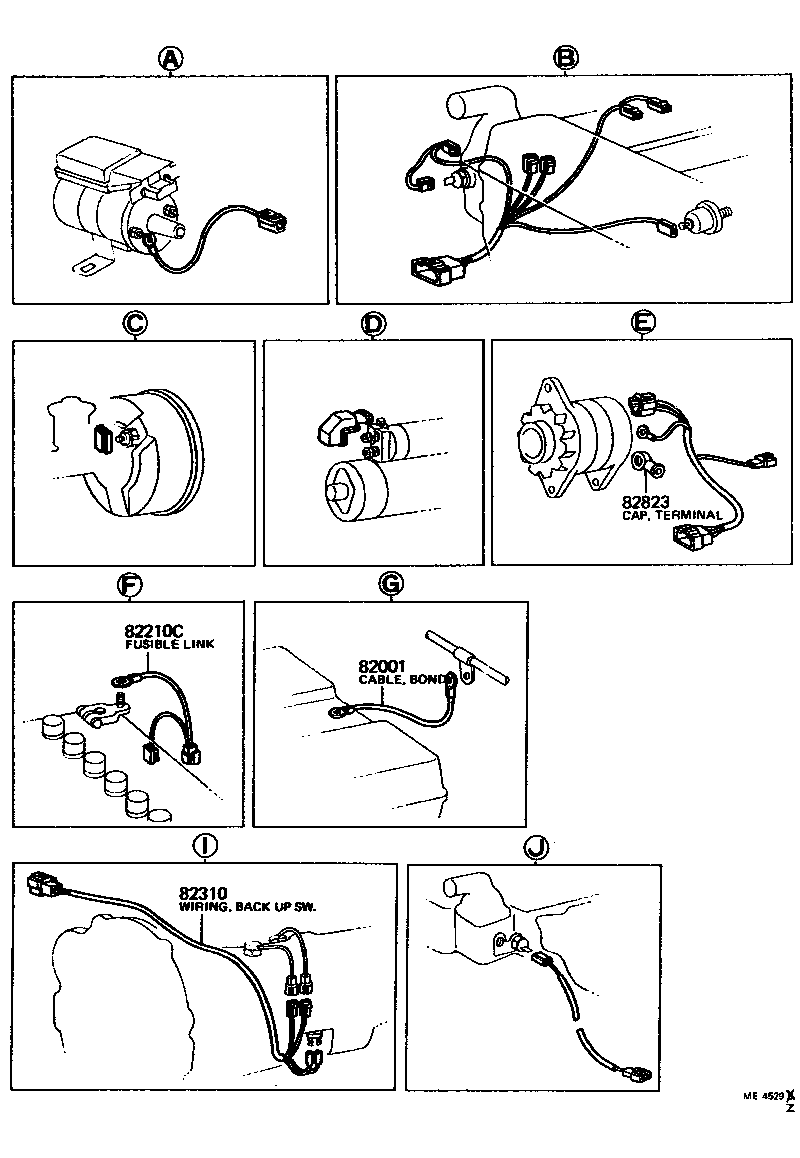

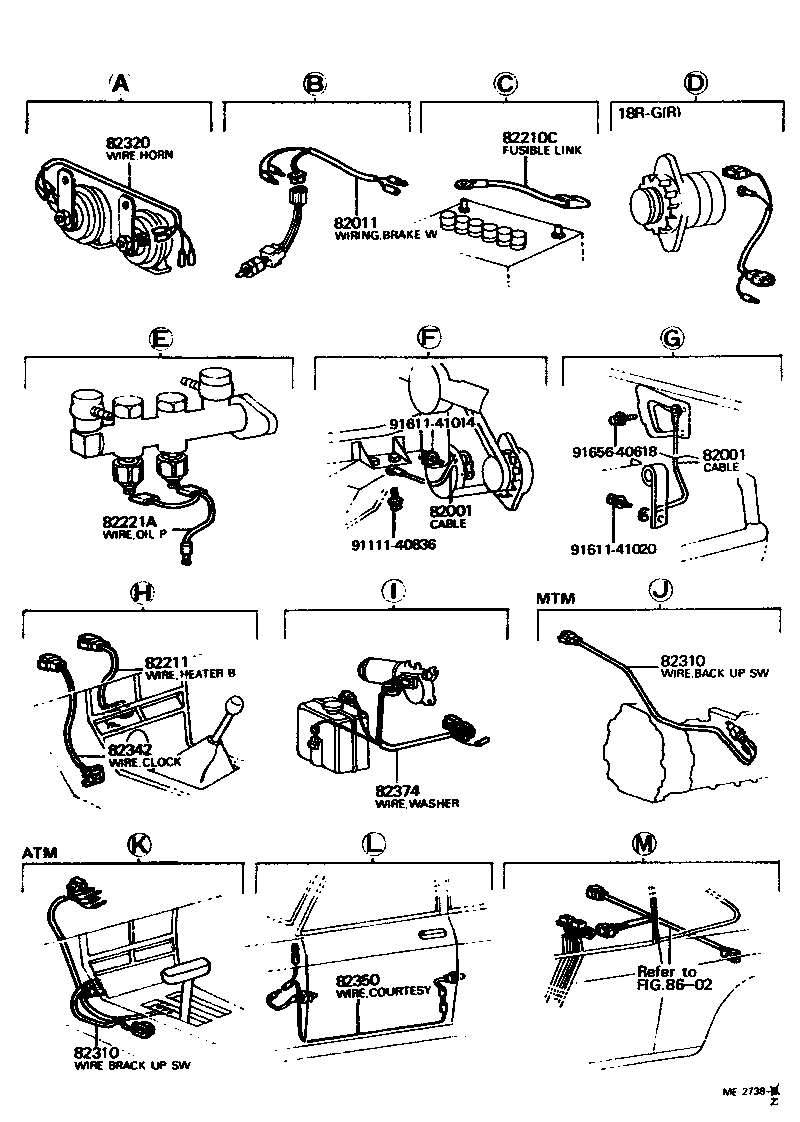

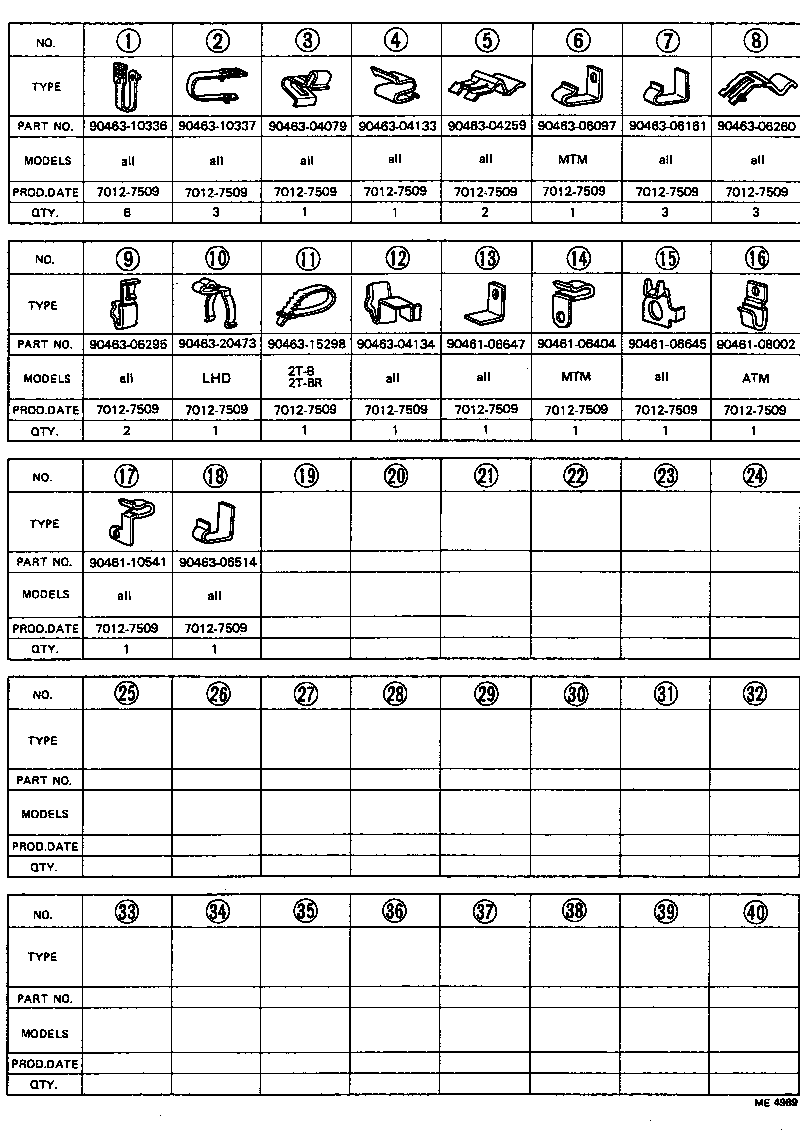

Figure ME2050C ME2050C 1970-12 → 1972-07 Figure ME4964C ME4964C 1972-08 → 1975-09 Figure ME4965 ME4965 1970-12 → 1975-09 Figure ME2738Z ME2738Z 1970-12 → 1975-09 Figure ME4969 ME4969 1970-12 → 1975-09 Figure ME4526B ME4526B 1975-10 → 1977-07 Figure ME4527B ME4527B 1975-10 → 1977-07 Figure ME4529Z ME4529Z 1975-10 → 1977-07 Figure ME4530C ME4530C 1975-10 → 1977-07

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82046 Wire Sub-assy, Rear Window Defogger Earth
82201 Wiring Sub-assy, Instrument Panel
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82211 Wire, Heater Blower Fan Switch
82214A Wire, Lamp
82215 Wire, Parking Brake Lamp Switch
82216 Wire, Rear Window Defogger
82220 Harness Assy, Wiring Cowl
82221A Wire, Oil Plessure (FOR TANDEM MASTER CYLINDER)
82301 Wire Sub-assy, Side Turn Signal Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82320 Wire Assy, TO Horn
82342 Wire, Clock
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82374 Wire, Washer
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82491 Plate, Wiring Harness Protector, NO.1
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
