Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

23 part groups · 6 illustrations

Illustrations

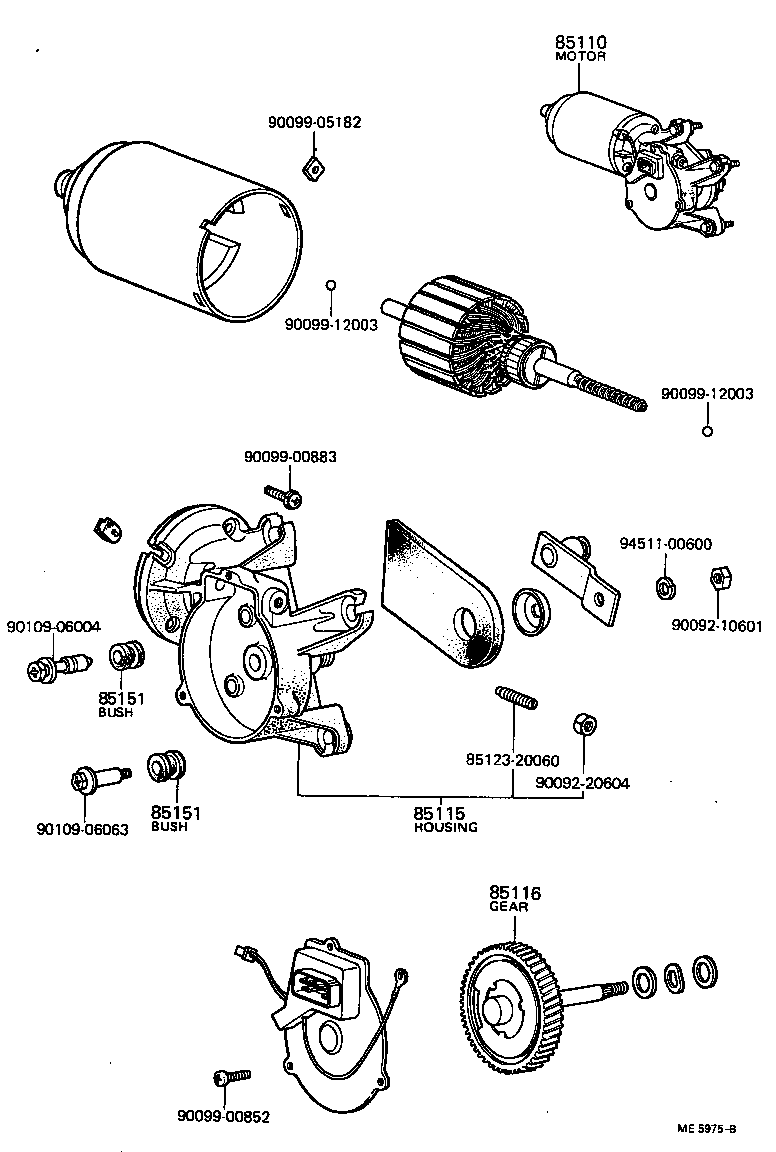

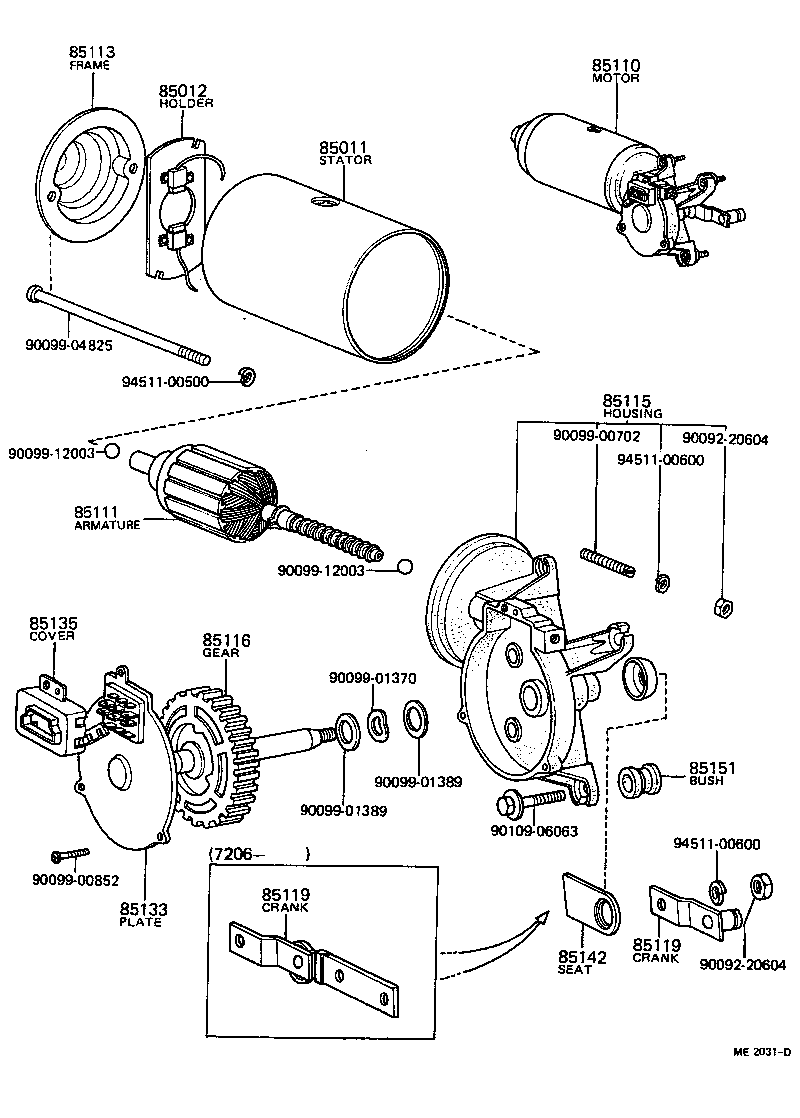

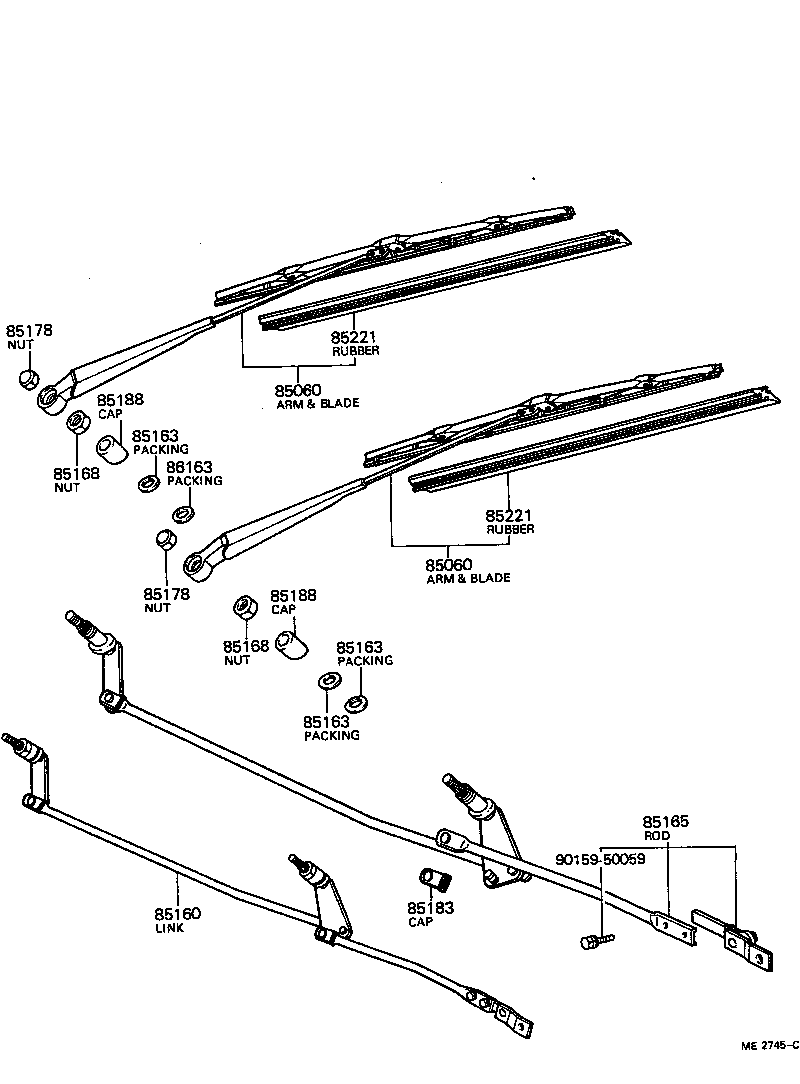

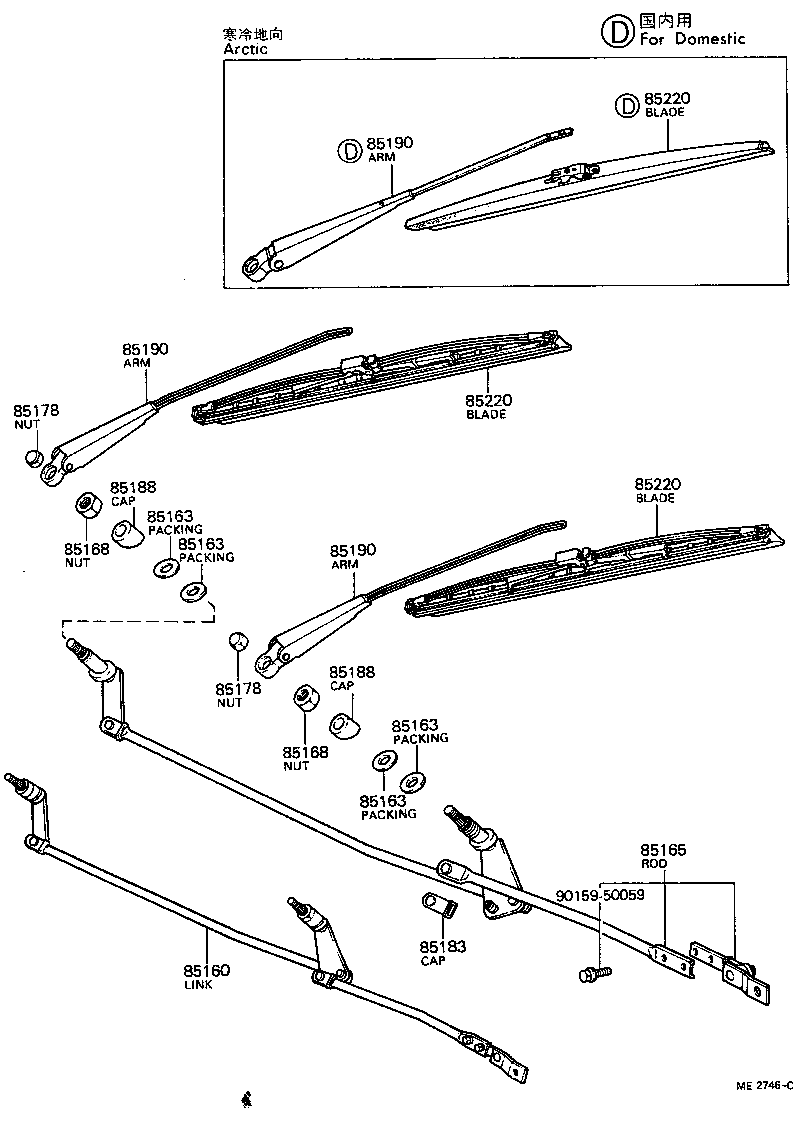

Figure ME4976B ME4976B 1970-12 → 1974-01 Figure ME2745C ME2745C 1974-01 → 1975-09 Figure ME2746C ME2746C 1972-08 → 1975-09 Figure ME5723B ME5723B 1975-10 → 1977-07 Figure ME2031D ME2031D 1970-12 → 1975-09 Figure ME5975B ME5975B 1975-10 → 1977-07

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85060 Arm And Blade Assy, Windshield Wiper
85110 Motor Assy, Windshield Wiper
85111 Armature, Windshield Wiper Motor
85113 Frame, Windshield Wiper Motor End
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85119 Crank, Windshield Wiper Motor
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85135 Cover, Terminal
85142 Seat, Windshield Wiper Motor Rubber
85151 Bush, Windshield Wiper Motor Gear Housing Cover
85160 Link Assy, Windshield Wiper
85163 Packing, Windshield Wiper Pivot
85165 Rod, Windshield Wiper Link W/Crank
85168 Nut, Windshield Wiper Link Pivot
85178 Nut (FOR FRONT WIPER ARM SETTING)
85183 Cap OR Rod, Windshield Wiper Shield
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
