Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 2 illustrations

Illustrations

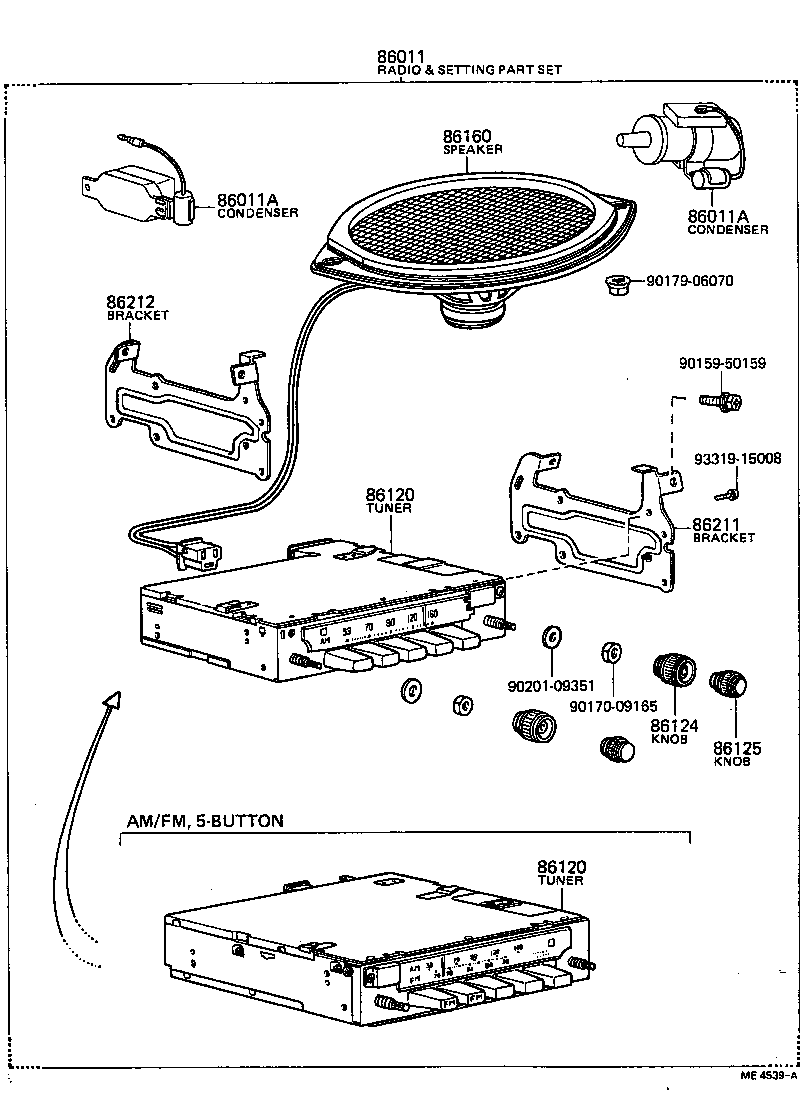

Figure ME3662B ME3662B 1970-12 → 1975-09 Figure ME4539A ME4539A 1975-10 → 1977-07

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86140 Radio Cartridge Assy, Tape Player (AM, FM STEREO PACK)
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
